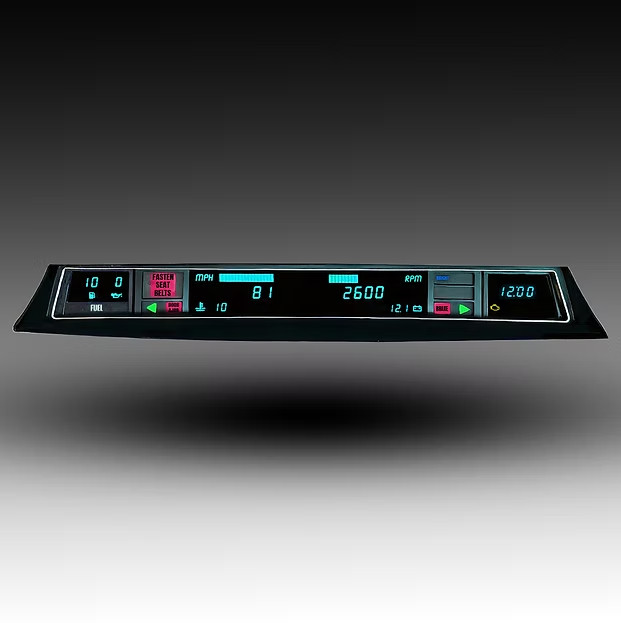

1971-1976Impala/Caprice LED Digital Panel
SKU: DP1210
(FACTORY BEZEL IS NOT INCLUDED--THAT PHOTO IS FOR DISPLAY PURPOSES). Kit is installed within your existing housing / bezel.This Digital Dash comes complete with direct fit printed circuit board, custom fit "smoked" Plexiglas face plate, universal temperature sending unit, oil pressure sending unit, and speedometer sending unit (sender/sensor), and instructions for installation. The Digital Dash works with your factory fuel level sending unit and cruise control sender or electronic transmission output if so equipped. Everything directly fits into your existing housing, but you will need to run some new wires to the speed sensor.
Speedometer
- High speed recall
- 0-60 MPH time
- 1/4 mile elapsed time recall
- Reads up to 255 MPH
- Odometer and trip meter
- Calibrate to adjust for different tire sizes, wheel sizes, and gear ratios
- Electronic GM speedometer sender included
Please Note: Unit comes standard with MPH speedometer andFahrenheit temperature.
KM/Celsius is available by simply making a buyers note at checkoutattached with your order stating that you need km/h and Celsius. The buyer’snotes are the section that many customers put make, model, year of vehicleetc... but it is also used to make special requests like LS or KM/H & Celsiusetc...
Tachometer
- Microprocessor controlled with peak rpm memory recall
- reads your RPM in 0-9900 in 100 RPM increments
- Works on 1-2-4-6-8-10-12-cylinder engines
*If using with an LS engine you may also need theIntellitronix LS swap kit (8014LS)
Fuel
- reads in percentage (empty-full) 0-100% range in 1% increments
- Ohm ranges include:
- GM 98+ 40 - 250 ohm
- GM 0 - 90 ohm
- GM 0 - 30 ohm
- Universal 240 - 33 ohm
Voltmeter
- Reads in .1-volt increments from 7.0 to 16.0 volts
- No sender needed
Oil Pressure
- Reads in 1 PSI increments from 00 to 99 PSI
- Comes with S8868 oil pressure sender
Water Temperature
- 10-355 Fahrenheit degree accuracy.
- Sending unit included
BEZEL NOT INCLUDED
Additional features:
- High Beam Indicator
- Check Engine Light
- Brake Indicator
- Seat belt indicator
- Turn Signals
- Nighttime dimming
- Clock
Optional add-ons:
GPS Speedometer Sending Unit (S9020): Accurate readingswith a simple 3-wire hookup. Works with 4000, 8000, or 16000 PPM speedometers.Use to bypass vehicle transmission or computer, picks up speed from satellitesignal
Universal Gauge Harness (QCWH20): 8' harnessincludes color-coded wires, quick-connects for easy removal, and all hardwareneeded for gauge wiring. Please note this does not plug into the factoryharness
LS Swap Kit (8014LS): Required for GM LS engines,includes 12mm & 16mm bushings and a 10K-1/2 watt resistor to boost tachsignal
If you have an LS engine, then please be aware that youmay need adapters (metric to nonmetric) for our sending units. You may have toobtain them elsewhere separately, though they may have been included with yourengine kit, so you may already have them. Also, your LS engine has a Tachoutput equivalent to a 4 cylinder instead of 8, please send a note to usletting us know, so that we can set the tachometer accordingly. The tachometeris programmable; you can set it yourself if it comes set differently.
They come with a Lifetime Guarantee and are made in the USA!Intellitronix panels were featured on Stacey David's Gearz TV show!If you're not 100% completely satisfied, then just arrange to send it back within the return period:)
If you have an LS engine, then please be aware that you may need adapters (metric to nonmetric) for our sending units. You may have to obtain them elsewhere separately, though they may have been included with your engine kit, so you may already have them. Also, if your LS engine is 4 cylinder, then please send a note to seller letting us know, so that we can set the tachometer accordingly. The tachometer is programmable, you can set it yourself if it comes set differently.Spruce up your great vehicle with an Intellitronix dash panel today!
