197D8523G101 GE Refrigerator Main Control Board Replacement Appliance Pro USA Genuine OEM Control Boards 🛡 1-Year Warranty ⚡ Same-Day Shipping ✅ FailSafe Certified™ ↩ 30-Day Returns 197D8523G101 GE Refrigerator Main Control Board Replacement 🛡 Genuine OEM ⚙ FailSafe Certified™ 🏆 1-Year Warranty ⚡ Ships Same Day What Is the 197D8523G101 GE Refrigerator Main Control Board?

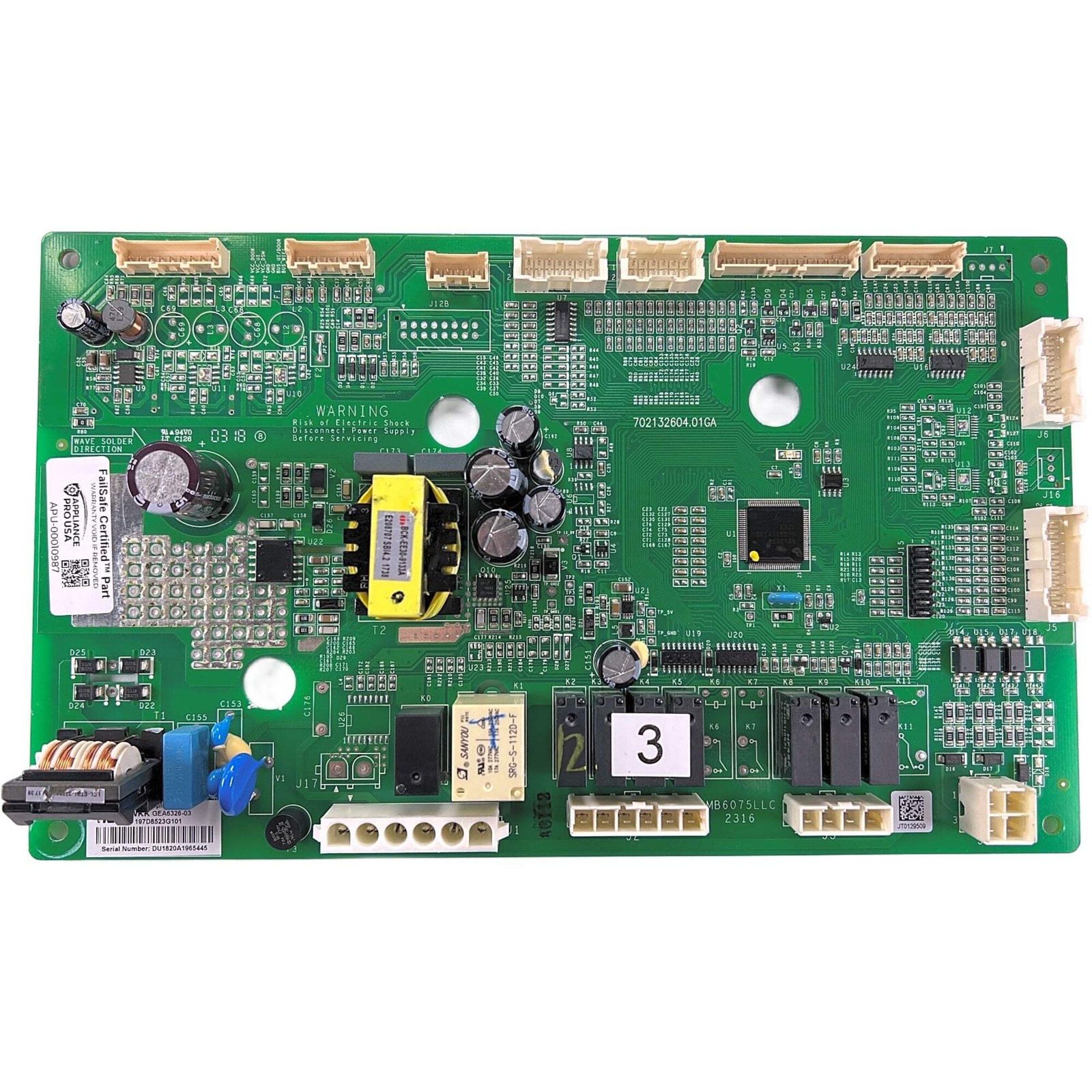

The 197D8523G101 is a genuine OEM GE refrigerator main control board assembly. It mounts at the back of the unit, behind the rear access panel, where it stays out of sight until it fails. A main control board of this type is the part that runs the compressor, the evaporator and condenser fans, and the defrost cycle, so when it goes bad you can see more than one symptom show up at the same time. Every 197D8523G101 sold by Appliance Pro USA is FailSafe Certified™ Reconditioned and backed by a 1-year warranty (registration required). We keep it physically in stock, so an order placed before 4:00 PM EST ships the same business day with tracking included.

What Problems Does This Board Fix?

If your GE refrigerator is showing any of the following, the main control board is worth checking first:

• One side of the refrigerator stops cooling while the other side keeps working
• Both the fresh food and freezer sections quit cooling at the same time
• A clicking or ticking sound repeats from the back of the cabinet every few minutes
• Ice builds up behind the freezer\'s rear panel because the defrost cycle stopped firing on schedule
• The compressor or the fans run nonstop and never cycle off, or never start at all
• The refrigerator goes completely dark and silent after a storm, a power blink, or a tripped breaker

These symptoms point to the main control board more often than not, but a refrigerator is a system built from several parts working together, and the same complaints can occasionally trace back to a thermistor, a door switch, a wiring harness, or the compressor itself. If a technician has already pointed to the control board, or you have ruled out the simpler causes on your own, this is the part to order. When you are not sure, reach out before you buy. A photo of your board and a quick description of what it is doing is usually enough for us to confirm the diagnosis.

How Do I Know If This Is the Right Board for My Refrigerator?

Match the production number printed on the sticker of your original board, not the model number stamped on the refrigerator itself. Unplug the unit, pull it away from the wall, and remove the small rear access panel to find the board. If the sticker reads 197D8523G101, that number is your answer and nothing else needs to line up.

If the sticker is worn, partially printed, or you just want a second set of eyes on it, contact us with a clear photo before you order. We will confirm it for you at no charge, usually the same business day.

Compatible Models

We do not have a verified model list for the 197D8523G101 to publish here. There is no catalog fitment data tying this production number to specific refrigerator models right now, and rather than guess or borrow a list from a similar board, we would rather tell you the truth: fitment for this part is decided by the sticker on your original board, not by a model number on a printed list.

Contact us with a clear photo of the sticker on the board you pulled out, along with your refrigerator\'s model number if you have it handy. We will check it against our records and confirm whether the 197D8523G101 is correct for your unit, free of charge and before you place an order.

Genuine OEM, FailSafe Certified™ Reconditioned

Every 197D8523G101 we sell starts life as a genuine OEM GE board and goes through our FailSafe Precision Protocol™ before it ever ships. This is a 4-step process built around what we have actually seen fail on boards like this one, not a generic once-over:

• Failure Pattern Analysis - We examine the board for the wear points and component stress that show up on boards of this type over time.
• Targeted Component Replacement - The parts that tend to give out first get replaced now, before they have a chance to strand you later.
• Proactive Rebuild Standard - High-failure components are swapped for new ones on every board we send out, whether or not that specific unit is showing a problem yet. Nothing marginal ships.
• Final Certification - Each board is tested and signed off against our internal FailSafe Precision Protocol™ standard for function before it leaves our shop.

Key Features

• Genuine OEM GE main control board assembly, not an aftermarket copy
• Known high-failure components replaced with new parts before the board ships
• Restores the compressor, fan, and defrost control functions a board of this type is responsible for
• Minor cosmetic wear may be present from prior service life; it does not affect how the board performs

Board Type and Function

This part is a main control board assembly, the electronic module that GE refrigerators rely on to keep the compressor, the evaporator and condenser fans, and the defrost cycle all working on schedule. A main control board of this type reads the system\'s temperature inputs and decides when the compressor should run, when the fans should turn, and when the defrost heater should fire. Because a single board covers all of those jobs, a fault on it can look like several unrelated problems at once instead of one obvious failure.

Common GE Refrigerator Error Codes

If your GE refrigerator is displaying an error code, the table below describes what it typically indicates. Codes marked ★ are most directly associated with main control board failure. Always verify the exact meaning in your model\'s owner\'s manual before ordering any part.

CodeWhat It Means★ HRSMain control board failure — system crashed or stuck in defrost. Most severe GE error★ CCCooling / compressor circuit fault — board cannot communicate with compressor★ EC / E0Communication error between main control board and user interface★ E4 / ErDefrost system error or temperature sensor fault — board-controlled cycleFFFreezer fan failure or freezer temperature too high for 2+ hoursdE / DFDefrost system not operating properly in last 24 hours (dE) or no defrost circuit current in 48 hours (DF)E2 / E3Evaporator fan (E2) or condenser fan (E3) communication errorCIIce maker fault — check for jammed ice, water supply, or ice maker assembly issuePFPower failure detected — press System Check button to clear. Not a board faulttC / tFTurbo Cool / Turbo Freeze active — normal function modes, not error codes

★ = Most directly associated with main control board failure

How to Install a GE Refrigerator Main Control Board

Most DIY-confident owners finish this swap in under 30 minutes with basic hand tools. Unplug the refrigerator first, then pull it far enough from the wall to reach the back, and remove the rear access panel. Before you unplug anything, take a photo of the wiring exactly as it sits, since that photo is what makes reassembly fast and error-free later. Touch the metal cabinet to discharge static before you handle the board, and consider a pair of 5-mil nitrile gloves while you work. Disconnect the old board, connect the new one exactly as your photo shows, close up the access panel, and restore power. Food usually stays cold enough through an install this quick, but moving perishables to a cooler with ice first is a smart precaution. Give the unit a few hours to pull back down to temperature before you judge whether the repair worked.

Shipping

Every 197D8523G101 we list is physically in stock. We do not drop ship. Orders placed before 4:00 PM EST go out the same business day, and tracking is provided on every order.

Warranty

This board is backed by a 1-year warranty from Appliance Pro USA; registration is required and the card ships in the box. If the board fails due to a defect within the warranty period, we will repair or replace it at no charge, though shipping fees may apply. Warranty coverage is determined at Appliance Pro USA\'s discretion. Boards that have been tampered with, or that arrive back with a verification sticker or hologram removed or damaged, are not eligible for warranty coverage. Damage from improper installation, electrical surges, or physical impact is not covered.

Returns

Returns are accepted within 30 days of purchase, and items must come back in their original condition. All returns are subject to deductions for original and return shipping costs. Opened or installed boards may carry a restocking and retesting fee, so compare the sticker before you open the anti-static bag. This fee is waived on exchanges, though reshipping costs and any price difference between products will still apply. Boards returned with physical damage, missing components, or signs of improper installation may not qualify for a full refund.

Important Installation Notes

This is not a universal control board. It is built as a direct replacement for the exact production number printed on your original board\'s sticker, so always match that number rather than assuming based on the refrigerator\'s model. A replacement board should match the one you removed in size and mounting; if what arrives looks meaningfully different from what came out, stop before installing it and send us photos of both boards, stickers included, so we can sort it out before you touch a connector.
