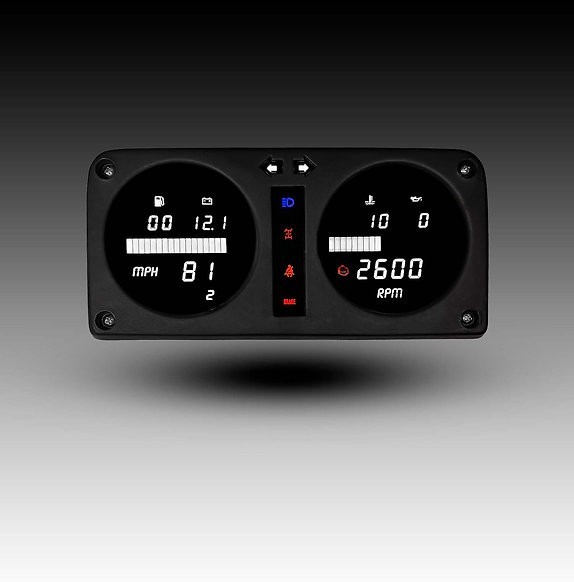

1980-1995 Suzuki Samurai WHITE LED Digital Gauge Panel Fits SJ410 / SJ413 DP1300 For Sale

Unit is single wire hook up and NOT PLUG &PLAY.

1980-1995 Suzuki Samurai LED Digital Gauge Panel Fits SJ410/ SJ413

SKU: DP1300

Features:

Fitment:

• SJ410
• SJ413

Speedometer

• High speed recall
• 0-60 MPH time
• 1/4 mile elapsed time recall
• Reads up to 255 MPH
• Odometer and trip meter
• Calibrateto adjust for different tire sizes, wheel sizes, and gear ratios
• GPS speedometer sensor (S9020) included

Tachometer

• Microprocessor controlled with peak rpm memory recall
• 0-9999 readout in 1, 10 or 100 RPM increments (ex. 9,900 , 9,990 , 9,999)
• Works on 1-2-4-6-8-10-12 cylinder engines
• Programmable red line (full bars is set at default of 6500 RPM)

*If using with an LS engine you may also need theIntellitronix LS swap kit (8014LS)

Fuel

• reads in percentage (empty-full) 0-100% range in 1% increments
• Ohm ranges include:
• 73-10
• 110-3
• 10-120
• 240-33

Voltmeter

• Reads in .1 volt increments from 7.0 to 16.0 volts
• No sender needed

Oil Pressure

• Reads in 1 PSI increments from 00 to 99 PSI
• Comes with S8868 oil pressure sender

Water Temperature

• 10-355 Fahrenheit degree accuracy.
• Sending unit included

BEZEL NOT INCLUDED

Additional features:

• High Beam Indicator
• Check Engine Light
• Brake Indicator
• Turn Signals
• 4x4 Indicator
• Seat Belt Indicator
• Nighttime dimming

Optional add ons:

Universal Gauge Harness (QCWH20): 8\' harness includescolor-coded wires, quick-connects for easy removal, and all hardware needed forgauge wiring. Please note this does not plug into the factory harness

LS Swap Kit (8014LS): Requiredfor GM LS engines,includes 12mm & 16mm bushings and a 10K-1/2 watt resistor to boost tachsignal

The panel kit comes with a Lifetime Guarantee and is made in the USA!Intellitronix panels were featured on Stacey David\'s Gearz TV show!If you\'re not 100% completely satisfied, then just arrange to send it back within the return periodIf you have an LS engine, then please be aware that you will need adapters (metric to nonmetric) for our sending units. We do not include or even sell those adapters, so you may have to obtain them elsewhere separately, though they may have been included with your engine kit, so you may already have them.Spruce up your great vehicle with an Intellitronix dash panel today!Questions are welcome! We generally work M-F 8 a.m. - 4 p.m. and try to answer questions within 1 or 2 business days. Please be patient as we answer questions in the order in which they are received. For technical matters, you should contact the manufacturer\'s technical support department directly, as we will just refer you to them anyway. More info can also be found at the Intellitronix website.***HOUSING/BEZEL NOT INCLUDED. THAT IS FOR DISPLAY PURPOSES ONLY***Visit our Store at
