19x24 Aluminum Radiator GM Chevy Style Universal 2 Row Crossflow Racing HD For Sale

ARC 4512401

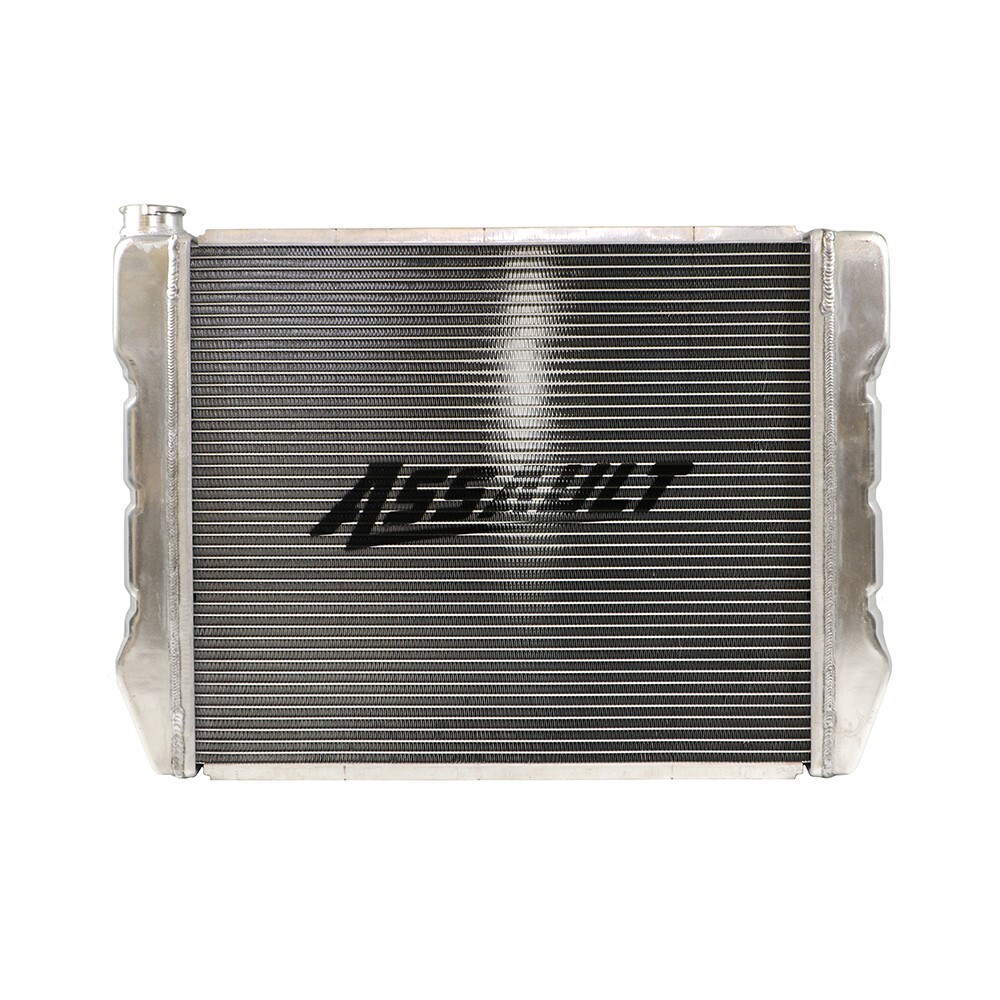

19" x 24" Universal GM-Style Aluminum Crossflow Radiator

Upgrade your cooling system with this heavy-duty all-aluminum crossflow radiator. Measuring 19" tall by 24" wide overall, this universal radiator features GM-style hose locations along with a high-efficiency 2-row core utilizing large 1" tubes and 17 fins per inch for excellent heat transfer.

The radiator is 100% TIG welded with no epoxy construction. Its lightweight aluminum design and high-capacity core make it an excellent choice for street performance, hot rods, race cars, engine swaps, and custom cooling applications.

Features:

• Heavy-duty all-aluminum construction

• 100% TIG welded – no epoxy

• Crossflow design for efficient cooling

• 2-row core with large 1" tubes

• 17 fins per inch

• GM-style radiator hose locations

• Upper driver's side connection

• Lower passenger-side connection

• Full-length C-channel mounting flanges

• Lightweight performance design

• Petcock included

• Suitable for street and racing applications

Product Type: Universal Performance Radiator

Mounting:

• C-channel style mounting flanges

• Flanges run along the top and bottom of the core

• Flange Width: Approximately 2-1/4"

• Flange Height: Approximately 1/2"

• Suitable for radiator and fan shroud mounting

Universal GM / Chevy-Style Cooling Systems

Package Includes:

• (1) 19" x 24" Aluminum Crossflow Radiator

• (1) Petcock

Cooling Benefits:

• Large 1" tubes provide increased coolant capacity

• Crossflow configuration promotes efficient heat transfer

• 17-fin-per-inch core provides substantial cooling surface area

• Designed for improved cooling compared with many conventional copper radiators

• Depending on the complete cooling system and application, suitable for many engines in the 500-600 HP range

Important Notes:

• This is a universal-fit radiator and does not have a specific vehicle application

• Radiator cap is not included

• Built-in automatic transmission cooler is not included

• Automatic transmission applications will require a separate external transmission cooler

Compatibility Note: Features GM-style hose locations with a 1-1/2" upper driver's side connection and 1-3/4" lower passenger-side connection. Please verify the 19" x 24" overall dimensions, hose locations, mounting configuration, and available vehicle clearance before purchasing.
