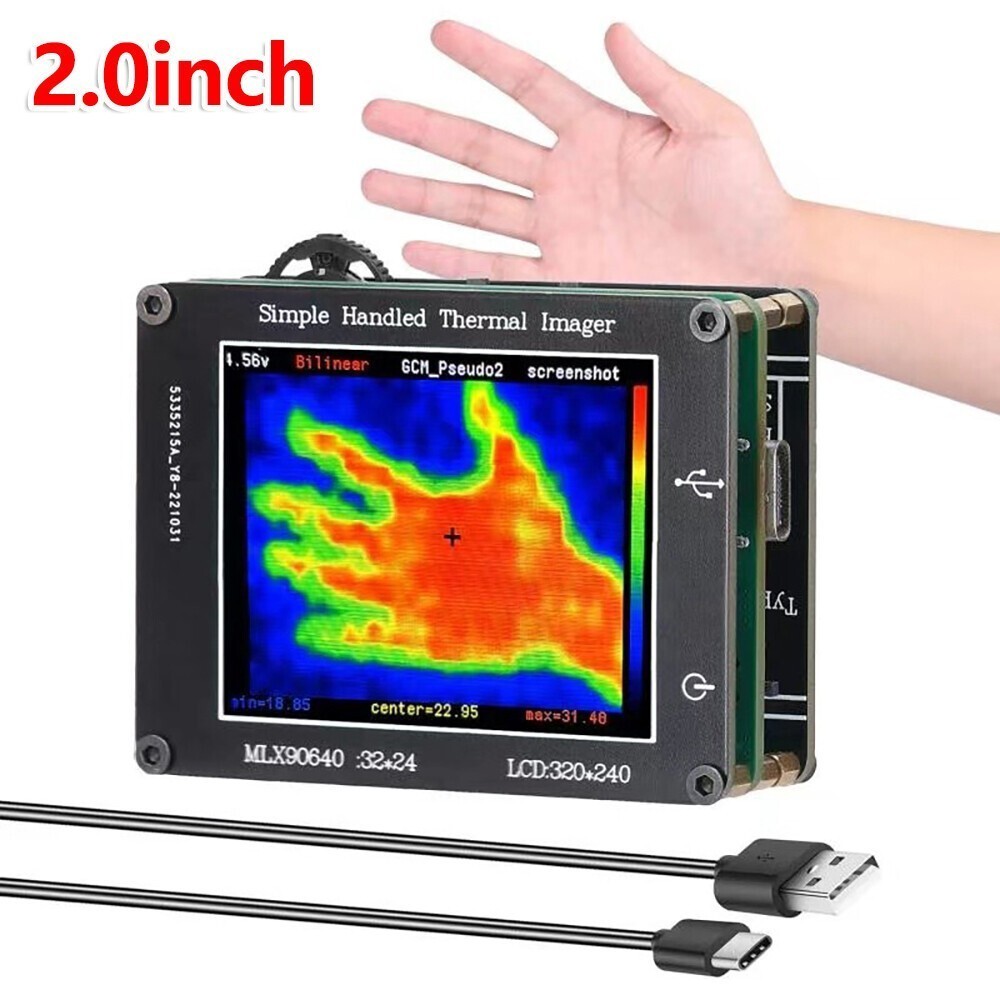

1X Handheld Digital Infrared Thermal Temperature Imager Camera Heating -40℃-300℃ For Sale

2" LCD:

This handheld and multifunctional features a compact size and is lightweight. Adopt infrared , 32*24 pixel far infrared array, clearly imaging. 2.0 inch large LCD color screen, with 240*320 resolution, clearly displays and tracks the maximum , the minimum , and the center point . It can be used in various situations and is an indispensable tool for household and industrial use.

Features:

This product combines the functions of surface and real- thermal imaging, suitable for contactless , human detection function, ambient detection, industry parts detection function.

With integrated design, compact, lightweight, and portable, it is easy to carry and does not take up too much space, it can operate smoothly without external devices.

Its uses FR4 epoxy outershell material for better protecting internal component and has a long service lifespan.

Adopts a high sensitive infrared , 32*24 pixel far infrared array, clearly imaging.

2.0 inch large LCD color screen, with 240*320 resolution, clearly displays and tracks the maximum , the minimum , and the center point .

Real- measurement, with -40℃ to +300℃ measurement ranges, and an 8Hz dynamic refresh rate.

Equipped with USB U-disk function, and the capacity of U-disk is 16MB.

This has a photo-taking function, for which need to maintain at least 15S .

Built-in a lithium-ion , USB Type-C cable design, with long lifespan.

Wide Applications:

High-precise contactless and body detection.

Intelligent ambient and control of buildings.

Car repairs and maintenance inspection, automotive parts detection.

Microwave oven and oven detection and control.

monitoring of industrial parts.

Visual sensors.

Floor heating equipment side leakage and maintenance.

Thermal inspection of circuit board and component.

Specifications:

• Materials: epoxy sheet + printed circuit board
• Power Supply: 1 * 3.7V, 600mAh lithium-ion (included)
• Infrared : MLX90640ESF-BAB
• Hardware resolution: 32*24 pixel far infrared array
• Display: 2.0inch LCD display
• Screen resolution: 240*320 pixels
• : -40℃ to 300℃
• Measurement accuracy: ±2℃
• Refresh rate: 8Hz
• Field of view: 55° horizontal * 35° vertical
• interface: Type-C
• USB U-disk capacity: 16MB
• Item size: 62 * 50 * 20mm / 2.44 * 1.97 * 0.79in
• Item weight: 70g / 2.47ounce
• Package size: 110 * 80 * 50mm / 4.33 * 3.151 * 1.97in
• Package weight: 80g / 2.82ounce

Packing List:

1 x thermal imager

1 x USB Type-C

2.8" LCD:

It has the characteristics of small size and light weight.

With a 2.8TFT display, the data is clear at a glance. It can be used in many occasions and is an indispensable tool for home and industrial use.

This device adopts an integrated design and can work without external devices. The screen display parameters are shown in the figure below

• Taking pictures: In the power-on state, single press the camera/reset button to save the current image.
• View or copy images: After connecting to the computer with a USB-C data cable, press the mode switch button to switch to the U disk mode to read or copy images.
• Reset: The body can store 99 images. When the storage is full, press and hold the camera/reset button until the screen flickers and release it. The device will reset and return to the initial state after about 15 seconds.
• Note: This device is powered by a 3.7v lithium battery. It is recommended to keep the battery power display at about 50% before not using it for a long time

Feature:

• 1. Measuring range -40°C to +300°C, 8Hz dynamic refresh rate
• 2.2.8 inch The screen resolution is 320*240; the screen can display and track the highest temperature, the lowest temperature and the central point temperature
• 3. The shell is made of FR4 epoxy sheet, which better protects the internal components and has a long service life
• 4. Small size, easy to carry
• 5. Li-ion battery powered. USB-C charging; up to 4 hours of battery life. Can be used while charging
• 6. Built-in SPI Flash chip, which can store 100 pictures. View and copy image files by connecting to a computer or mobile phone via a data cable
• 7. Integrated design, no external equipment required

Specification:

1. Material: epoxy resin board + printed circuit board
2. Infrared sensor: MLX90640ESF-BAB
3. Hardware resolution: 32*24 pixel far infrared array
4. Screen resolution: 320°240 pixels
5. Temperature measurement range: -40°C to 300°C
6. Measurement accuracy: ±2°C
7. Working temperature: 0 to 50°C
8. Working humidity:≦70%
9. Refresh rate: 8Hz
10. Field of view: horizontal 55° x vertical 35
11. Emissivity: 0.95
12. Charging specification: USB Type-C5V/1A
13. Product size: 85*55*30mm
14. Battery: 3.7V 600mAh lithium-ion battery
15. Working hours: ≥4 hours
16. Item size: 85 * 55 * 30mm / 3.35 * 2.17 * 1.18in
17. Package weight: 150g / 5.29ounce

Packing List:

1 x thermal imager

1 x USB Type-C

3.2" LCD:

Feature:

1. 7 IN 1: The thermal imager integrates non contact temperature measurement, human body, environment, industrial parts temperature detection, temperature difference, visual temperature and heating device display.

2. WIDE RANGE: The temperature measurement range of the thermal imager is ‑40℃ to +300℃, and has a dynamic refresh rate of 8Hz.

3. MULTI FUNCTIONS: Built in SPI Flash chip, can store 100 pictures. View and copy image files by connecting computer or mobile phone via data cable.

4. RELIABLE MATERIAL: The shell is made of FR4 epoxy sheet, which can better protect the internal components and has a long service life.

5. COMPACT SIZE: The infrared thermal imager is compact in size and easy to carry around, convenient for work, with 3.2 inch scree, clear and intuitive.

Specification:

Item Type: Thermal Imager

Material: Epoxy Resin Board, Printed Circuit Board

Sensor Model: MLX90640ESF BAB

Sensor Resolution: 24 x 32 infrared display

LCD Display Resolution: 240 x 320, 3.2 inch screen

Display Mode: Interpolation simulation display

Measurement Range: -40℃ to 300℃

Measurement Accuracy: ±2℃

Refresh Speed: 8HZ

Market Angle: 55° horizontally, 35° vertically

Features:

1. USB analog USB disk function, USB disk capacity: 16MB

2. Picture taking function (need to maintain at least 15S)

3. TYPE C standard interface, built in 3.7V 600mAH lithium ion battery (built in)

4. Internal reading or deletion of pictures can be realized without computer assistance

Seven Functions:

1. Non contact temperature measurement

2. Human body temperature detection

3. Ambient temperature detection

4. Temperature detection of industrial parts

5. Temperature difference display

6. Visual temperature display

7. Heating device display

Package List:

1 x Thermal Imager

1 x Charging Cable

1 x Lens Wipe Cloth
