Excellent for Commercial Painting or Situations where a large amount of spraying is required. The Spray Pot gives you the benefit of storing a large volume of paint that can be applied rapidly, saving you time and money.
Can be used with a broad range of coatings like automotive, oil based, latex, varnishes, lacquers, primers, wood coatings, adhesives and more!

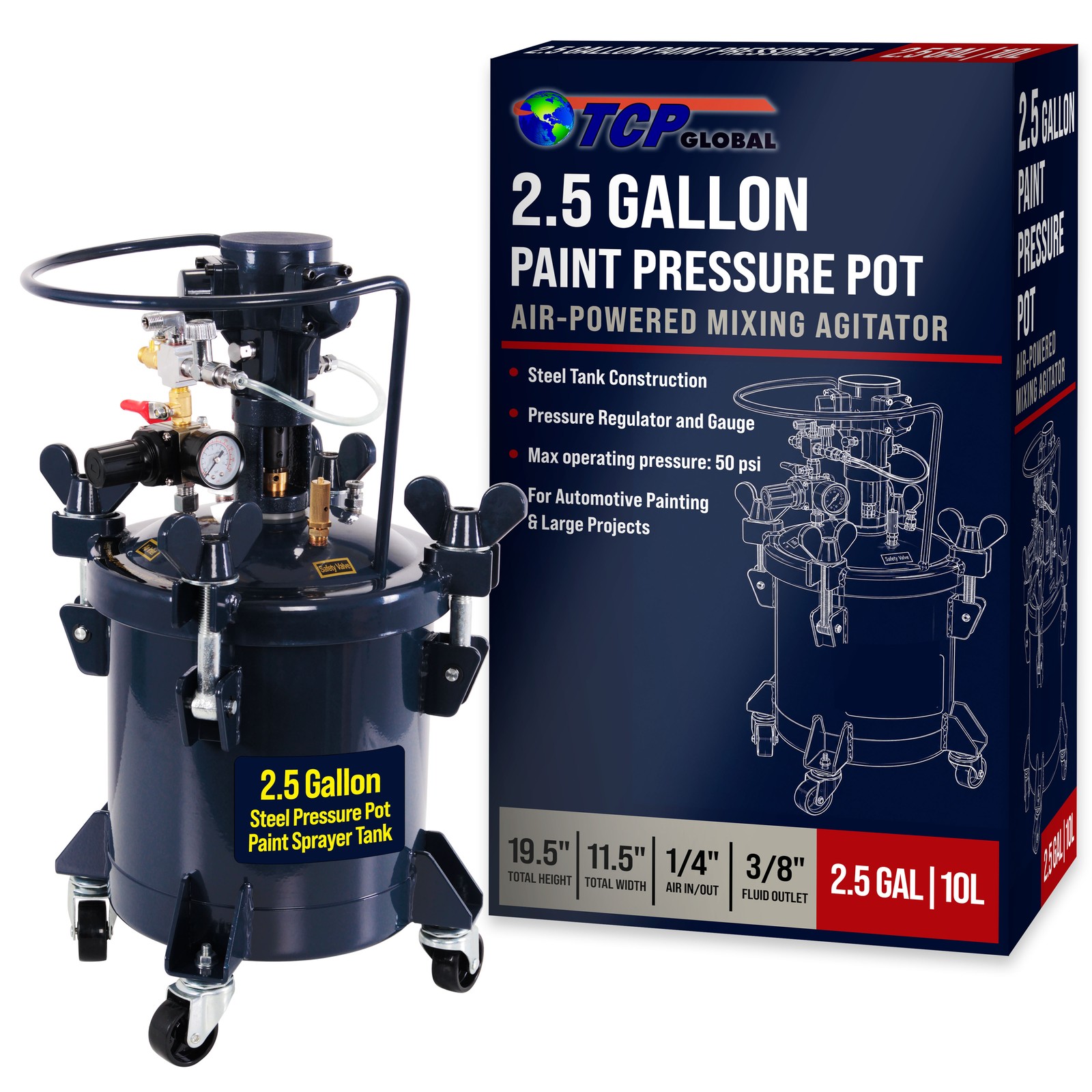

Part# TCP PT8320 2.5 Gallon (10 Liter) Heavy Duty Steel Pressure Pot Paint Tank with Air Powered Mixing Agitator, Clamp on Lid, Regulator & Pressure Gauge for
- Durable Build & Capacity: A 2-1/2 gallon (10-liter) tank made from easy-to-clean powder-coated solid steel. Provides durability and reliability for rigorous use in painting and autobody work.
- Fluid Pressure Control: A fluid pressure regulator with an accurate gauge allows for precise pressure control. Tank gauge from 0-100 psi; a recommended working pressure of 20-30 psi; max operating pressure: 50 psi.
- Air Agitator & Secure Lid: Features a clamp-on lid with an air-powered mixing agitator and adjustable speed control for thorough blending of paints and coatings. Air inlet/outlet: 1/4\"; Fluid outlet: 3/8\".
- Large-Volume Tasks: Designed for high-volume painting tasks and commercial projects. This pot is well-suited for any situation requiring a large amount of spraying.
- Broad Coating Compatibility: Works with a wide range of coatings including automotive, oil-based, latex, varnishes, lacquers, primers, and adhesives. The inside dimensions are 9.5\" in diameter and 9.5\" in depth.
Heavy Duty 2.5 Gallon Pressure Pot Tank Specifications:
- Paint pot capacity: 2.5 Gallons (10 Liters)
- Powder coated tank finish that is easy to clean
- Clamp on lid (4 clamps) with an air tight sealing gasket
- Double output regulation
- Tank fluid pressure gauge from 0 to 100 psi (0 to 7 bar)
- Working pressure: Optimal 20-30 psi (1.4 to 2.1 bar); Max operating pressure: 50 psi
- Air inlet and outlet: 1/4\" Fluid outlet: 3/8\"
- Air pressure relief valve for safety set at 60 psi (4.0 bar)
- Air powered mixing agitator with adjustable speed control
- Overall dimensions: 25\" H x 14\" W x 11\" D (635 x 350 x 280 mm)
- Inside diameter: 9.5\" (241 mm); Inside depth: 9.5\" (241 mm)
- 4 Easy roll casters and a wide base for increased stability (castors removable)
- Fluid pickup tube has stainless filter screen
- Shut off ball valves on fluid and air outlets
- Items that can be used in the pot: 2.5 gallon tank liners, Devilbiss or Binks part# PT-52 (2.7 gallon tank liners), 1 gallon paint cans, paint buckets that are under 2.5 gallons.
- Weight: 45 lbs.
- Includes instruction manual
- One year warranty
