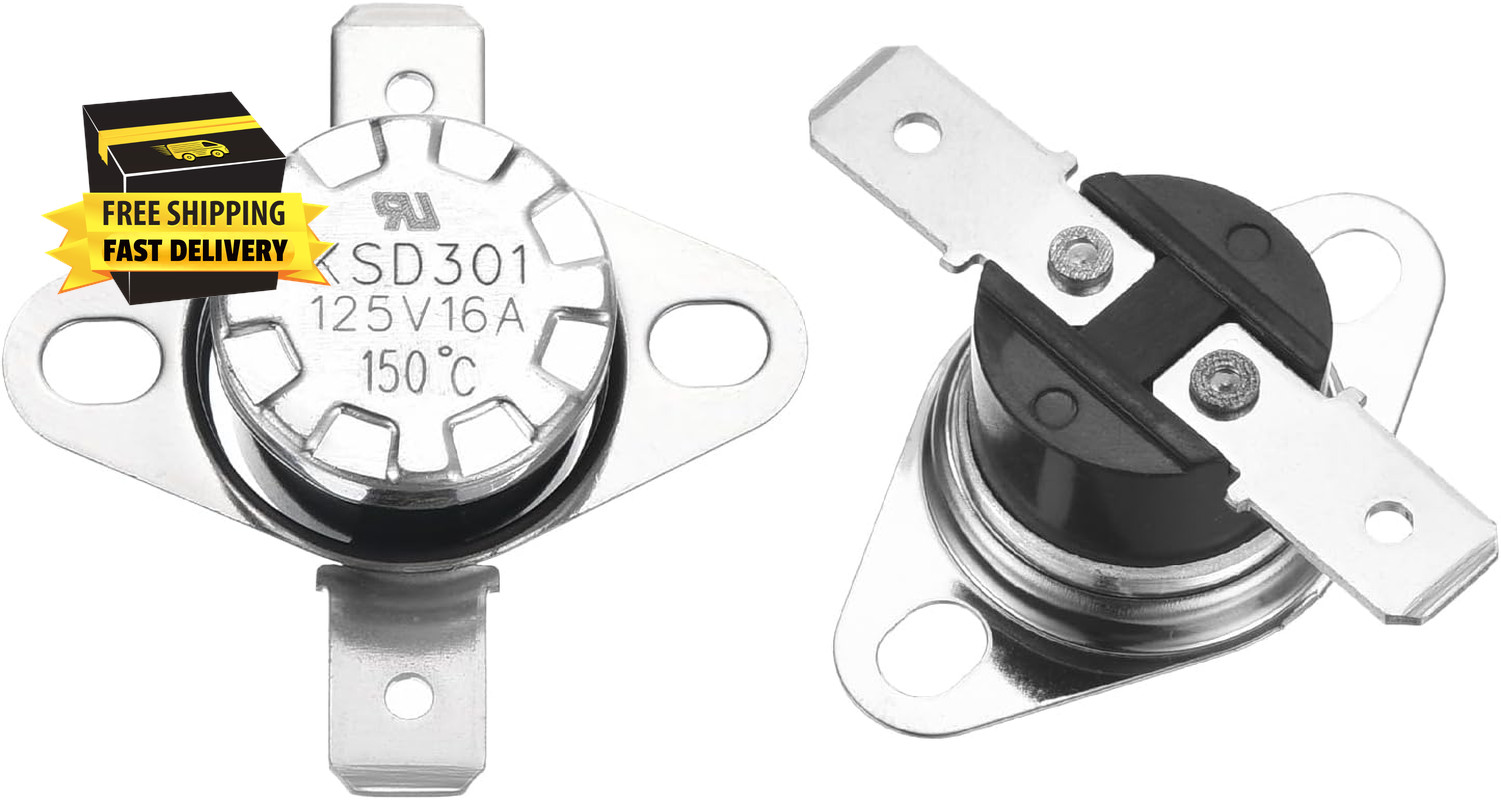

2Pcs KSD301 Thermostat 150°C/302°F 16A Normally Closed N.C Adjust Snap Disc Temperature Switch for Microwaves,Oven,Coffee Maker,Bakelite Material Style 150°C/302°F Current Rating 16 Amps Number of Items 4 Control Method Touch Terminal Through Hole Operating Voltage 125 Volts (AC) Number of Positions 2 Unit Count 4.0 Lower Temperature Rating 1.5E+2 Degrees Celsius Circuit Type 1-way Package Dimensions 3.5 x 2.4 x 0.59 inches Connector Type Pin Item Weight 0.352 ounces Mounting Type Flush Mount Color Silver Wattage 2E+3 Operation Mode automatic Actuator Type Temperature Sensitive Contact Type Normally Closed Contact Material Metal
- Type: KSD301 150 degrees Celsius Thermal Control Switch 125V 16A NC (Normal Close)
- Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.
- Advantage: Double metal chip, speed dynamic type, sensitive, reliable, stable action temperature, long service life, no arc phenomenon.
- Easy to installation : The flange on the switch is float and easy to installation.The pin width is 6.3mm
- Application: Mainly used for microwave,oven,coffee maker,Speed Cook oven,heater,Dryer,gas furnace,Bath Vent/Heater,wall heater,motor electric heating water dispenser, water bottles, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, motor cleaner
Product description
Specification:
Product Name : Temperature Control Switch
Model: KSD301
Action Temperature: 150°C/302°F
Action Type: N.C (Normally Closed)
Rated Voltage/Current : 125V/16A
Pin Width : 6.3mm/0.25inch
Contact Life: More than 50,000 times (action times)
Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon
Package Content :
2 x Temperature Control Switch
Description :
1.Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.
2.Feature: Double metal chip, contact sensor, speed dynamic type, sensitive, reliable, safe, stable action temperature, long service life, no arc phenomenon.
3.Advantage: General purpose, automatic reset, low cost, large capacity, minute current thermostats.
4.Function: It is closed until the temperature reaches 130 Celsius degree, then the switch opens. Widely used for temperature control or protection for household electric appliances.
5.Application: Mainly used for microwave,oven,electric smoker,coffee maker,speed cook oven,heater,dryer,,gas furnace,bath vent heater,wall heater,motor electric heating water dispenser, water bottles, cabinet, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, ,motor cleaner
