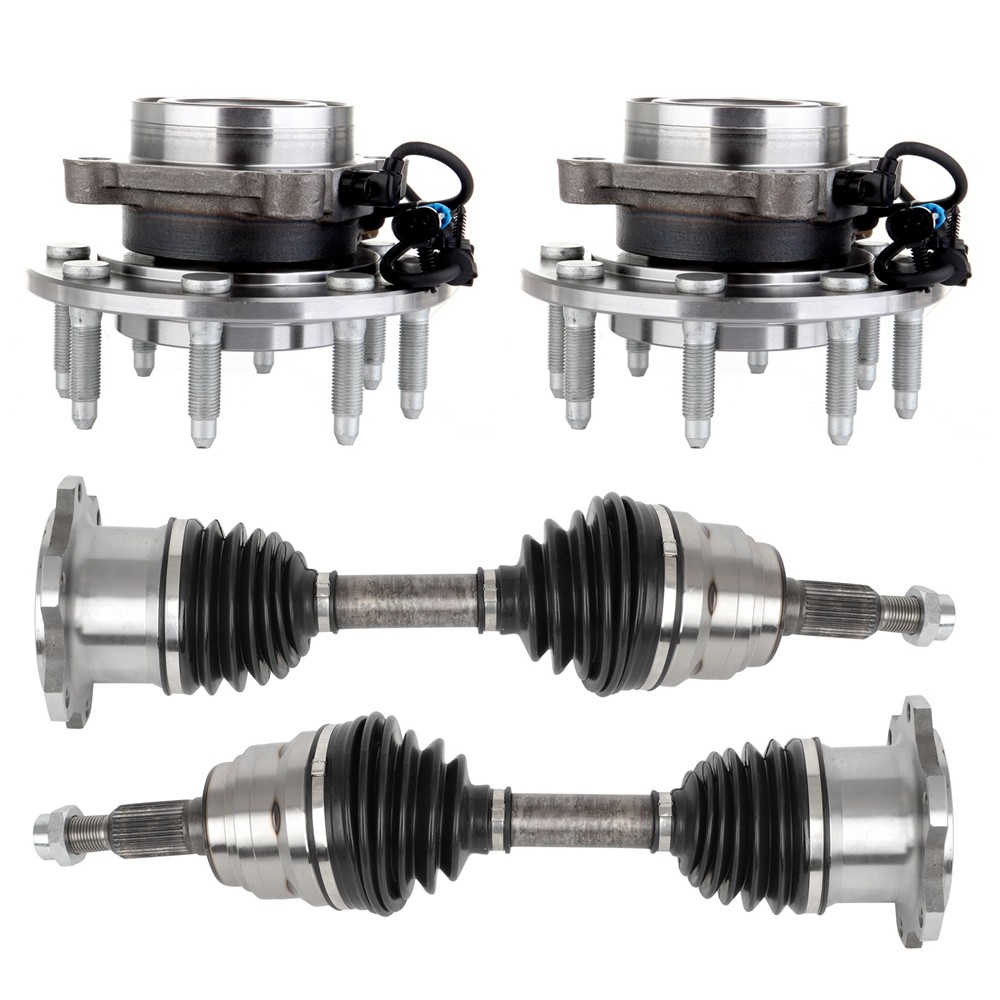

2x CV Axle + 2x Wheel Hub Bearing Front 4WD For Chevy Silverado 2500HD 2001-2006 For Sale

Welcome to our store!

To avoid you buying the wrong parts, DO CHECK the compatible chart above before placing order.

• Choose a vehicle from the "My Garage" list. Or

• Enter your vehicle's details withYear / Make / Model / Trim / Engine.Or

• Contact us: Ask us for double check.

  Chevrolet Avalanche 2500 2002-2006 8.1L
  For Chevrolet Silverado 1500 2001 4.3L/4.8L/5.3L
  For Chevrolet Silverado 1500 HD 2001-2003/2005-2006 6.0L
  For Chevrolet Silverado 2500 1999-2004 5.3L/5.7L/6.0L
  For Chevrolet Silverado 2500 HD 2001-2007 6.0L/6.6L/8.1L
  For Chevrolet Silverado 3500 2001-2006 5.7L/6.0L/6.6L/8.1L
  For Chevrolet Suburban 2500 2000-2006 6.0L/8.1L
  For GMC Sierra 1500 HD 2001-2003/2005-2006 6.0L
  For GMC Sierra 2500 1999-2004 5.3L/6.0L
  For GMC Sierra 2500 HD 2001-2006 6.0L/6.6L/8.1L
  For GMC Sierra 3500 2001-2006 6.0L/6.6L/8.1L
  For GMC Yukon XL 2500 2000-2006 6.0L/8.1L
  For Hummer H2 2003-2007 6.0L

  Placement on Included:

  2pcs of Wheel Hub Bearings & 2pcs of CV Axles Shaft

  Removal

  • Remove the bolt securing the front wheel speed sensor, then separate the sensor from the steering knuckle.
  • Remove the brake caliper torque member bolts, keeping the brake hose connected. Use a piece of wire to hang the caliper in a safe position to avoid damage or hose tension.
  • Mark alignment indicators on both the disc brake rotor and the wheel hub and bearing for reinstallation reference, then remove the disc brake rotor.
  • Remove the cotter pin and the nut retainer from the wheel hub lock nut. Use a power tool to loosen the wheel hub lock nut on the drive shaft.
  • Place a piece of wood against the lock nut and tap it gently with a suitable tool to help disengage the drive shaft from the wheel hub and bearing.
  • Remove the engine side cover to access related components.
  • Remove the lower nut and bolt from the steering knuckle, then separate the transverse link from the knuckle.
  • Fully separate the drive shaft from the wheel hub and bearing assembly, then secure the drive shaft aside with wire to prevent damage.
  • Use a power tool to remove the bolts that secure the wheel hub and bearing to the steering knuckle.
  • Remove the splash guard, then pull the wheel hub and bearing assembly off the steering
  • Clean the mating surfaces of the steering knuckle and the new wheel hub and bearing. Apply lubricant to the specified surface of the joint sub-assembly.
  • Install the splash guard and the new wheel hub and bearing assembly onto the steering knuckle.
  • Install and hand-tighten the wheel hub and bearing bolts, then torque them to the manufacturer’s specification.
  • Reposition the drive shaft into the wheel hub and bearing. Use a piece of wood and a suitable tool to tap the lock nut area to seat the drive shaft properly. Secure the drive shaft in place.
  • Install the transverse link to the steering knuckle, then reinstall and torque the lower nut and bolt to specification.
  • Reinstall the engine side cover.
  • Install the wheel hub lock nut onto the drive shaft. Hold the wheel hub and bearing with a suitable tool, then use a torque wrench to tighten the lock nut to the specified torque. Do not use power tools for final tightening.
  • Install a new nut retainer and a new cotter pin. Securely bend the cotter pin to prevent rattling.
  • Align the matching marks on the disc brake rotor with those on the wheel hub and bearing, then install the disc brake rotor.
  • Reposition the brake caliper, then install and torque the brake caliper torque member bolts to specification.
  • Reconnect the front wheel speed sensor to the steering knuckle and secure it with the bolt.
  • Reinstall the wheel assembly, then torque the lug nuts in a star pattern to specification.
  • Lower the vehicle to the ground, then perform a road test to check for noise, vibration, and proper brake/ABS function.

  Notice:
  Please check the model and important parameters before purchase to avoid unnecessary after-sales problems, if you are not clear, please feel free to contact us, thank you for your cooperation!

  Item SpecificsUPC Does not applyBrand VaultProManufacturer Part Number 13918227Manufacturer Warranty 1 YearType Wheel Hub & Bearing AssemblyFinish Polished, Rust ProtectedMaterial SteelFitment type Direct ReplacementPlacement on Vehicle FrontPerformance Part YesUniversal Fitment NoVintage Car Part NoItems Included 2pcs of Wheel Hub Bearings & 2pcs of CV Axles ShaftInterchange Part Number 15042868, 15104582, 15112411, 15225770, 15719015, 89059059OE/OEM Part Number 515058Fitment Note 4WD Models OnlyAnti-lock Braking System YesBolt Pattern 8 x 6.5 in (8 x 165.1 mm)Wheel Hub Bearing Spline Quantity 33Bolt Circle Diameter 6.5 in. / 165.1 mmBrake Pilot Diameter 4.64 in. / 117.8 mmHub Pilot Diameter 4.17 in. / 105.8 mmWheel Pilot Diameter 4.59 in. / 116.7 mmFlange Bolt Hole Quantity 4Flange Bolt Size M14x1.5Flange Bolts Included NoWheel Stud Quantity 8Wheel Stud Size M14x1.5Wheel Studs Included YesInput Shaft Connection Style Bolt-On 6 HolesOutput Shaft Spline Count 33Axle Nut Hex Size 1.18 in / 30 mmSpindle Nut Thread Size M24X2.0Axle Nut Locking Type Self LockCompressed Length 21 11/16 in.Superseded Part Number 66-1325 , 60-1325, 15868120, 20875738, 26069242
