We are the only authorized retailer for \"CNLINKO\" brandconnector products, with complete warranty.

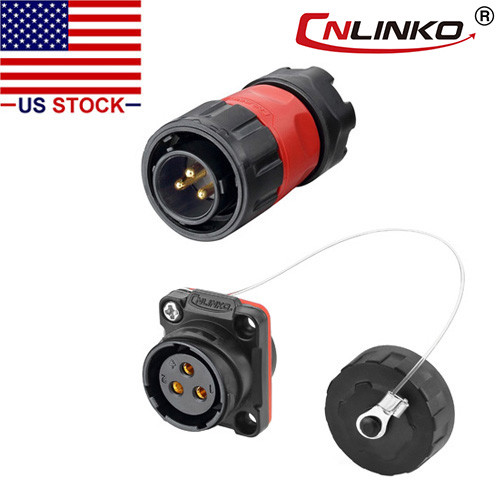

Selling ItemsModel YM-20-J03SX-02-401
Features:
● 3 cores, in line with the diversity of industrial demand, signal and power compatible match● PBT material of the protective housing, with characters of fire safety, compression, anti-explosion and anti-deformation● Gold-plated contacts, high-strength corrosion resistance and electrical conductivity, effective response to temperature changes in current● 1/4 Quick bayonet coupling, simple operation, easy installation● Dustproof cover design under off-working condition● 20A rms current rating● Protection level:IP67
Specification:
Cable specification2.5m㎡～4m㎡/14-12 AWGDiameter rangeΦ8mm～Φ12mmContact diameter × numberΦ2.7x3Rated Current (A)20AOperating voltage (AC.V.rms)500VContact resistance<1mΩTemperature rise20A contact temperature below 30℃,25A Voltage (AC.V) 1 minute2500VInsulation resistance＞500MΩProtection levelIP67Durability≥500 timesWorking temperature-40℃～80℃Connecting mode1/4 bayonet connectAssembly wireSolderHousing, the insulating partsHigh-performance engineering plasticsHardwareZinc Alloy (pearl hard chrome)Copper needlesCopper alloy (gold-plated 4U)Waterproof circleSilica gelFlammability ratingUL94-V0
YM-20 Series Specification Sheet
