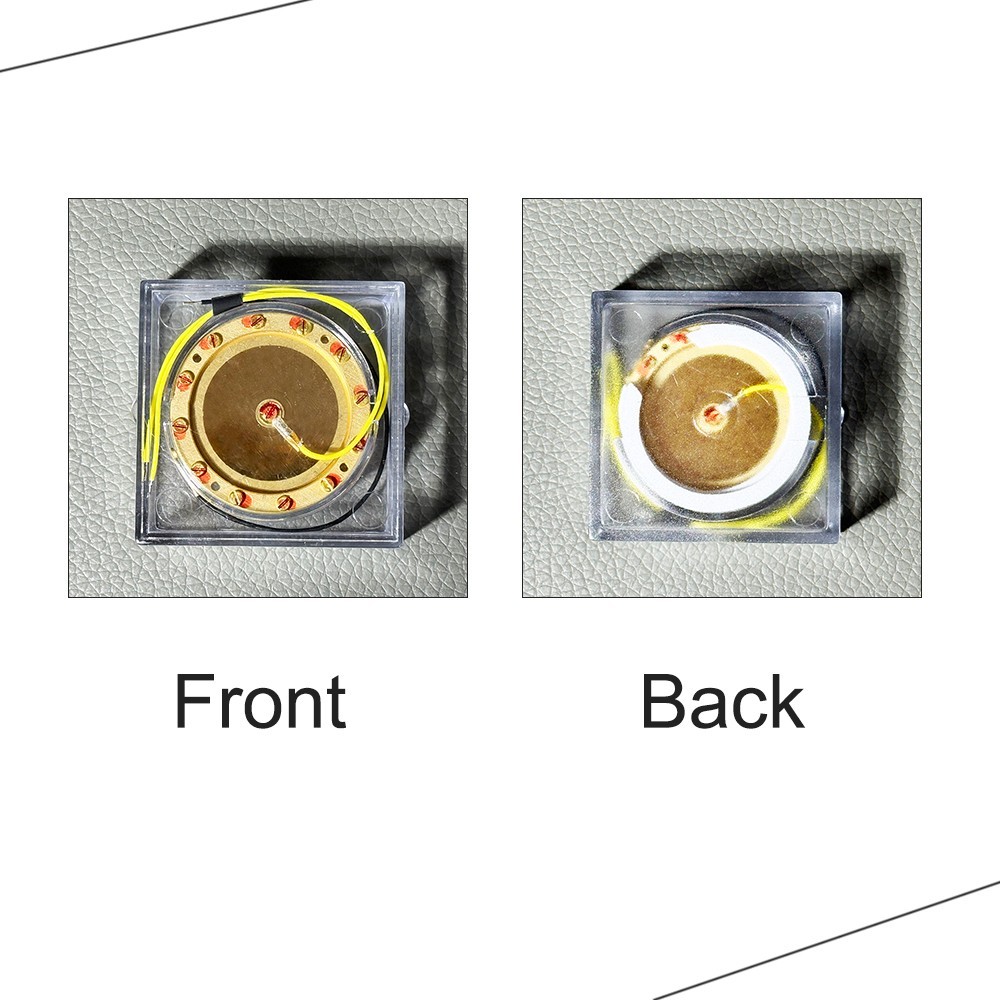

TheK47 capsulewas developed for condenser microphones, it was createdin the 60’s, to replace the M7 capsule which had a plastic diaphragm and therefore a relatively fast wear.
Details of K47 Capsule :
Brand: MAIao
Capsule diameter:34 mm (Double sides)
Diaphragm diameter:24 mm
Capsule thickness (with screws):10,5 mm
Polar Patter:Cardioid, Figure 8, Omni
Sensitivity:-35dB (0 dB=1V/Pa &1KHz）
packing : 1pc capsule
Frequency Response:20Hz∽20KHz
Max SPL:132dB &1KHz=1% THD
Power Supply recommended:Min 48V±5V (Max: 60V)
Membrane composition:Double Gold plated 6 micron mylar
Used Temperature：+5℃∽+35℃ Humidity：›60%
Saved Temperature：-10℃∽+35℃ Humidity：›60%
