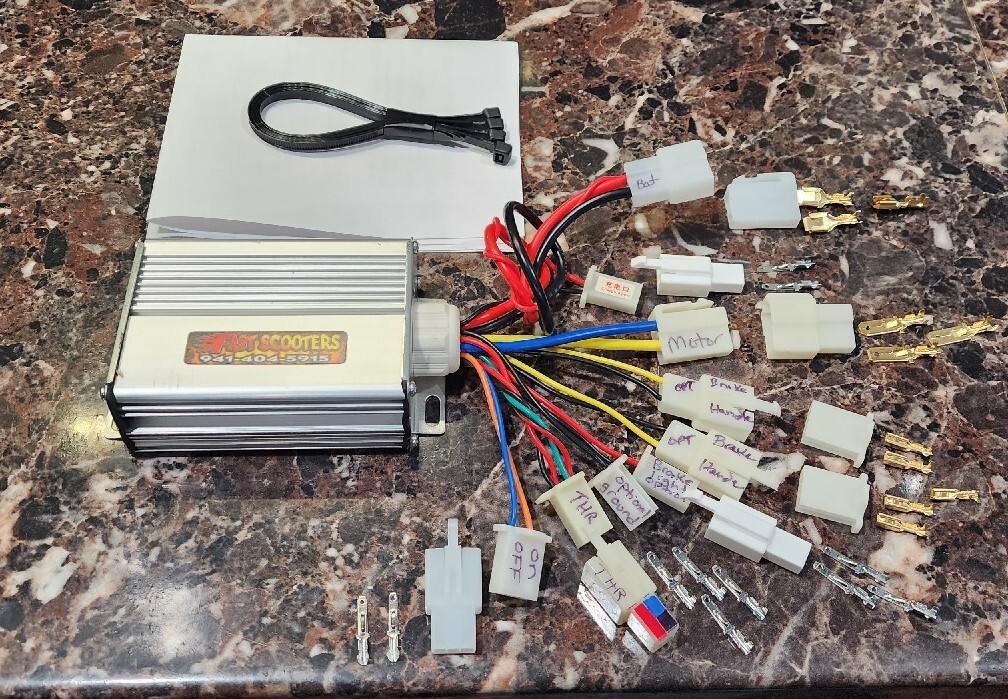

36 Volt 1000 watts Brushed Motor Controller. 36v 1000w 36volts 1000watts For Sale

1000 Watt -36V 31amp "Brushed Motor" Variable Speed Controller.ATTENTION--This will NOT plug into ANY razor product without my throttle, and even if you have my throttle you "must ad a note at checkout" and a message direct after stating you have my throttle and ill send it as pictured in last picture with a plug n play 6 pin to our throttle, if you dont then you will need to swap wires around on your throttle AGAIN this is a 4 pin connector for throttle, 3 are for the variable speed and the 4th is to read the voltage! Comes with 4 pin connector for your existing throttle,color coded. Not the 6 pin pictured in the last picture, we can send it like that if you include a note with order and a message direct after. This will not plug into any of our throttles unless you request it to have a 6 pin at checkout and what it is going on.
Also comes with all matching ends to fit it to almost any scooter thats 36v under 1000 watts but you must buy our matching throttle to be 100% (your choice and we make it plug n play before we send it)
1000 Watt - 36V Brushed Motor(motors with only 2 wires) ControllerDon't try and guess what goes where like others listed, we clearly state whats what..We can also set it up to plug right into what your working on in some cases just call.1000 Watt - 36V Controller. These controllers we had made specificly for durability and cant be found anywhere on ! These are the best available Electric scooter or E bike controller available by far and its here in the U.S.A and its tested by our team prior to shipping and we give text and phone support!
This controller is for brushed (Also known as "PM" or "Magnet" motors)-NOT FOR BRUSHLESS MOTORSThis is a awesome controller, durable and long lasting. For the price you can't go wrong and we use these on our custom builds so they WORK.Be sure to check out our store for a wide selection of top quality scooter parts!
This comes normally wired like this but we can set it up to your needs in some cases and if you purchase our throttle at the same time,,any throttle,,we will set it up to plug right in.
2 wire connector red and black-Charger port4 wire female connector black=Negative,red=1-5v to throttle,green=0-5v from throttle and Red with Black Stripe=36 or 48+volts,depending on which controller (for display only)-Common 4 wire throttle with display2 pin 3 wire female connector black and yellow-OptionalCut off for brake switch for front or rear2 pin 3 wire female connector black and yellow-OptionalCut off for brake switch for front or rear2 wire female connector black and red-Optional brake lights2 wire female connector red and blue-Power switch or key on/off2 wire male connector red and black-Battery wires2 wire female connector blue and yellow-Motor Wires..Remember--If you need a matching standard throttle,5 LED throttle or throttle with key or 1 of our digital display throttles with keys in anodized,blue,red or chrome,,simply purchase which one you want and It will come with a connector ready to plug in..If you order one of our throttles with keys your controller will have a 6 pin connector that combines variable throttle and on/off capability.
Under Voltage ProtectionWhen battery voltage falls to a specified value, the controller cuts off battery output preventing over discharge and extending battery life.(The cutoff value is approximately 30.5 volts, but varies drastically from controller to controller.)Rated Voltage36 VoltsRated Current31 AmpsRated Motor≤ 1000 WattsRated Charger≤ 1.2-3.0 AmpsConversion Efficiency95%Under Voltage Protection30.5 VoltsDimensions105 x 70 x 40 mm
