Attention: The default shipping axis length is 17mm. If you need other axis lengths, please contact customer service.

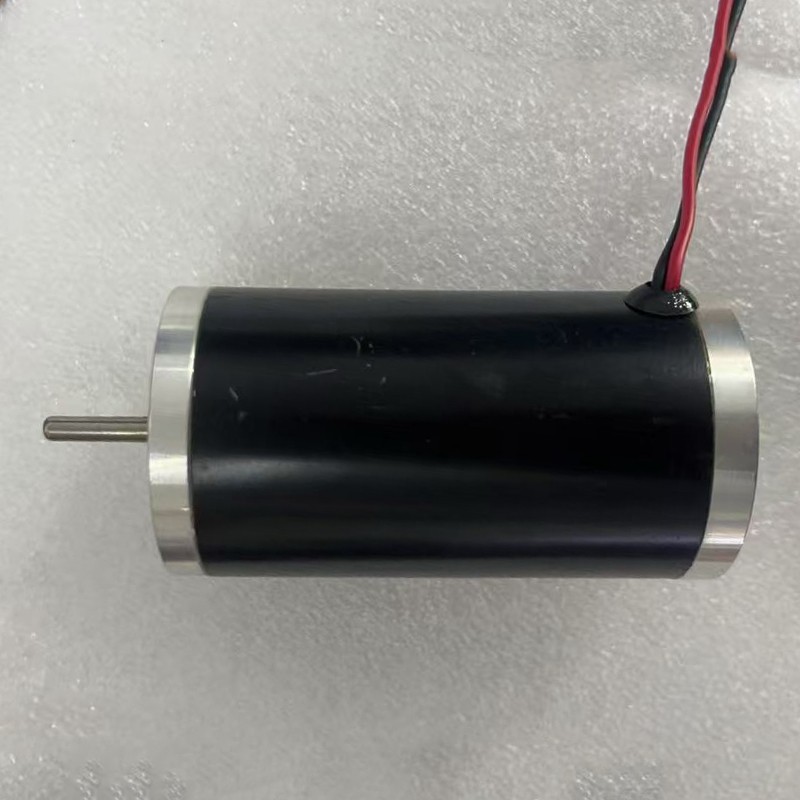

36ZY High Torque High Speed DC Motor 12V24V Micro Forward and Reverse Rotation Motor Speed Control Silent Small Motor
Power: 1-10W
Rated voltage: 12V-24V
No-load current: 120ma-450ma
No load speed: 3500rpm/5000rpm/8000rpm
Motor size: 36 * 62mm
Output shaft diameter:3.175mm
Output shaft lengthh:17mm
Adjustable speed: Yes
Customizable: Yes
Wiring method: The terminal marked in red is connected to the positive pole of the power supply, and the other end is connected to the negative pole, with the motor rotating forward; Reverse connection of positive and negative poles indicates motor reversal!
Product Size:
Product Shoots:
Steel tube motor, durable, circular shaft can be equipped with a gearbox
High quality carbon brush, non overheating, low noise, reliable assembly, and no damage.
High precision ball bearings, silent, smooth operation, high load, and long service life.
