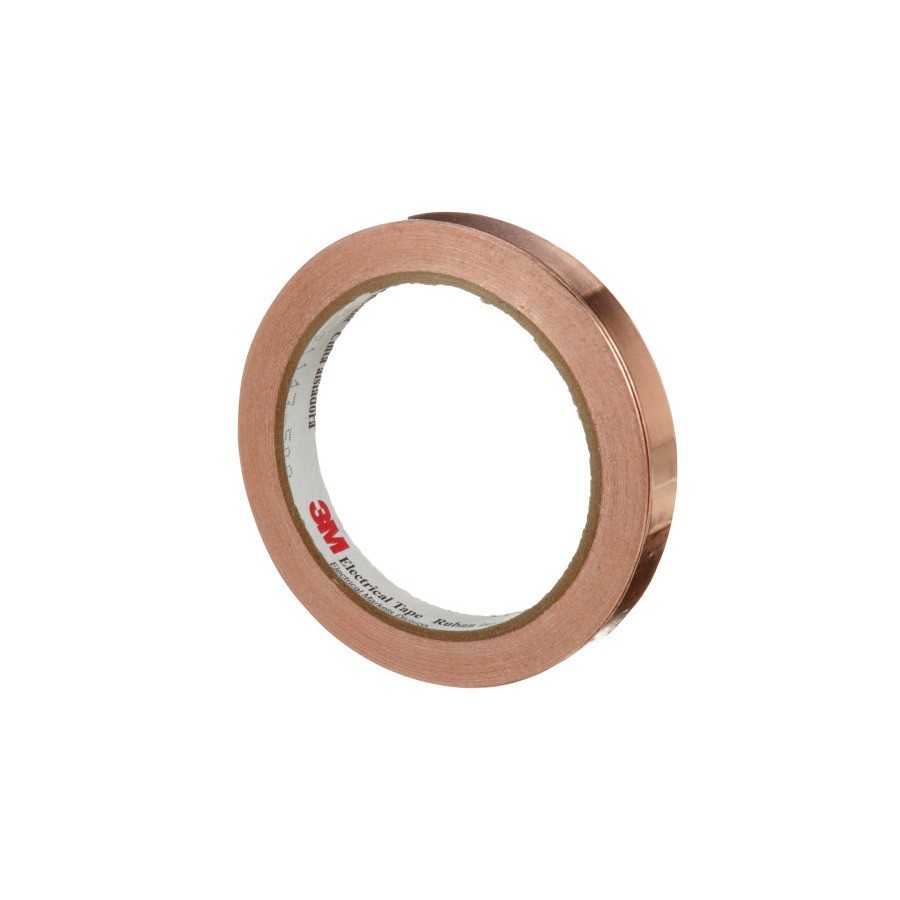

3M 1181 EMI Copper Foil Shielding Tape, 1/2\" x 18yd, 2.6 mil, 1 Roll, 7000132182 For Sale

3M™ EMI Shielding Tape 1181 has a deadsoft, copper foil backing with a pressure sensitive, electrically conductive, acrylic adhesive that ensures firm adherence. The copper foil backing of the tape offers excellent resistance against oxidation and discoloration. The conductive particles in the adhesive offer low resistance between the substrate and the backing. This flame retardant tape is designed for grounding and EMI shielding in equipment, components and shielded rooms. UL Listed and RoHS 2011/65/EU Compliant. 3M™ Copper Foil EMI Shielding Tape 1181 is a conductive adhesive shielding tape that is designed for applications that require reliable, point to point electrical contact. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

• Deadsoft 1 oz copper foil backing
• Conductive acrylic adhesive
• Unique adhesive creates secure contact with the application surface
• Rated for 600V applications
• Resists discoloration and oxidation
• Electrical resistance of 0.005 ohm
• Temperature rating of -40 to 130 °C

Applications

• For Electronics Industry such as Static Charge Draining, Seaming Shielded Rooms, Cable Wrapping and Surface Contact to Non-Solderable Materials

Attributes

General Information

Item NameShielding TapeTrade Name3M

General Features

Shelf Life60 Months

Design & Construction

Adhesive TypeAcrylicBacking MaterialCopper FoilColorCopper

Performance Details

Adhesive Strength35 oz/InchBreaking Strength25 lb/InchFlame RetardantYes

Physical Properties

Core Size3 InchElongation5%Width0.5 InchLength18 YardThickness2.6 mil

Environmental Condition

Temperature Rating130 °C
