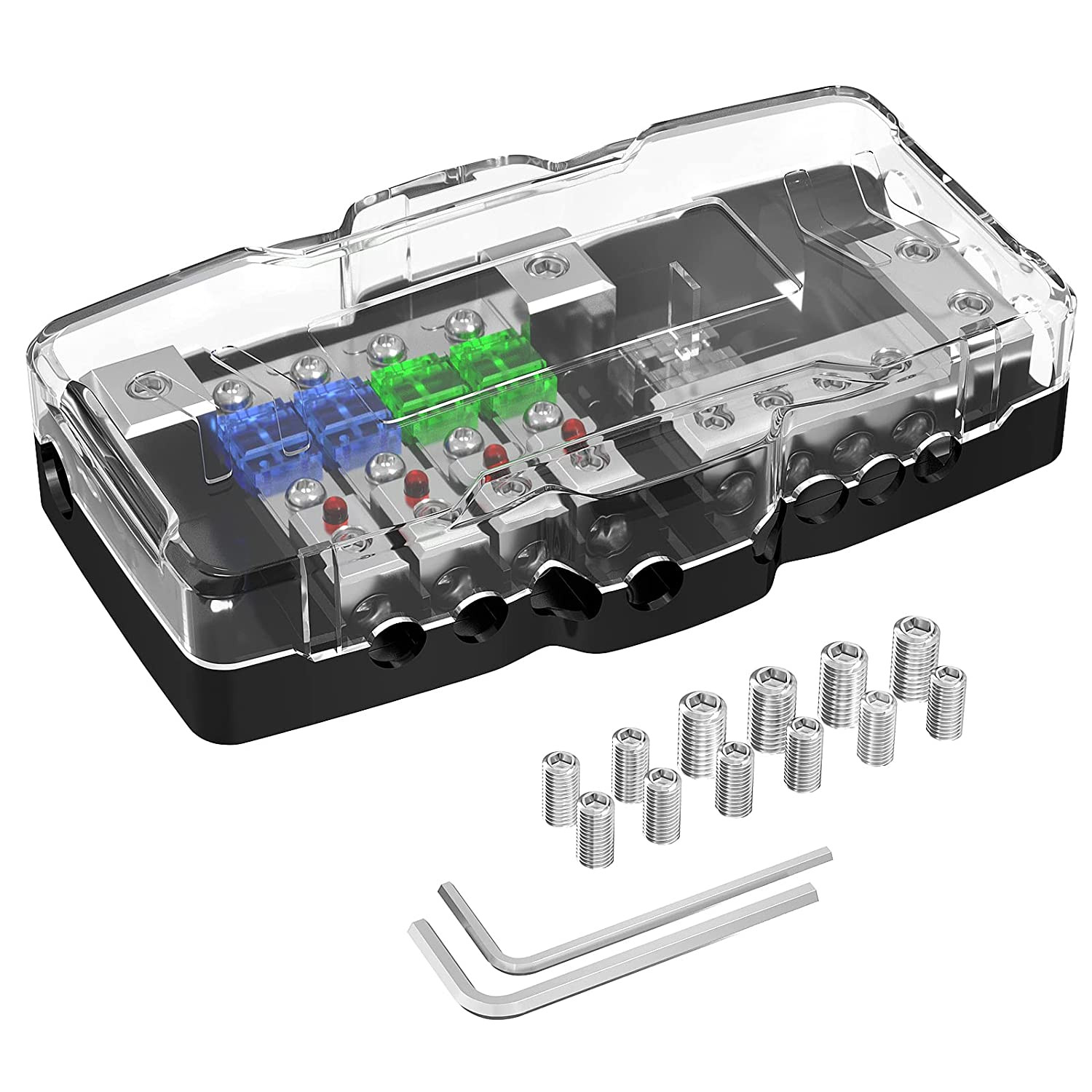

4-Way Fused Power Distribution Block Car Audio 12V 0/4 Gauge with Ground for Auto UTV Boat AmpDescription Part Number AFS-30 Current Rating 200 Amps Mounting Type Surface Mount Color Black Upper Temperature Rating 90 Degrees Celsius Material Copper, Nylon, Stainless Steel Material Type Copper, Nylon, Stainless Steel Connector Type Crimp Number of Positions 24 Gauge 4.0 Voltage 12 Volts (DC) Model AFS-30 Number Of Contacts 20 Number Of Poles 4 Item Dimensions W x H 166\"W x 35\"H Specification Met CE
- Multi-Function Hub: This fused power distribution block is capable for both positive and ground, it allows 2 input and 4 output wires installation on each pole, in addition, each branch on positive side will allow MIDI (mini ANL) fuse installation to protect the circuits
- Ferrule: The power distribution block car audio will come with ferrules to expand its capacity. As for input hole, it allows 0, 2, 4 gauge wires installation, and as for output hole, it allows 4, 6, 8 gauge wires installation
- Mini-ANL Fuse: The Mini ANL fuse block car audio will come with 6 pcs of MIDI fuses to provide more decisions for different situations, including 2 x 30A, 2 x 60A, 2 x 80A fuses
- Red LED: The MIDI fuse holder distribution block is red led indicator design, LED will light up when the fuse blows, which helps you easily identify the status of fuses
- Wide Application: The MIDI fuse box distribution block is suitable for the amp or stereo audio system, Solar Panel, Battery of automotive, car, Camper, truck, Trailer, UTV, Marine, Boat, etc
Product description Fused Distribution Block Car Audio:
About The Item:
Power distribution block car audio with led indicator, protect cover, wrench. 2 x 0, 2, 4 gauge input hole & 4 x 4, 6, 8 guage output holes design fuse box distribution block.
What is included:
1 x Mini-ANL Fuse Block Car Audio
1 x Ground Distribution Block Cover
2 x 30A Mini ANL Fuse
2 x 60A Mini ANL Fuse
2 x Spare 80A Fuse
2 x Wrench
Input 0-4 AWG Output 4-8 AWG Fuse Type Mini ANL/MIDI Fuse, 2 x 30A, 2 x 60A, 2 x 80A Feature Red Indicator Design Dimension 165mm x 91mm x 36mm(LxWxH) Color Black & Silver Product Details Display Ferrule
The 0 guage distribution block will come with ferrules, which makes it also a 4 gauge distribution block. The input hole can accept 0-4 gauge, the output hole can accept 4-8 guage.
Mini ANL Fuse
The fuse type that used on this car audio distribution block is mini-ANL fuse, and it will come with total 6 fuses, includes 2 x 30A, 2 x 60A, 2 x 80A for different situation.
Red LED Indicator
The fuse holder distribution block is red led indicator design, when the fuse blows, the indicator light will light up, which helps you easily identify the blown fuses.
