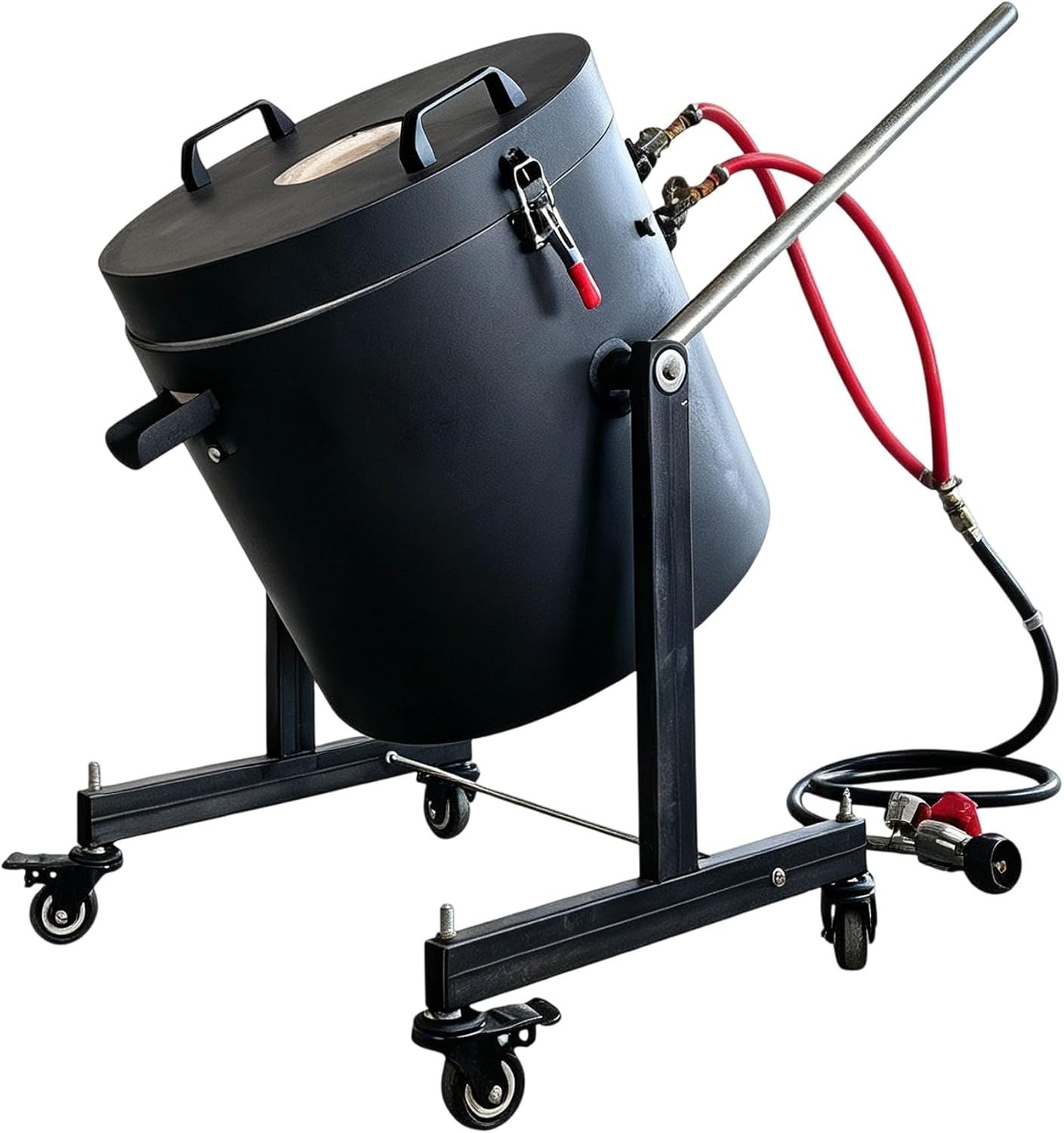

Gas Metal Melting Furnace is used to melt copper,brass, gold, silver, aluminum, zinc, tin and other metals with melting points below 1300 ° C（2372 ° F）. Suitable for most fuels, liquefied gas，LPG, propane, etc. But it can not melt steel, iron.There is no gas furnace in the world that can melt iron.
Package includes all of items in my listing photo,including crucible,gloves,red hose,instruction manual.
1. Furnace body is made of steel( 1.5mm thick), superior strength and durability.2. Dual gas burners are made of steel,each burner is around 100,000 BTU ,fast melting can save 40% time and 20% gas cost ;3. Outside Dimensions : 16\" diameter x 16\" height (40cm x 40cm);
4. Inner Dimensions: 12\" diameter x 12\"Height (30cm x 30cm);
5. Adjustable high pressure gas regulator with gauge from 0--30 psi , 5 ft (1.5m) long hose,USA certificated;
6. One 40 kg crucible can load 40 kg brass or 12 kg aluminum,but I suggest you use 80% of capacity for safe handle.7. Furnace body , lid and bottom are fully lined with 2 inch of ceramic fiber insulation.You only need a propane gas bottle/tank ( like 20,30 or 50 LB ).
Our special advantage:1. The air chock on our burner can control the air and flame at different gas pressure.
2. Dual burnercan save 40% time and 20% gas cost.3. Many other seller\'s burner head may melted damaged after long time using in high temperature flame ,so you had to change the whole burner. But our bell shape burner head can be changed because it is connected by thread, you can buy replacement in local shop cheap and easily .4. You also can use only one burner by shut off the valve ,and block one hole on furnace body with my additional ceramic wool.5: No need to lift and pour the crucible with tongs, safe and easy to handle hot crucible, Our tilt-pour design lets you pour molten metal directly from the furnace spout. safe for big casting.Kind remind：
1. Do not use it to melt iron, that will shorten the life of the furnace.
2. Graphite crucible is consumable, you can change a new one according to your requirement.
3. Use safety goggles, mask as well as gloves while casting metals.4. The ceramic insulation blanket is not asbestos . Asbestos has been forofferden many years ago.But you can coat some rigidizer or cement to prolong the lifetime.* Orders Shipping within 1 or 2 day . PO Box is not accepted. No Pick up.
* 30 days for an exchange, refund orreturn from service of our USA warehouse.
* We have 3 warehouse in East,Central and West of USA. Normally we will ship it from the warehouse nearest to you. so you can receive it in 2--5 days.
