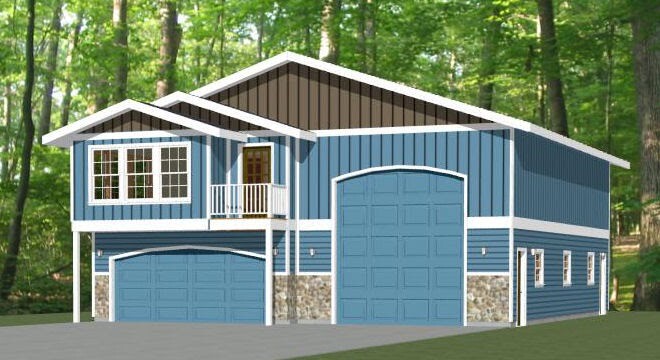

This is a PDF Plan and will be emailed only. Please let me know the email address you want the PDF sent to.1 bedroom, 1.5 bath apartment with 2 car garage & 1 RV, bus, or big rig garage. It has a shop, microwave over range & stacked washer / dryer.40X48H2A
Sq. Ft: 1,350 (396 1st, 954 2nd)
Building size: 40\'-0\" wide, 52\'-0\" deep
Main roof pitch: 4/12
Ridge height: 24\'
Wall heights: 8\' & 16\'
Foundation: Slab
Lap siding & faux stone panelingFor the reverse plan, see Model includes:
Elevations
Exterior / Interior Dimension Plan
Ceiling / Floor Framing Plan
Roof Framing Plan
Cross Section
Door & Window Schedule
Lighting Plan
An estimated materials list for the doors, windows, and general wood framing, also in PDF format.You are purchasing the PDF file for this plan. Print it out whenever you like.
Plan prints to 1/4\" = 1\' scale on 24\" x 36\" paper.SHIPPING:
Please let me know the email address you want the PDF sent to.
When the email has been sent, your purchase will be marked as \"Shipped\" on .
I do not print & mail plans. They can be printed your local print shops.CUSTOM PLANS:
Unfortunately I\'m unable to do custom plans at this time.DISCLAIMER:
These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.
I do not represent nor imply myself to be a licensed architect and/or licensed engineer.
Enjoy these plans but use them at your own discretion.
Please do not redistribute PDF file. You may print out the plans as many times as you want.
