4pc 30mm Hubcentric Wheel Spacers 4x100 BONOSS for Suzuki Swift Sport 2000-2025 For Sale

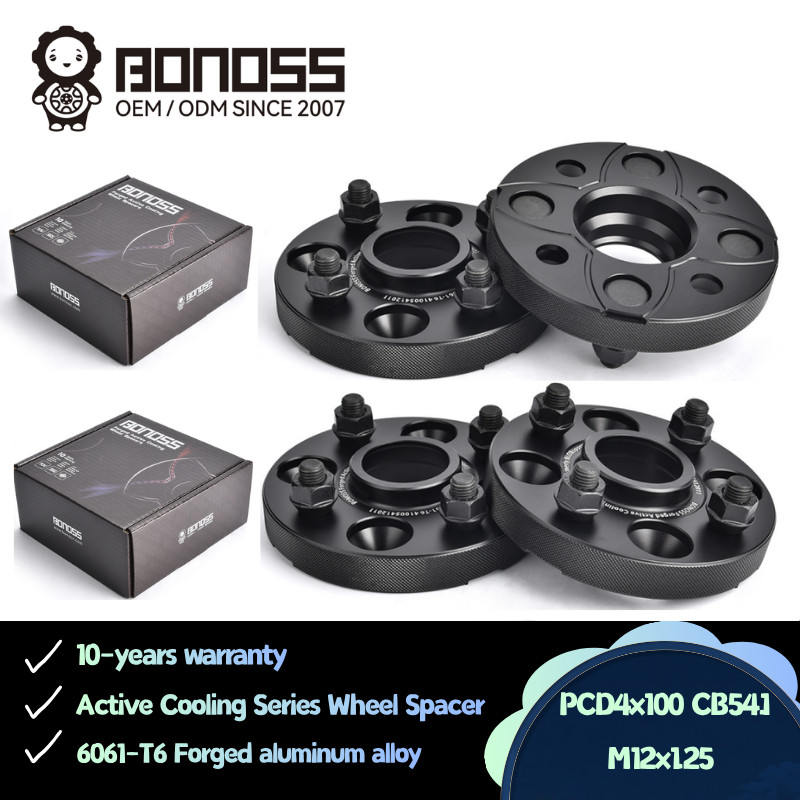

BONOSS 4pc 30mm Hubcentric Wheel Spacers 4x100 for Suzuki Swift Sport 2000-2025 BONOSSHUB‑CENTRIC FORGED US · Wheel Spacers · 4x100 Suzuki Swift Active Cooling · Flush Stance · Zero Guesswork Widen your Swift. 30 mm of forged active-cooling precision for your Suzuki Swift. Visit BONOSS Store Suzuki Swift 2016 · Case Car4x100 · CB 54.1 · M12x1.25 Items Description BONOSS 4pc 30mm Hub-Centric Wheel Spacers · 4x100 for Suzuki Swift / Swift Sport (HT) Listing draft: Suzuki-Swift-30mm-BLM · 4pc 30mm BrandBONOSSThread SizeM12x1.25 Warranty10 YearsWheel Bolt Pattern (PCD)4x100 Quantity4pcMaterialForged Aluminum Alloy 6061‑T6 Thickness30mmHub Bore (Center Bore)54.1mm Hub‑Centric Fit forvehicle with 4x100 pattern for Suzuki SwiftWhat\'s Included4pc Wheel Spacers (studs pre‑installed) + M12x1.25 open‑end lug nuts SeriesForged Active Cooling (BLM)SeatCone Seat (OEM Suzuki) CertificatesReports by SGS · TÜV · ISOStudsM12x1.25 steel studs, pre‑installed Recommended Torque100 N·m / 74 ft‑lbWheel CenteringHub‑Centric (54.1 mm lip) Why BONOSS Forged Active Cooling Five reasons Swift owners choose BONOSS BLM Series spacers ① Forged 6061‑T6 Aluminum, Not Cast

Forged alloy is denser than cast, with zero hidden porosity. CNC‑machined to 0.02 mm parallelism and laser‑etched with your kit\'s exact specs.

② True 54.1 mm Hub‑Centric Lip

Registers the wheel on the factory 54.1 mm hub bore — not the studs — to eliminate high‑speed shimmy. Bore tolerance: ±0.02 mm.

③ Active Cooling wheel spacers

Grooved, knurled body sheds brake heat, while hollow pockets cut unsprung weight — keeping the Swift light and nimble.

④ PCD4x100 CB54.1 M12x1.25 Grade 12.9 bolt

Extended M12x1.25 studs come pre‑installed, with open‑end cone‑seat lug nuts for OEM wheels — a complete bolt‑on kit.

⑤ 10‑Year Warranty, Real Support

10 years against material and workmanship defects, backed by 77+ SGS / TÜV reports and real seller support.

Vehicle Fitment Built for the 4x100 Suzuki Swift/Suzuki Swift Sport

• Suzuki Swift Sport (HT81S)2003 – 2005
• Suzuki Swift Hatchback (RS)2005 – 2010
• Suzuki Swift Hatchback (AZ)2010 – 2017
• Suzuki Swift Hatchback (new gen)2017 – 2025
• Case car: Swift 2016 · 30mm F+RVerified fit

! Before You Order — 4 things to verify

1. Confirm your wheel PCD is 4x100 and your stud thread is M12x1.25 (stamped on the back of the wheel or in the owner\'s manual). If you own a 2005+ Swift Sport (ZC31S / ZC32S / ZC33S), it uses 5x114.3 — this kit will not fit.
2. Confirm your hub bore is 54.1 mm. All 4x100 Swift generations use this spec; if you have an aftermarket wheel with a larger bore, a hub ring may be required.
3. Check fender clearance. 30 mm is a confident push — the wheels sit at or near the fender edge. Heavily lowered cars or ultra‑wide wheels should be test‑fitted first, and mild fender rolling may be needed on extreme setups.
4. Still unsure? Message us your model year and current wheel offset before ordering — we answer fitment questions within 24 hours.

Real‑World Install · Customer Case Suzuki Swift 2016-30mm installed — before & after Front Wheel · Before / After · 30 mm Installed Rear Wheel · Before / After · 30 mm Installed Installation Guide · Text + Images 6 steps, one torque wrench, about an hour

No special tools beyond a jack, stands, and a torque wrench. Follow the star pattern and re‑check torque after your first 50–100 km — that\'s the whole secret.

1 Prepare the Vehicle

Park on level ground, engage the parking brake, chock the opposite wheels, and gather a jack, jack stands, and a torque wrench.

2 Remove the Wheels

Loosen the lug nuts slightly while the car is on the ground, lift the vehicle, support it on stands, and remove the wheels.

3 Clean the Hub

Wire‑brush the hub face and the brake rotor mating surface until both are clean, flat, and rust‑free. Do not apply grease.

4 Mount the Spacer

Seat the BONOSS spacer flat onto the hub, aligning the lip with the 54.1 mm hub bore. Hand‑start the factory lug nuts, then torque them to spec in a star pattern.

5 Reinstall the Wheel

Mount the wheel onto the spacer\'s extended studs and hand‑tighten the included M12x1.25 open‑end lug nuts. Make sure the wheel seats fully against the spacer face.

6 Torque & Re-check

Always torque all lug nuts in a star (cross) pattern to the specified 100 N·m (74 ft-lb). For safety, re-check the torque after the first 50-100 km of driving

FAQ · 30mm Swift Installation Swift Owners Ask: The Spacer Questions We Hear Most

Six questions Swift owners tend to ask before fitting 30 mm spacers — answered plainly, so you can decide what fits your own setup.

Q1 Do I need longer studs or special lug nuts, and are they included? AYes — both are included. Each spacer ships with extended M12x1.25 steel studs pre-installed, plus open-end cone-seat lug nuts for OEM Suzuki wheels. Your factory lugs mount the spacer to the hub; the included nuts mount the wheel to the spacer. Aftermarket wheels with a different seat type should be verified before install. Q2 Will 30 mm spacers cause vibration or steering-wheel shake? AVibration usually comes from poor centering, not the spacer thickness itself. This spacer is hub‑centric with a 54.1 mm lip that matches the Swift hub bore, so the wheel centers exactly as it does from the factory. Clean the hub, torque in a star pattern to 100 N·m, and re‑torque after 50–100 km for the best result. Q3 Will my TPMS still work after installing spacers? AYes. The TPMS sensor stays inside the wheel, and the spacer sits between the hub and wheel — it does not alter the sensor, valve, or signal path. Your dash readings remain tied to each corner\'s sensor. Just be careful not to pinch the sensor valve when seating the wheel. Q4 Will these fit my Swift Sport? AOnly the first-gen Swift Sport HT81S (2003–2005) uses 4x100 / 54.1 mm — this kit fits that one. All 2005+ Swift Sport generations (ZC31S / ZC32S / ZC33S) switched to 5x114.3 / 60.1 mm and are not covered. Regular Swift hatchbacks from 2000–2025 with 4x100 are all compatible. Message us your model year if unsure. Q5 Do I need to rebalance the wheels or get an alignment? ABecause a spacer changes the rotating assembly\'s mass distribution, a wheel rebalance is recommended to keep the Swift smooth at highway speeds. For alignment, 30 mm is a meaningful track widening, so a toe check is worth it — it keeps tire wear even and steering feel crisp. Both steps are cheap insurance. Q6 Are hub-centric spacers street-legal, and do they affect my warranty? AHub‑centric spacers are widely used, but legality can vary by state or local inspection rules — check the regulations where your Swift is registered. In the US, the Magnuson‑Moss Warranty Act limits an OEM\'s ability to void the entire warranty solely because of a quality aftermarket part; a claim is more likely to be reviewed only if a failure appears linked to the spacer or installation. Shipping Payment Return Warranty response Shipping
