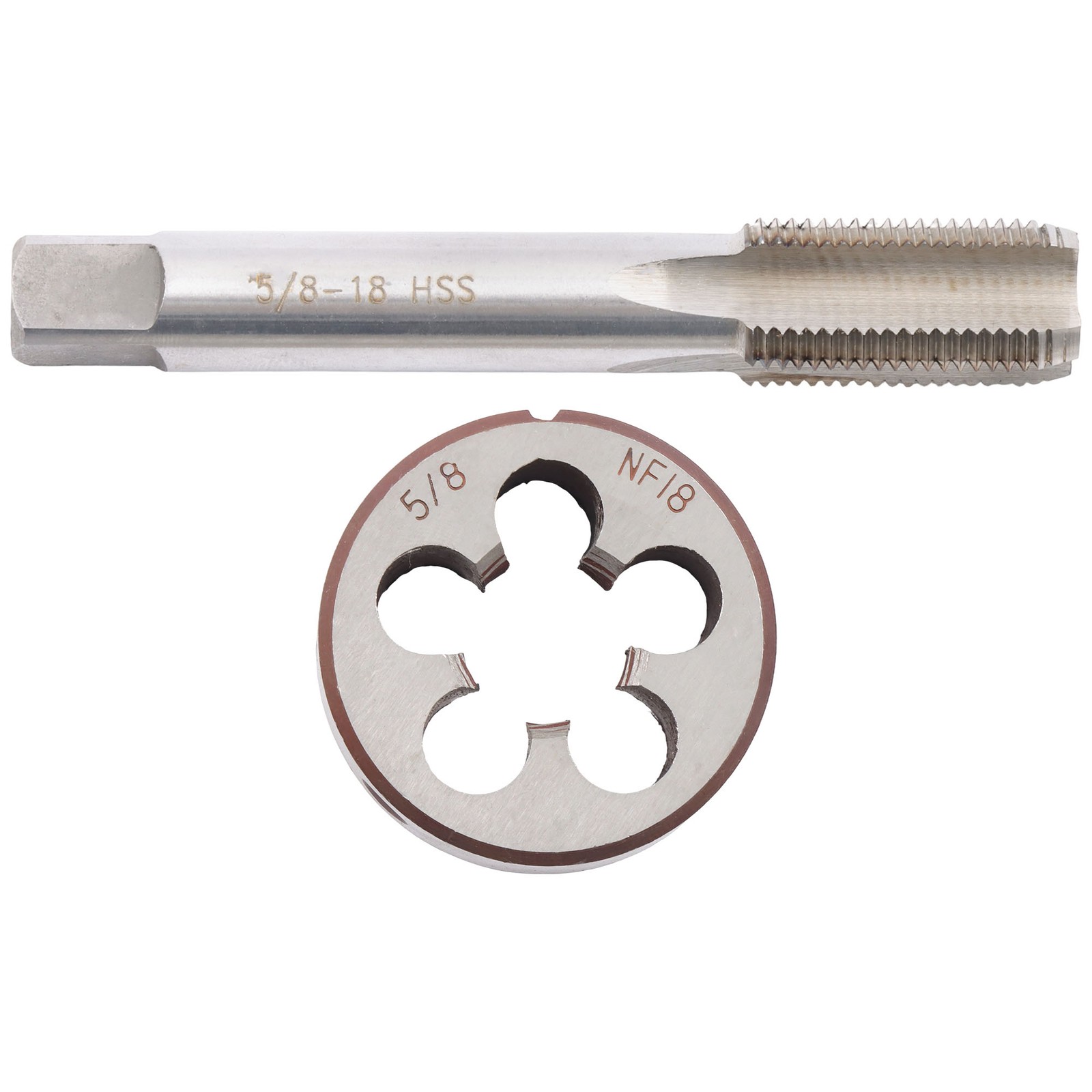

Specification：Tap Length: 3.98"/101mmThread Head: 1.26"/32mmShank Diameter: 12.5mmSquare Head: 10mm x 10mm (L*W)TPI: 18Die OD: 1.5"/38mmDie Thickness: 0.55"/14mmTechnology: Straight fluted design, fast chip removal, and no blocking make your threads machining faster and easier.Applications: Widely used in cast iron, copper, brass, abrasive steel, A3 steel, and other metal materials to process threads.Feature: 5/8"-18 UNF Tap and Die Set Right Hand HSS Threading Gunsmithing 5/8x18 Silver
Specification：
Tap Length: 3.98"/101mm
Thread Head: 1.26"/32mm
Shank Diameter: 12.5mm
Square Head: 10mm x 10mm (L*W)
TPI: 18
Die OD: 1.5"/38mm
Die Thickness: 0.55"/14mm
Technology: Straight fluted design, fast chip removal, and no blocking make your threads machining faster and easier.
Applications: Widely used in cast iron, copper, brass, abrasive steel, A3 steel, and other metal materials to process flute design. It is used to process threads of various through holes or shallow blind holes. Can process copper, brass, A3 steel, aluminum, cast iron and other materials.
Generally used in conjunction with tapping machines, integrated bench drills, CNC lathes, machining centers, etc. Manual processing is also possible. When operating, control the speed according to the hardness of the material, the higher the hardness of the processed product, the slower the speed.
Recommended feed rate:
Hard steel: 5-10m/min, cast iron: 8-10m/min, ordinary steel: 6-15m/min.
Appropriate lubricating oil should be added to the die-cutting edge when cutting, It is to be reversed every 1/4~1/2 turn to facilitate chip discharge from the chip hole.
Package Including：
1 set 5/8"-18 UNF Tap&Die.
Item SpecificsCountry of Origin United StatesBrand findmallMPN IN6031350ALType Tap and Die SetTap Length 3.98"/101mmThread Head 1.26"/32mmShank Diameter 12.5mmSquare Head 10mm x 10mm (L*W)Teeth Per Inch 18 Teeth per InchDie OD 1.5"/38mmDie Thickness 0.55"/14mmSize 5/8"-18 UNFColor SilverWarranty 1 Year
Introduction of Promotion
Fold over fold
Payment
Shipping
Usually your Items will be shipped within 1-3 business day after your payment is cleared.
Returns
Refund is valid within 30 days after thepayment date
Item must be returned in original packing same as reached
Contact Us If you are satisfied with the product you received,please leave us positive response and 5 scores .Please give us the opportunity to resolve any problem. We understand the concerns and frustrations you might have, and will try our best to resolve the issues.We care about our valued customers, and will always try to help you.
CNCHand ToolsMetalworking SuppliesGenerator AccessoriesIndustrial Control Module 5/8"-18 UNF Tap and Die Set Right Hand HSS Threading Gunsmithing 5/8x18 Silver
Specification：
Tap Length: 3.98"/101mm
Thread Head: 1.26"/32mm
Shank Diameter: 12.5mm
Square Head: 10mm x 10mm (L*W)
TPI: 18
Die OD: 1.5"/38mm
Die Thickness: 0.55"/14mm
Technology: Straight fluted design, fast chip removal, and no blocking make your threads machining faster and easier.
Applications: Widely used in cast iron, copper, brass, abrasive steel, A3 steel, and other metal materials to process flute design. It is used to process threads of various through holes or shallow blind holes. Can process copper, brass, A3 steel, aluminum, cast iron and other materials.
Generally used in conjunction with tapping machines, integrated bench drills, CNC lathes, machining centers, etc. Manual processing is also possible. When operating, control the speed according to the hardness of the material, the higher the hardness of the processed product, the slower the speed.
Recommended feed rate:
Hard steel: 5-10m/min, cast iron: 8-10m/min, ordinary steel: 6-15m/min.
Appropriate lubricating oil should be added to the die-cutting edge when cutting, It is to be reversed every 1/4~1/2 turn to facilitate chip discharge from the chip hole.
Package Including：
1 set 5/8"-18 UNF Tap&Die.
Item SpecificsCountry of Origin :United StatesBrand :findmallMPN :IN6031350ALType :Tap and Die SetTap Length :3.98"/101mmThread Head :1.26"/32mmShank Diameter :12.5mmSquare Head :10mm x 10mm (L*W)Teeth Per Inch :18 Teeth per InchDie OD :1.5"/38mmDie Thickness :0.55"/14mmSize :5/8"-18 UNFColor :SilverWarranty :1 Year
