5.89" Monitor with Side View Mirror Camera HD Night Vision Wide-angle Universal For Sale

关联营销模板 Carefully Recommended Products 5inch Car Digital Side View Mirror Monitor Blind Spot Camera System 2CH AHD 720P AI 360 Car Camera System With 1080P TVI Camera Super Night Vision For Sedan Car 5.5" Side View Camera & Touch Monitor Kit Night Vision Wide Angle Dashcam IP68

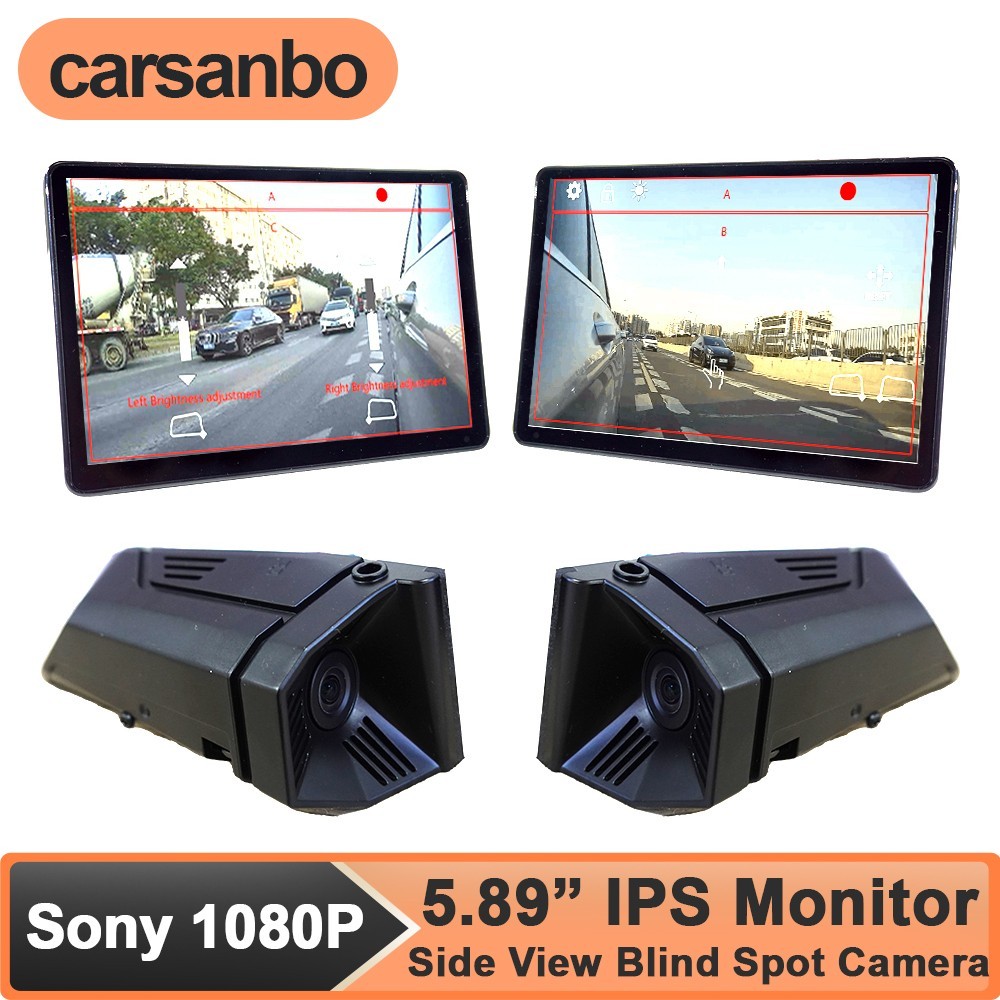

5.89" Monitor with Side View Mirror Camera HD Night Vision Wide-angle Universal

Product Parameters:

• Screen Size: 5.89inch IPS
• Pixel of Screen: 840x512
• Brightness of Screen: 800cd/m2
• Camera Chips: SONY 462
• Pixel of Camera: 1920x1080P 60Fps
• Camera Waterproof Rate: IP68
• Built-in DVR function support 256G TF C10 card.
• Camera with WDR (Wide Dynamic Range) function.
• Adjustable camera view via touch screen.
• The camera lens can be rotated and adjusted at a 45 degree angle, perfectly solving the problem of uneven vehicle surfaces and tilted images.
• OEM bracket mounting (The A-pillar is equipped with a horn and cannot be installed).
• Power Supply: DC12V by cigar lighter power

Why buy this digital side view camera pro system?

1.SVD59 is a side electronic rearview mirror (Side Camera Monitor System, Side CMS, SCMS) that meets the Class III field of view requirements for passenger cars.

SVD59 can effectively solve the pain points in the following driving scenarios.

1. On rainy days, especially on rainy nights, I always feel uneasy when changing lanes or reversing.
2. When vehicles change lanes, it is difficult to effectively detect parallel vehicles in blind spots, which can easily lead to traffic accidents.
3. When parking, it is easy to collide with pillars, curbs, adjacent vehicles, etc.
4. Parking is difficult in environments with weak lighting.
5. When parking and opening the door, it is easy to experience "door kill".
6. Sometimes, after a traffic accident, the perpetrator escapes from the side.
7. At night, when the vehicle behind turns on the high beam, observing the physical rearview mirror may feel glaring.
8. It is difficult to park in a particularly narrow space.

1. Whats new for this digital mirror monitor

Simple install and bigger screen. AI BSD function more intelligence, When the camera sees a car or pedestrian, a box will automatically appear on the display to select and track them. This style eliminates sound reminders. If you need sound reminders, please purchase our old 5.5-inch model.

2. 1080P 60FPS SONY Camera with WDR function

As a high-end chip of Sony 462, it can bring stunning effects to drivers both day and night. It comes with WDR function, which can easily deal with the situation of rear headlights shining at night. As it is a 60FPS high frame rate camera, the image delay is very small, and there will be no ghosting or stuttering.

3. A. B-pillar professional bracket installation, closer to the original car style

Please confirm the A-pillar and B-pillar positions of the vehicle before purchasing. If there are speakers on the A-pillar and B-pillar, installation will be limited.

The ball head behind our monitor is 17mm, and you can choose to install it in other positions, but it needs to be matched with other brackets.

4. New lens rotation design, easy to handle tilted car bodies

Our camera is cleverly designed to be adjusted by a 45 degree rotation through a lever. If the installation position on your vehicle surface is tilted, it can be adjusted by the lever and fixed with screws. Then, with a chrome cover, the camera looks more beautiful.

5. Installation method of monitor

Remove the A-pillar trim panel. Before disassembling, estimate the approximate position of installing the hook into the A-pillar trim panel and mark it if necessary. Install the hook into the marked position on the A-pillar trim panel. If there are ribs interfering with the inner side of the A-pillar trim panel, causing the hooks to be unable to fit in, then scissors are needed to cut off the interfering ribs. If the fit between the hook and the A-pillar trim panel is not good enough, the hook needs to be removed and bent appropriately with pointed nose pliers to match the shape of the A-pillar trim panel.

6. Installation method of camera

Choose a suitable installation location for the camera. The specific method is as follows: Find the most protruding position in the width direction of the vehicle body along the door gap at the front fender., After selecting the location, tear off the double-sided tape at the bottom of the camera and clean the area where the car body needs to be attached. Keep the contact line between the top surface of the camera and the body level, align the edge of the camera (the position where the wiring harness is led out) with the edge of the fender and protrude slightly by 1.0~3.0 millimeters. After aligning the position, stick the camera to the fender and press it firmly.

7.How to connect wires

This system is very easy to install and can also be installed by oneself. It takes power from the cigarette lighter interface and does not need to connect the turn signal line.

8. Installation diagram

9. What including in package?
