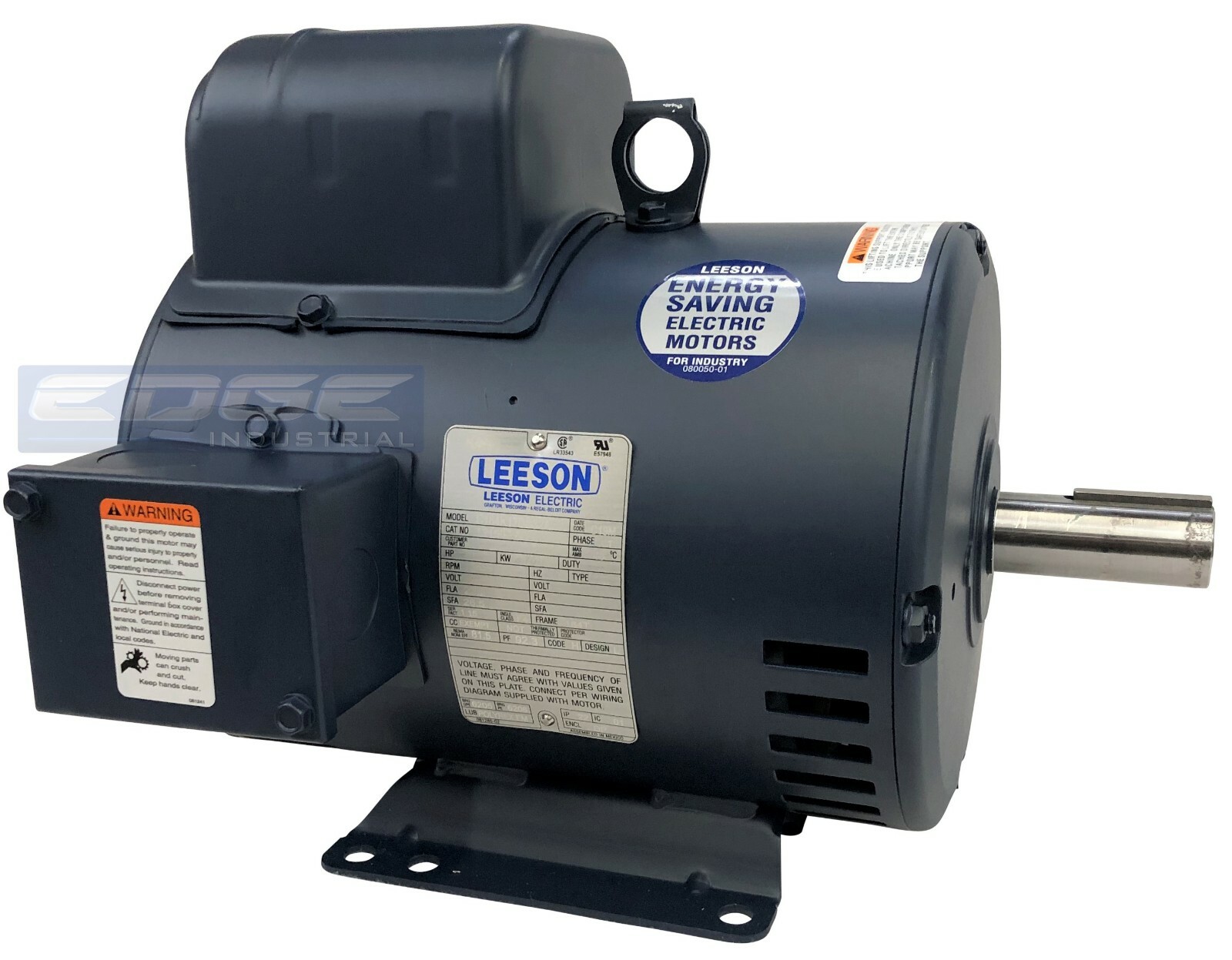

THIS LISTING IF FOR A BRAND NEW 5HP LEESON INDUSTRIAL GRADE SINGLE PHASE ELECTRIC MOTOR, MODEL NUMBER 131537.00. THIS MOTOR IS RATED AT 5HP, CAN BE CONNECTED TO230V INCOMING POWER SUPPLY. THIS MOTOR COMES ON A 184T FRAME AND ROTATES AT 1750 RPM. THIS MOTOR IS REVERSIBLE AND CAN BE WIRED TO ROTATE EITHER CW OR CCW.THIS IS AN OPEN DRIP PROOF MOTOR AND IS INTENDED TO BE USED IN DRY, NON-DUSTY INDOOR ENVIRONMENTS. THIS MOTOR IS BACKED BY A FULL 12 MONTH MANUFACTURERS WARRANTY FROM DATE OF SALE. THIS LEESON COMPRESSOR DUTY MOTOR IS PERFECTLY SUITED TO WITHSTAND THE STARTING TORQUE REQUIREMENTS OF INDUSTRIAL GRADE 5HP PUMPS. THIS LEESON MOTOR IS CAPACITOR START AND RUN. THIS MOTOR ISNOTMADE IN CHINA.
PLEASE MAKE SURE THE ELECTRIC MOTOR YOU ARE REPLACING MATCHES THE SPECS SHOWN BELOW BASED ON YOUR EXISTING MOTORS DATA PLATE.
WHY YOUALWAYSNEED A MAGNETIC STARTER ON INDUSTRIAL GRADE MOTORS. A MAGNETIC STARTER IS ALWAYS REQUIRED ON ANY 184T FRAME MOTOR AND LARGER. WIRING AN INDUSTRIAL SIZE MOTOR THROUGH THE PRESSURE SWITCH ALONE, IS NEVER A GOOD IDEA, AND HERE'S WHY. PRESSURE SWITCHES DO NOT COME WITH OVERLOAD PROTECTION FROM POWER SURGE OR LIGHTING. IN ADDITION, PRESSURE SWITCHES HAVE VERY SMALL CONTACT POINTS THAT CONNECT TO THE MOTOR. SMALL CONTACT POINTS CAN STARVE YOUR MOTOR OF THE NECESSARY POWER IT REQUIRES TO START AND RUN NORMALLY. MAGNETIC STARTERS NOT ONLY PROVIDE YOU WITH MOTOR PROTECTION FROM POWER SURGE AND LIGHTING, THEY ALSO HAVE LARGER CONTACT POINTS THAT CONNECT TO YOUR ELECTRIC MOTOR. ALLOWING FOR A STEADY FLOW OF CURRENT THAT AN INDUSTRIAL GRADE MOTOR REQUIRES TO RUN AND ESPECIALLY START UP. BY INCORPORATING A MAGNETIC STARTER WILL ALLOW YOUR MOTOR TO LAST MUCH MUCH LONGER.
PLEASE VISIT OUR store FOR THE BEST PRICE AND SELECTION OF MAGNETIC STARTERS.
5HP - 184T FRAME - 1750 RPM - SINGLE PHASE - 230VOLT - 1-1/8" SHAFT DIAMETER - 2.75" SHAFT LENGTH -MADE IN MEXICO
PLEASE SEE ATTACHED PICS FOR MOTOR DIMENSIONS AND FRAME DIMENSIONS.IF YOU NEED HELP CHOOSING THE RIGHT MOTOR TO REPLACE YOUR EXISTING MOTOR, WE'RE HERE TO HELP. ATTACH A PIC OF YOUR EXISTING MOTORS DATA PLATE TO THE CONTACT SELLER LINK AT THE TOP OF THE PAGE.
TECHNICAL INFO:
HORSEPOWER: 5
AMPERAGE: 23 @ 208V / 21@ 230V
PHASE: SINGLE PHASE
VOLTAGE: 208-230 IF YOUR INCOMING VOLTAGE IS 208V, PLEASE REFER TO LEESON 131560
RPM: 1750
TORQUE: 15 FT LBS
BASE: REINFORCED FIXED BASE
FRAME: 184T
SHAFT DIAMETER: 1-1/8" KEYED SHAFT
SHAFT LENGTH: 2.75"
ROTATION: REVERSIBLE CW OR CCW ROTATION
FREQUENCY: 60HZ
SERVICE FACTOR: 1.15 @ 230V ( 1.0 SERVICE FACTOR AT 208V)
ENCLOSURE: ODP OPEN DRIP PROOF
CONSTRUCTION: STEEL FRAME
WEIGHT: 86 LBS
WARRANTY: 12 MONTH
