5 Hubbell Red Pin & Sleeve Plugs Splashproof IP44 60A 200-415V 4P5W C560P6S For Sale

Fruit Ridge Tools, LLC

• Our store
• Contact Us
• Add to Favorite Sellers

5 Hubbell Red Pin & Sleeve Plugs Splashproof IP44 60A 200-415V 4P5W C560P6S Product Details Quantity in Lot: 5 Brand: Hubbell Part Number: C560P6S Color: Red Type: Pin and Sleeve Plug Phase (if applicable): 1 Phase Poles: 4 Wires: 5 NEMA Number: Non-NEMA Amperage: 60A Voltage: 200/346V - 240/415V Grade: Industrial Grade Ground: Grounding

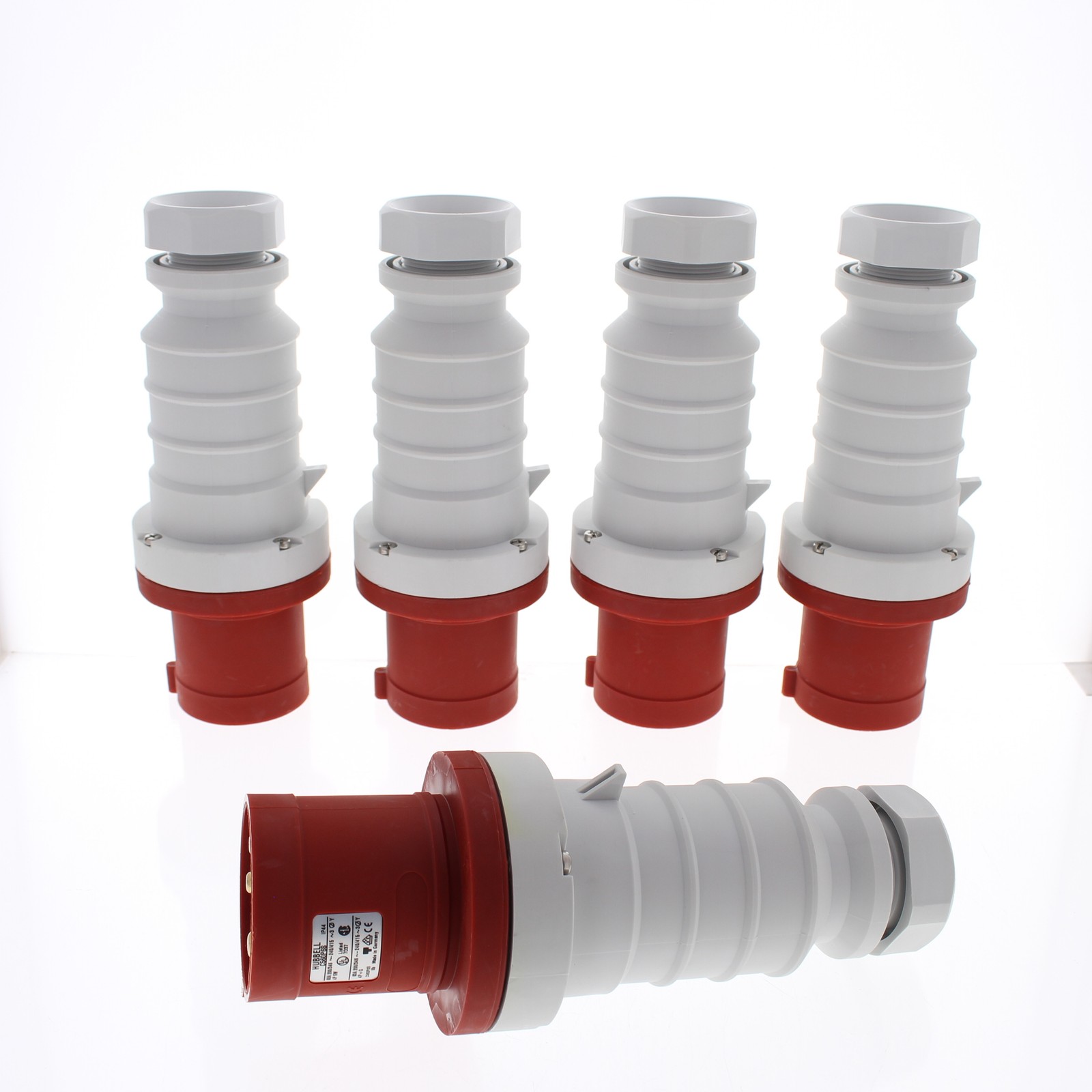

5 Hubbell C560P6S red pin and sleeve watertight IP44 plugs. Rated 60A 200/346 - 240/415V, 4-Pole 5-Wire grounding 14-10 AWG gauge; Cord grip range 0.375"-0.625". Device measures 5.63" (Full body length) x 4.21" (Body length minus plug shield) x 2.50" (Terminal end) x 0.66" (wire-way). The device has a natural designed grip that makes it easy to work with during connection. The cable entry is for flex and convex cables and the cable is secured through a flip aside cable clamp. The installation is easy done due to the clear terminal marking. After connecting the cables the housing is easily closed by a twist. Each is individually packaged; packaging may differ from photo. Features include:

• Hubbell's design incorporates two molded-in teeth to securely grip the outer cable jacket, and internal conductors to prevent slippage and strain on terminations
• Individual solid neoprene glands are supplied to match a full range of cord sizes and assure watertight performance
• Broaches oxide film to achieve low resistance contact for cooler operation
• Features a V-0 flammability rating
• Locking ring torque tabs for a reliable seal for maximum environmental protection
• Shrouded cover arm offers a compact internal swing arm is fully shrouded, improving durability
• Pocketed recessed screws prevent slippage of the screwdriver

This is New Old Stock and is returnable for any reason. (SKU # HUBC560P6S-5PK; Weight: 8.8500 lbs.)
