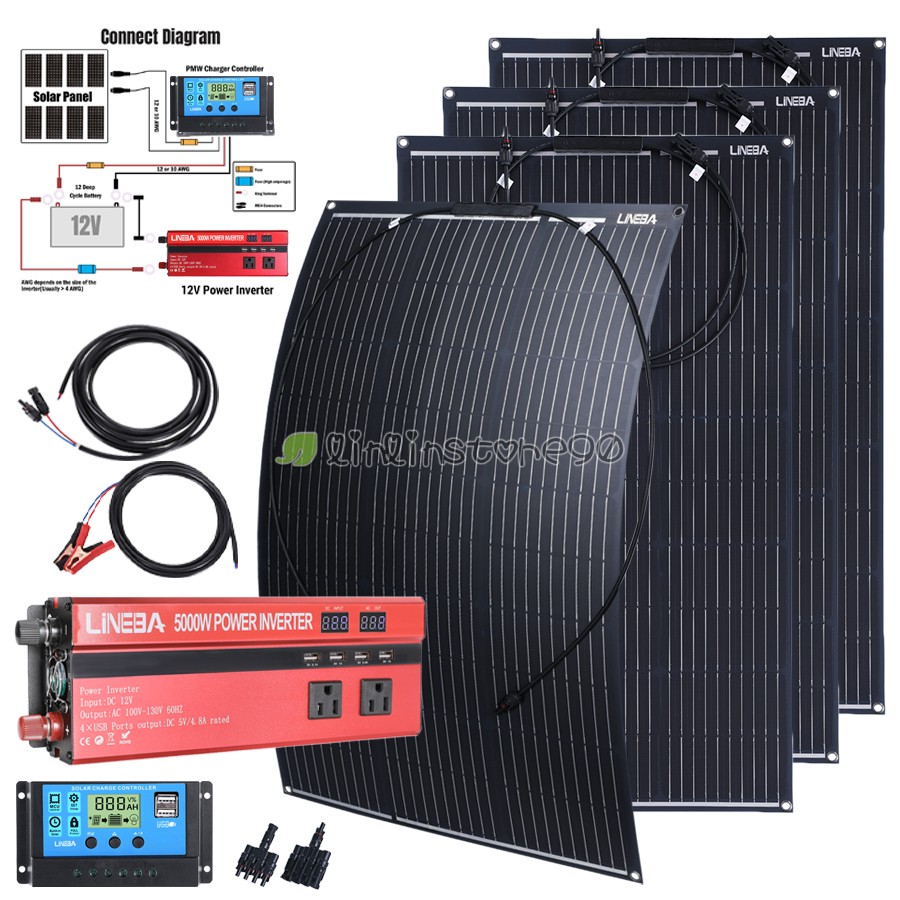

5000W Complete Solar Panel Kit with Controller & Inverter Home 110V Grid System For Sale

5000W Complete Solar Panel Kit with Controller & Inverter Home 110V Grid SystemWarm Quality Control,100% Brand new & high quality.•Offer delivery withTrackingNumber.•Need 2business day for Handing & Packing.•Package will arrive in2-6 days for 48 contiguous states[ not for weekend and holiday]•60 Days Free Return for Any ReasonSolar PanelFeatures:* Widely UsesApplicable to many scenes in daily life, You can install and use solar panels on trailer, RV, boat, cabin, tent, car, truck, yacht, roof. It\'s one of the best ways to get clean energy when you\'re outdoors.
* Safe and WaterproofJunction box with IP65 protection rating, MC4 connector with IP67 protection rating and waterproof panel to effectively block water splashes are suitable for many weather conditions.
* Easy to InstallThis kind of this solar panel is designed with 4 mounting holes, you can hang it on a hook or fix it with screws, even fix it with a rope in a temporary situation. Or stick the back of the plate fimly to the mounting surface. The installation is very convenient and flexible.
* Strong VersatilityOur solar panels can be used independently or used in series and parallel with multiple solar panels. E.g. 1 flexible solar panel is suitable for 12V system. 2 solar panels in series can be used for a 24V system or 2 boards can be connected in parallel for a 12V system.
* Flexible Ultra ThinCompared to traditional solar panels, this flexible solar panel is extremely flexible and weighs only 1.05kg, which is at least 70% lighter than traditional solar panels. It can be bent moderately and is only 0.8mm in thickness and only 974*565mm in size. easily transport, install, hang and remove.Specification:
Power: 100W
Tolerance ::0～+3w
Cell Efficiency: Up to 23.5%
Voltage at Max Power(Vmp): 18V
Current at Max Power(Imp): 5.56A
Open Circuit Voltage(OCV): 21.6V+3%
Short Circuit Current(Isc): 5.81A+3%
Nominal Operating Cell Temperature (NOCT): 45+2℃
Maximum System Voltage: 1000VDC
Maximum Series Fuse Rating: 20A
Applicalion Class : A
Protection Class : IP67
Number of Cells: 30 (3*10)
Operating Temperature: -40～176℉ (-40℃～+85℃)
Dimensions: 975*565*3mm /38.38*22.2*0.11inch30A Controller:Product Specification:Display mode：LCD
System voltage: 12V/24V AUTO
Rated Charge Current: 30A
Maximum PV open circuit voltage : 50V
PV maximuminput power:390W(12V) Alloy
Waterproof rating: USB output：5V/2A
Working temperature range：-35℃-60℃
Temperature Compensation：-24mV/℃ for 12V system
Battery Type: Lithium batteries, customization, GEL,SLD,FLD
Load control mode: 24 hours work, light control, light and timing control
Charging control mode:PWM
Float charge:13.7V / 27.4V
Equalization charge:12.6V-14.4V / 25.2V-28.8V
Load disconnection(LVD):10.0V-10.4V / 20V-20.8V
Load reconnection(LVR):11V-11.6V / 22V-23.2V
Battery Over Voltage Protection：16.5V / 33V5000W Power Inverter[12V-110V]Feature
1.Built-in Protection: Built-in 40 amp fuse protects against overheating, undervoltage and overvoltage charging, and short circuits.
2.Temperature-Controlled Silent fan: When the temperature reaches 45 degrees Celsius, the cooling fan will run, and the built-in powerful cooling fan ensures that the power inverter continues to run stably and worry-free.
3.Energy Saving Mode: automatically switch to sleep mode when not in use, idle power consumption is less than 10W.
4.Durable Material: Durable metal casing provides superior protection against drops and bumps.
5.Wide Application: Perfect for TV, rice cooker, washing machine and other household appliances, can be used for vacation, camping, outdoor emergency and other occasions.Product Parameter
Material: Aluminum Alloy
Rated Power: 900W
Peak Power: 5000W
Input voltage:12V
Output voltage: 110V±5%
Output frequency: 60Hz
Output waveform: Modified sine wave
No-load loss: <0.2A
Conversion efficiency: >95%
Low voltage alarm: 10V±0.2V
Low voltage shutdown: 9.5V±0.2V
High voltage shutdown: 15.5V±0.2V
USB: LCD color screen
Charging port: 4 USB ports
Over-temperature protection: 55°C-75°C
Working temperature: 0°C-40°C
Product size:305*105*55/12.0*4.1*2.15inch Package include:400W Solar Panel Kit+Controller+5000W Intverter4 x 100W solar panel1x 30A PWM Solar Charge Controller
1x 16.4ft MC4 solar panel and Controller Connected cable1x 9.8ft Controller and Battery Connected CableOne Pair MC4 1 to 4 solar panel connector1 x Power Inverter
1 Pair of Batery Cable
1 x Cigarette Lighter Cable
1 x User Manual200W Solar Panel Kit+Controller+5000W Intverter2 x 100W solar panel1x 30A PWM Solar Charge Controller
1x 16.4ft MC4 solar panel and Controller Connected cable1x 9.8ft Controller and Battery Connected CableOne Pair MC4 1 to 2 solar panel connector1 x Power Inverter
1 Pair of Batery Cable
1 x Cigarette Lighter Cable
1 x User Manual100W Solar Panel Kit+Controller+5000W Intverter1 x 100W solar panel1x 30A PWM Solar Charge 1 x Power Inverter
1 Pair of Batery Cable
1 x Cigarette Lighter Cable
1 x User Manual400W Solar Panel Kit+30A Controller4x 100W solar Pair MC4 1 to 4 solar panel connector200W Solar Panel Kit+30A 100W Solar Panel Kit+30A 100W)4x 100W solar panel200W(2*Real 100W)2x100Wsolarpanel100W Solar Panel1x 100W solar panelOnly 5000W Interter
1 x Vehicle Inverter
1 x Manual
2 x Clip Wire
1 x Cigarette Lighter Head
1 x Packing Box
