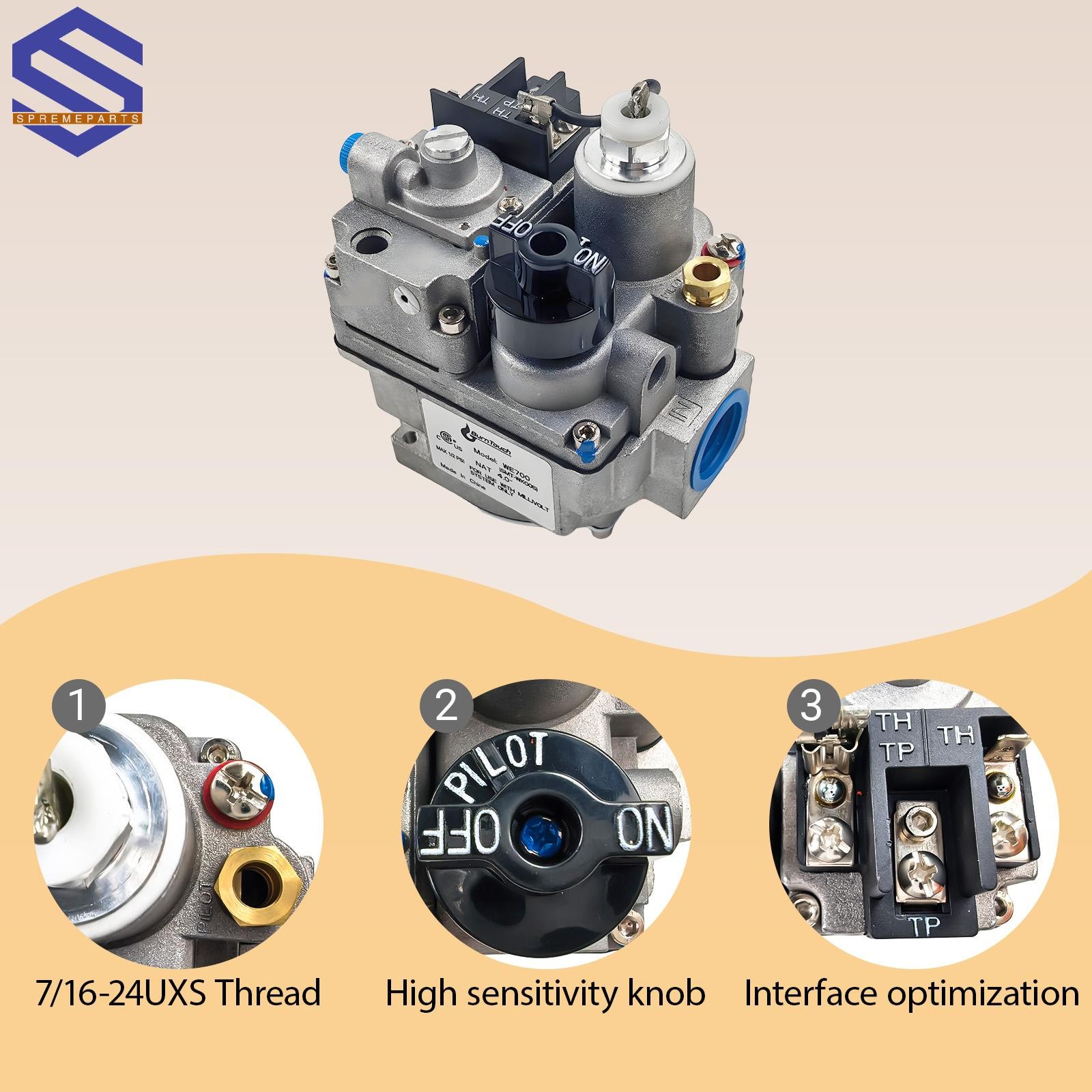

700-506 Millivolt Gas Valve for Robertshaw 700 Series 200,000 BTU/H Fast Opening For Sale

700-506 Thermostat Natural Gas Valve
Technical Specifications

• Valve Type: Normally closed solenoid.
• Thread Size: 3/4"-14 NPT (inlet and outlet).
• Pressure Range: Inlet: 7" to 13.8" WC (natural gas). Outlet: 4" ± 0.3" WC.
• BTU Range: 180,000 to 360,000 BTU.
• Compatibility: Compatible with Robertshaw 700 Series valves (700-506, 700-503, 700-502, 3/4" x 1/2" Reducer Bushing
  • 2 PCS 3/4" NPT Male x 1/2"NPT Female Reducer Bushings, Outlet Pressure Tap3
  • 3/4“x 1/2” Reducer Bushings Conversion 1/2" Pipe Series Application:Millivolt Diaphragm/Solenoid Gas Valve
  • Replacment Factory Part Number:7000BMVR, Electrical Rating 250mV to 750mV
  • Standard NEMA terminals,Coaxial thermopile and 2 lead thermopile can be used
  • Pressure Regulation: 4" WC Natural Gas
  • Inlet outlet Size: 3/4" NPT ,Pilot outlet 1/4” tubing
  • Ambient temperature of -40°F to 175°F
  • Maximum inlet pressure 13.8” WC (0.5 PSI)
  • Capacity：300,000 BTU； Maximum usage：720,000 BTU




  Designed to fit Fryers and Griddles manufactured by Bakers Pride, Frymaster, Keating and SouthBend

  Replacement for numbers:

  • MONTAGUE 02065-6; SOUTH BEND RANGE 1055999, 1182152, 359701404A; GARLAND 1292799, F807-0115N; KEATING/KKO INC. 20693, 23622,4B5701404, 4B5811404, 4B5811404A; BRADFORD-WHITE 222-22255-00,4G9701404; HOBART CORP 353271-1; PMI 359701400, 84171-20; BIG DUTCHMAN 359701404, 40-10-1307; DEAN 359701417; UNKNOWN 359711400, 4B5-811-404, 4B5811435; BAKERS PRIDE 359811404, R3104A; IMPERIAL 365; FRYMASTER 8070115, 8072427; ANETSBERGER P8903-42; and Keating 023625, 002552, List:
    • Robertshaw 700-506 Gas Valve
    • Robertshaw 700-503 Millivolt Gas Valve
    • Robertshaw 700-502 Combination Gas Valve
    • Robertshaw 700-504 Millivolt Combo Gas Valve
    • Swimming pool furnace combination gas valves.

    700-506 Natural Gas Valve is a trusted solution for maintaining the efficiency and safety of your gas-powered systems. Whether for gas fryers, furnaces, or other heating applications, this valve delivers consistent performance and ease of use
