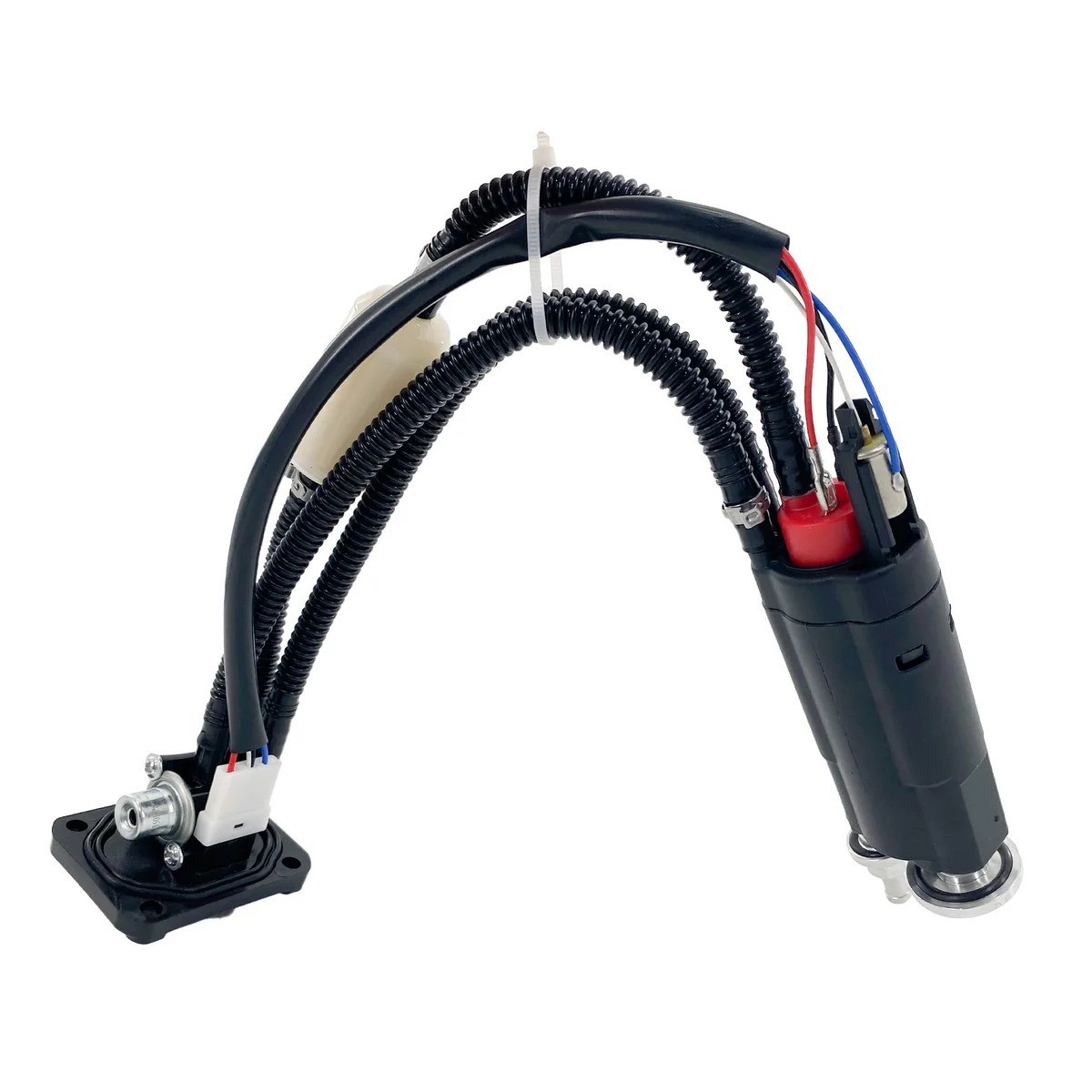

Hodflop fuel pump assembly, maker part number 78107088000 (maker model ZYC-77707088000). It is a complete in-tank electric fuel pump assembly for fuel-injected KTM dirt bikes. The maker describes it as a fuel pump with pressure regulator. The maker\'s photo shows the pump connected by fuel hoses and wiring to the square tank flange, which carries the outlet fitting and electrical connector. This is an aftermarket replacement part, not a genuine KTM part.
Replacement for KTM 78107088000 (FUEL PUMP CPL. EXC) and 78107088100, which KTM now supersedes to 78107088600. The maker also lists it as replacing KTM 78107088300, 78107088500, 77707088000, 79007088000, 79007088100, 79107088000, 79707088000, 79707088100, 79707088200 and 79707088300.
In the box: 1 x fuel pump assembly (per the maker). The retaining nut and gasket are not confirmed; see photos.
Fits these KTM models, where the KTM parts catalog lists 78107088000 / 78107088100 / 78107088600:
- 250 XC-F 2011-2018
- 350 XC-F 2012-2018
- 450 XC-F 2013-2018
- 250 SX-F, 350 SX-F, 450 SX-F 2013-2015
- 250 XCF-W 2012, 2014-2016
- 350 XCF-W 2012-2014, 2016 (including Six Days)
- 350 EXC-F 2012-2019
- 250 EXC-F 2017-2019
- 450 EXC-F Six Days 2017, 2019
- 500 EXC-F 2017-2019
- 450 XC-W 2012-2016
- 500 EXC 2012-2016 (including 2016 Six Days)
- 500 XC-W 2012-2016
- 250 XC-W TPI 2018-2019, 300 XC-W TPI 2019
Also fits these, per the maker\'s cross-reference to the KTM part number used on each bike:
- 2015-2016 250 SX-F and 450 SX-F Factory Edition, 2016-2018 250 / 350 / 450 SX-F (KTM 77707088000 / 79007088000 / 79007088100)
- 2019-2021 250 / 350 / 450 SX-F, 2018-2019 450 SX-F Factory Edition, 2021 450 SMR (KTM 79107088000)
- 2019-2021 250 / 350 / 450 XC-F (KTM 79707088000)
- 2020 350 / 450 / 500 EXC-F, 2021 500 EXC-F, 2021 350 / 500 XCF-W (KTM 79707088100)
- 2020-2021 250 / 300 XC-W TPI and 250 / 300 XC TPI, 2020 150 XC-W TPI (KTM 79707088100)
- Freeride 350, per the maker
Not for 2011-2012 250 SX-F or 350 SX-F. The KTM parts catalog shows those bikes use a different pump (81207088011 / 75007088511), which is not on the maker\'s replacement list. Carbureted models have no fuel pump.
Key specs (per the maker): electric in-tank pump for gasoline, with a 0.5 in hose-barb inlet and outlet. Item weight is about 0.54 kg (1.2 lb) and item size is about 11 x 7 x 4 in.
The main photo is the maker\'s catalog image, not a photo of this exact unit.
Open box from a liquidation lot; see photos for condition and included parts. Please match your original part number before ordering.
