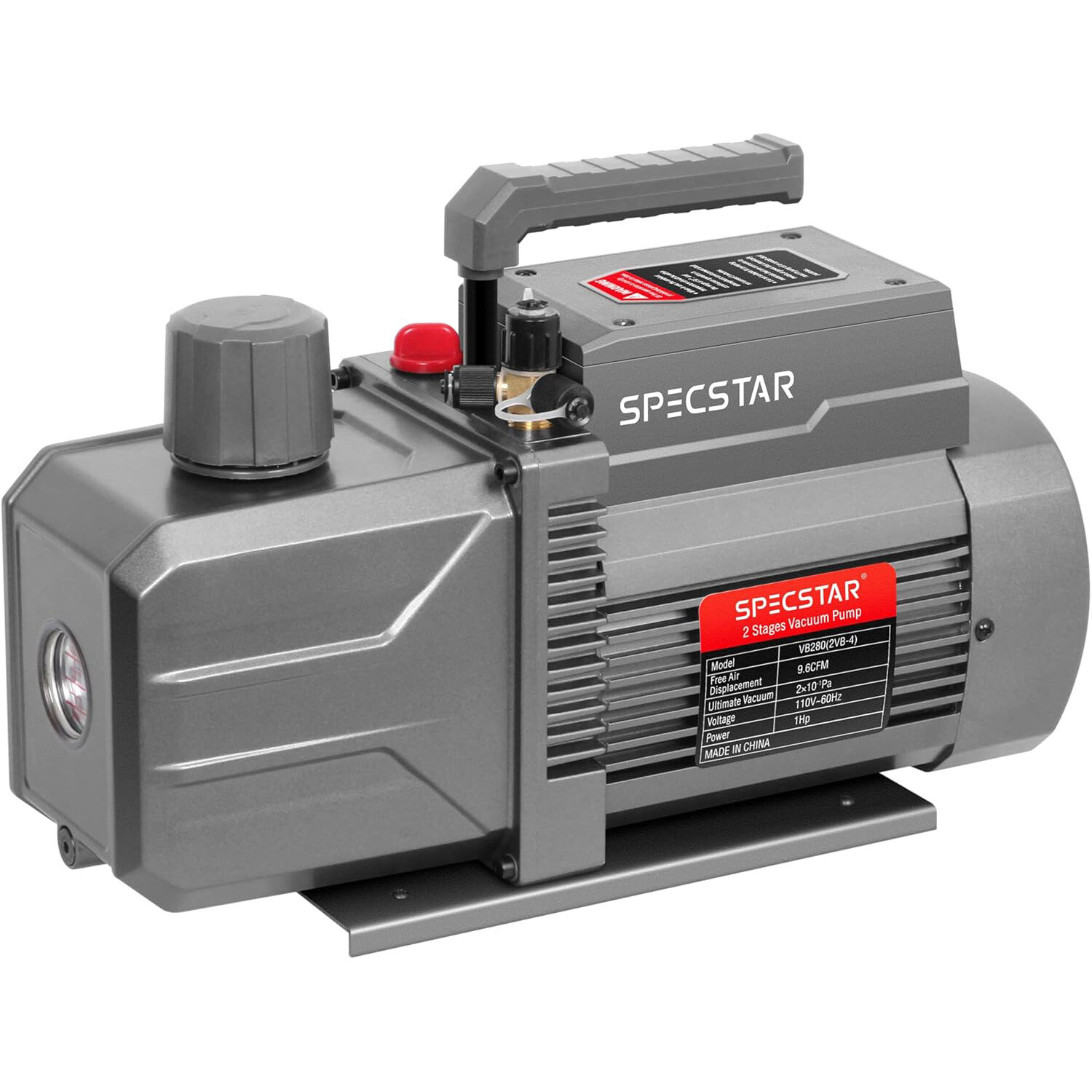

9.6 CFM 1HP Dual-Stage Rotary Vane HVAC Vacuum Pump – Professional Air Conditioning & Refrigeration Service Pump Compatible with R12 / R22 / R134a / R410A / R502 – Fast Evacuation, Deep Vacuum Performance
HIGH-QUALITY PUMP
Designed for air conditioning and refrigeration service, the Air Vacuum Pump features high ultimate vacuum and high pumping speed by taking integral cylinder construction with high precision. With a 2-stage rotary vane design, the high-quality air vacuum pump can produce a deeper vacuum.
Includes 2 bottles of 330ml vacuum oil for immediate use.
STRONG PERFORMANCE
The dual-stage air vacuum pump delivers high speed and efficient performance. With 9.6 CFM free air displacement and factory rated to 0.2 Pa (15 Micron), it ensures a faster evacuation and cleaner process. High-quality filter elements effectively reduce oil mist and improve filtration efficiency.
DURABLE DESIGN
Built with a 1 HP (750W) thermally protected motor and finned aluminum housing for fast heat dissipation and extended service life. The inlet fitting is designed for maximum airflow while preventing oil backflow, ensuring long-term reliability.
CONSIDERATE DESIGN
Equipped with a soft rubber-lined handle for easy portability. Easy-to-read oil sight glass allows direct oil level monitoring. Oil fill port and angled oil drain valve ensure fast and clean maintenance.
READY TO USE KIT
Comes with inlet fittings: 1/4 SAE, 1/2 ACME, 3/8 SAE – no need to purchase additional accessories. Suitable for HVAC and refrigeration systems using CFC, HFC, and HCFC refrigerants such as: R12 / R22 / R134a / R410A。
PRODUCT SPECIFICATIONS
- Rated Power: 1 HP (750W)
- Flow Rate: 9.6 CFM (272 L/min)
- Duty Cycle: 30 min
- Ultimate Vacuum: 0.2 Pa (1.5 Microns) / 15 Microns (2 Pa)
- Speed: 1728 r/min
- Voltage/Frequency: 110V / 60Hz
- Pump Oil Type: ISO VG 46
- Air Inlet Ports: 1/4\" SAE / 3/8\" SAE / 1/2\" ACME
PACKAGE INCLUDED
- 1 × 9.6 CFM Dual-Stage Vacuum Pump
- 2 × Vacuum Pump Oil Bottles (330ml each)
- 1 × User Manual
