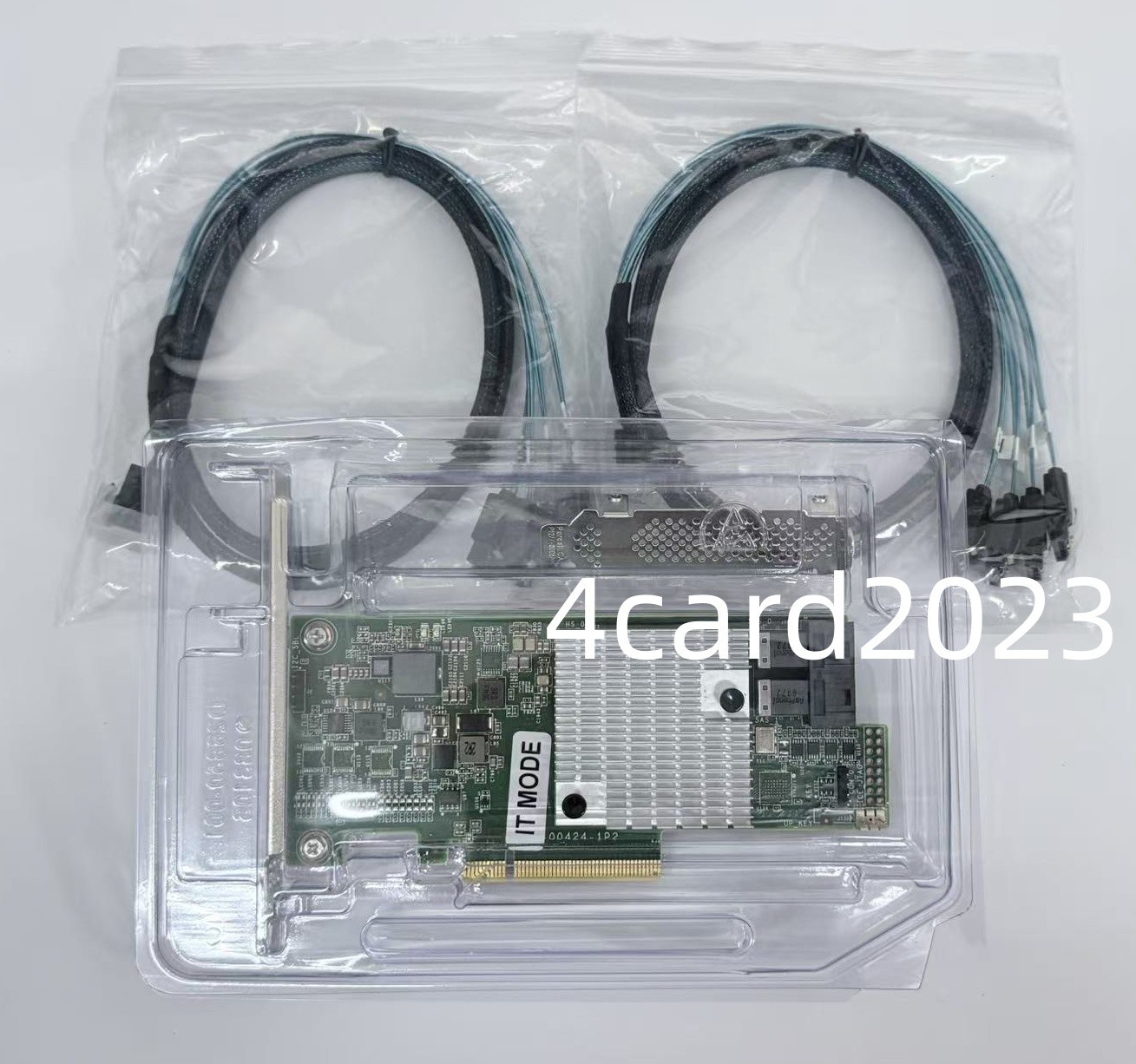

INSPUR9300-8i YZCA-00424 = LSI SAS3008 8-Port 12Gb PCIe IT mode ZFS FreeNAS unRAID 2*SFF-8643 SATA cableUS shipFW: LSI 9300-8I,P16, IT MODE, BIOS, UEFI, 8 SAS LANE Full test, Good working conditionPackage List:1pc * INSPUR YZCA-00424IT mode /w Full bracket1pc * Low bracket1pc * Carry box
2PC* SFF-8643 to 4 SATA cable(Brand New) (Cable length 1 meter.)
Inspur 9300-8IChip: SAS3008Slot: PCI Express x8
Specification:● Lifecycle: Active● Host Bus Type: x8 lane PCI Express® 3.0● Physical Dimensions: Low profile (2.6" x 6.0")● Devices Supported: 1024 Non-RAID SAS/SATA devices● Fusion MPT Support: Fusion MPT™ 2.5● Internal Connectors: 2 Mini-SAS HD SFF8643● Internal Ports: 8● Operating Temperature: 0°C to 55°C● Operating Voltage (V): +12V +/-8%, 3.3V +/-9%● OS Support: Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware , FreeBSD See the downloads page for details on versions The HBA supports Solaris 10 and Oracle® provides a built in driver; installation of an LSI driver is not required.● PCI Power: 13W● Cable Support: Passive Copper● I/O Controller: LSI SAS3008● MTBF: > 2,800,000 hours● Operating Humidity: 5% to 90% Non-condensing● Brackets: Full height and low profile vented● Regulatory Certifications: Australia/New Zealand (AS/NZS 3548), Canada (ICES-003), EMC: Class B-US (CFR 47, P15B), Europe (EN55022/EN55024), Japan (V-3/02.04), Korea (N-B 2-0001-404), RoHS, Safety: EN60950, WEEE● Data Transfer Rates: 12Gb/s SAS-3 Compliant
