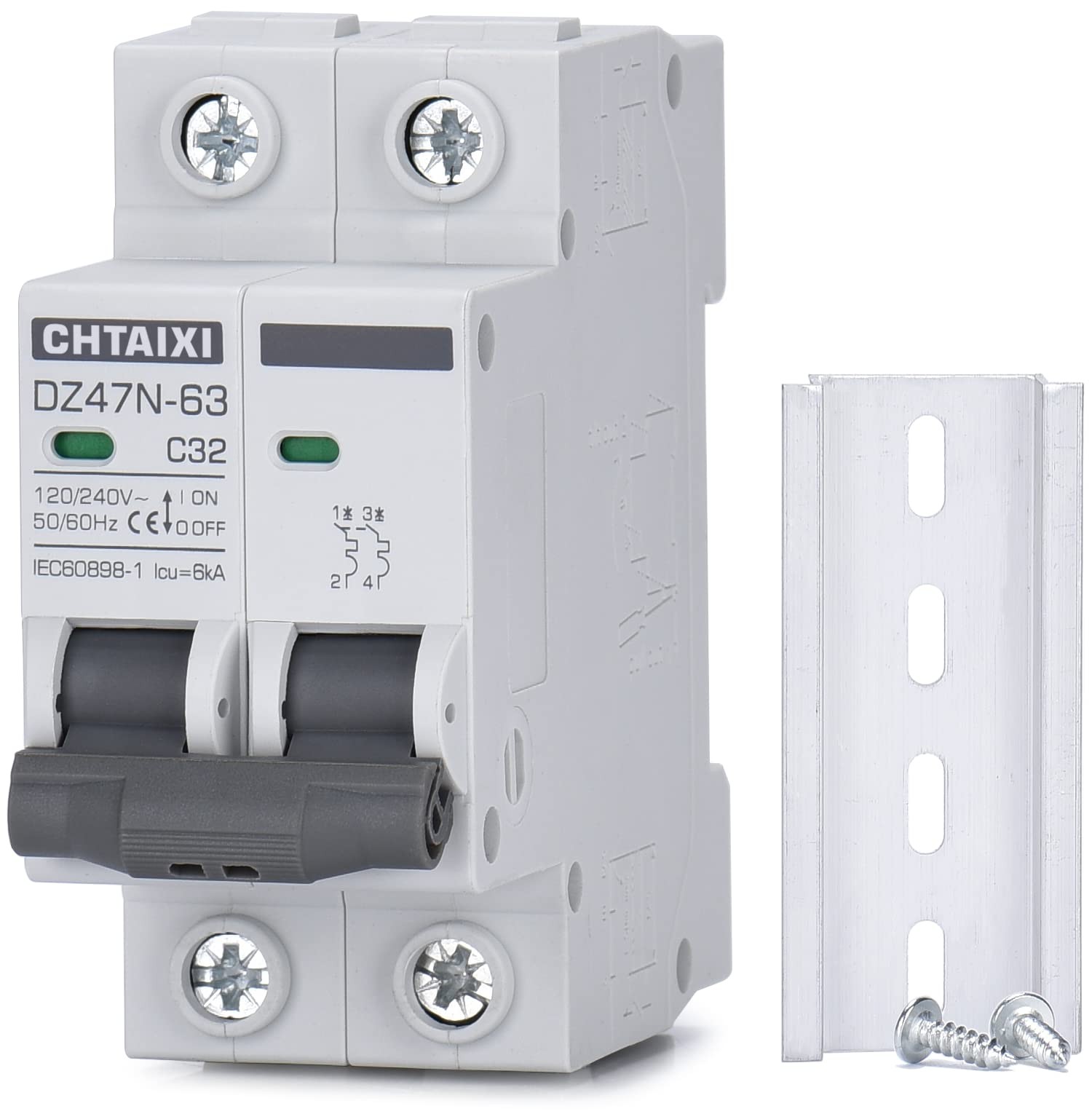

AC Miniature Circuit Breaker, 32 Amp 120V/240V 2 Pole DIN Rail Mount Circuit ... For Sale

• FUNCTIONS: Used to protect 110V 120V 220V 230V AC circuit from overload and short circuit damage, and can also be used for control and isolation.
• CURVE C: Magnetic trip range 5-10 times rated current.
• QUALITY: Silver alloy , flame retardant material shell, color indicator.
• APPLICATION: Can be used in solar ac systems, RV, home circuits, or other 50/60Hz AC systems.
• INSTALLATION: Screw clamp wires, 35mm DIN rail mount.

Main product name: DZ47N-63 product type：Miniature Circuit Breaker rated operational voltage: 120V/240V AC rated current [In]: 6A / 10A / 16A / 20A / 25A / 32A / 40A / 50A / 63A poles: 2 Pole trip unit technology: Thermal-magnetic curve code: C breaking capacity: 6 kA Ics=Icu Complementary rated impulse withstand voltage [Uimp]: 4 kV mechanical durability: 10000 cycles electrical durability: 4000 cycles mounting : 35 mm DIN rail net weight: 0.18 kg tightening torque: 2.5 N.m standard: IEC60898-1 operating temperature: -13°F(-25℃) ~ 140°F(60℃) Warm tips Use wire size according to rated current. package includes: 1 x Miniature circuit breaker 1 x DIN rail 2 x Screws
