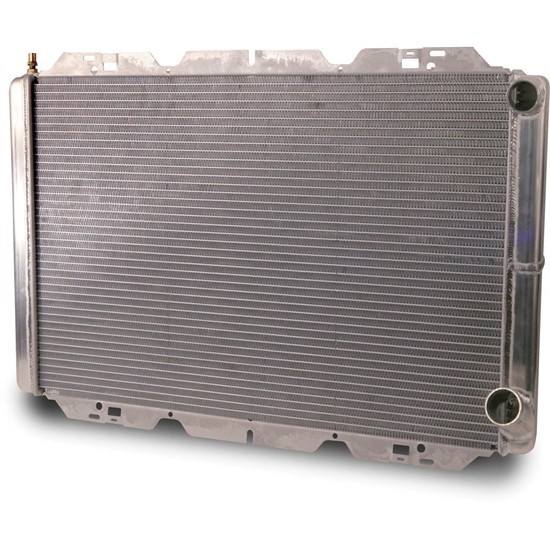

AFCO 80120N Double Pass Racing Radiator, 30-7/8 In. Wide, 1.5 In Inlet For Sale

Engineered to provide more cooling over standard type radiators, with less than 2 oz. of added weight, The common temperature drops are 10-20 degrees when replacing a standard configuration radiator of equal core size, Radiators gain their efficiency by first passing the fluid over the top half of the radiator and then the bottom half, Built using a 360 degree TIG-welded baffle that splits the radiator core into two sections, Made entirely of aluminum and weighs only 15 lbs. AFCO 80120N Double Pass Racing Radiator, 30-7/8 In. Wide, 1.5 In Inlet Sku # 10680120N Mfr. Part # 80120N Condition New Brand AFCO Sold Each Details

AFCO Double Pass provide more cooling over standard type radiators, with less than 2 oz. of added weight. Common temperature drops are 10-20 degrees when replacing a standard configuration radiator of equalcore size. Keeps your mind off the water temp and puts it onto the race track.

Double pass radiators gain their efficiency by first passing the fluid over the top half of the radiator and then the bottom half, giving the radiator the ability to dissipate heat twice.

AFCOuses anexclusive 360 degree TIG-welded baffle that splits the radiator core into two sections. This 360 degree baffleeffectivelycreates two radiators out of one and assures that you wont have any coolant that has entered the radiator but never made it across the core. This is superior to utilizing silicone to seal internal baffles, or worse, a partial weld that allows the coolant to bypass the radiator core completely.

360 Degree Welded - Internal baffle ensures no "short cuts" past the baffle due to internal leaks.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Item DetailsFiller Location: None
Outlet Angle Up/In: 30°/10°
Dry Weight: 15 LBS
1/4 FMT Pipe Fitted w/ Air Bleed Specs Sold in Quantity Each Notes 1/4" NPT air bleed fitting. MFG. Part # 80120N Radiator Style Double Pass Radiator Flow Direction Crossflow Material Type Aluminum Inlet Location Upper passenger side Outlet Location Lower passenger side Row Quantity 2 Tube Size 1.00" Overall Width Range 30.00" to 30.99" Overall Width 30.75" Overall Height Range 21.00" to 21.99" Overall Height 21.13" Overall Thickness 3.125" Core Width Range 27.00" to 27.99" Core Width 27.38" Core Height Range 18.00" to 18.99" Core Height 18.5" Core Thickness 2.25" Finish Satin Cooling Fan Not Included Transmission Cooler No Shroud Included No Inlet Size 1.5 Fan Included No Radiator Cap Included No Related Items / Suggested Parts Speedway Electric Fan Relay Wiring Kit SPAL Thermoswitch Relay and Wiring Harness Kit Electric Fan Relay Wiring Kit, Pro Series Painless Wiring 30103 Fan Relay w/ Thermostatic Switch, 185/175 90 Degree Silicone Radiator Hoses Stepped Silicone Radiator Hose 1.25 - 1.50 Inch Flexible Radiator Hose Kit, 12 Inch Polished Radiator Coolant Overflow Expansion Tank, 3 x 10 In. Aluminum Radiator Coolant Overflow Expansion Tank 8AN 13 Inch Stainless Steel Coolant Expansion Overflow Tank Speedway 15 Inch Stainless Steel Coolant Expansion Overflow Tank Polished Radiator Coolant Overflow Expansion Tank, 3 x 16 In. Tech Support We\'re here to help before and after your purchase. If you have a question or need assistance with one of our products, please contact us through Messaging and a knowledgeable Speedway Motors team member will be happy to help. About Speedway Motors is America’s Oldest Speed Shop® and has been a trusted source for specialty rodding and racing products and friendly expert advice for more than 74 years. Founded in 1952 by “Speedy” Bill Smith – a racer and street rodder himself – Speedway has grown from a one-man operation to become the world’s largest manufacturer, distributor and retailer of street rod and racing products. Our industry-leading fast delivery is the result of same-day shipping from our state-of-the-art, centrally located 500,000 sq. ft. headquarters. Speedway’s size offers customers unmatched product selection and low pricing, while our excellent technical support and customer service have made us a recognized leader in the rodding and racing industries.
