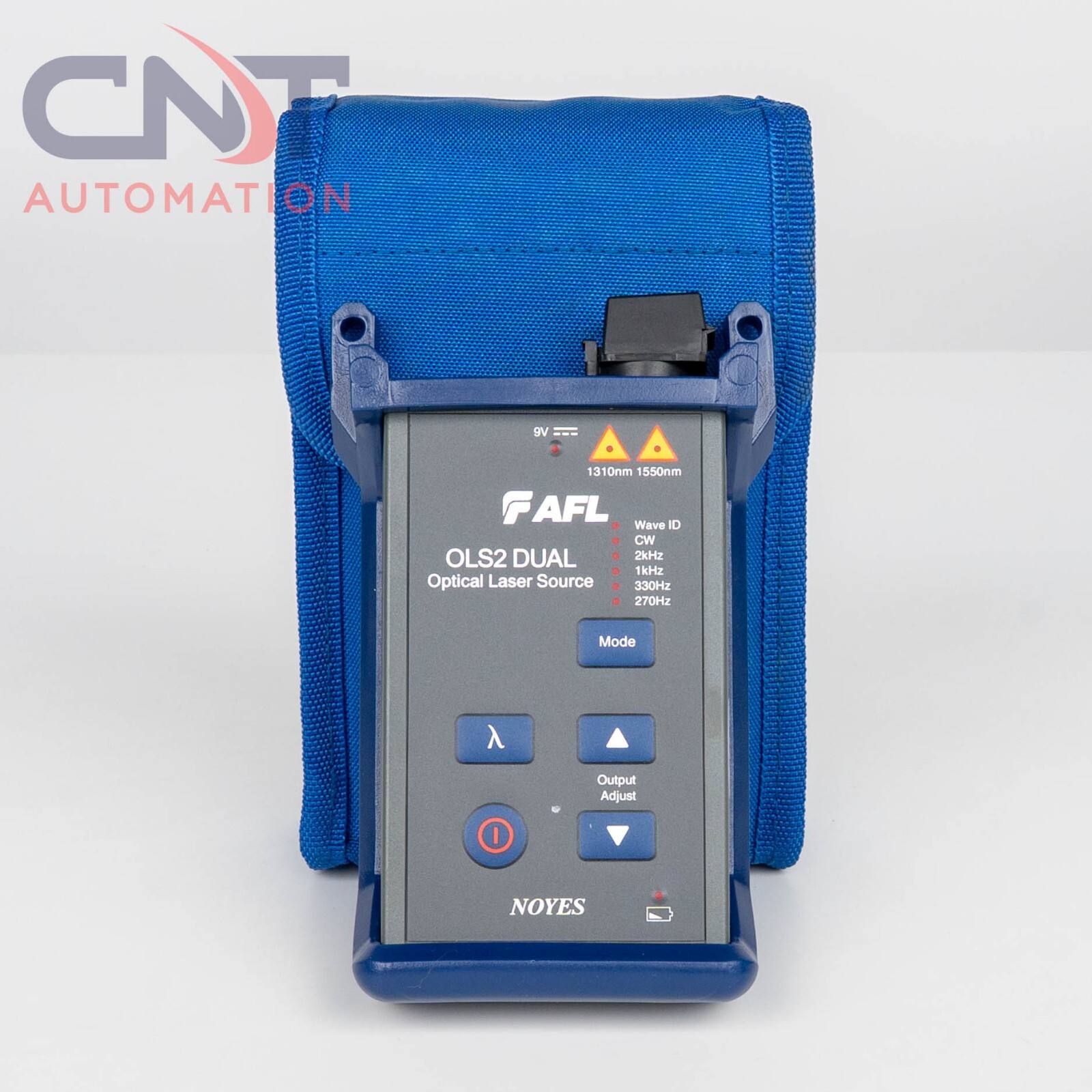

AFL Noyes OLS2-DUAL LS2D UCI Handheld Optical Laser Source 1310nm/1550nm For Sale

We classify new items to be units that have not been used andshow no signs of previous use. New items may not include theoriginal packaging.

AFL Noyes OLS2-DUAL LS2D UCI Handheld Optical Laser Source 1310nm/1550nm with soft case. Unit is new and is overstock inventory which has not been used. Includes a 60-Day warranty. For questions please contact us. We appreciate your business!

Product Features:

The AFL OLS2-Dual SC Single Mode Laser Light Source features 1310 nm and 1550 nm LASER output from a single SC output port and offers several modes of operation. Each wavelength may be transmitted individually at CW or with user selectable modulated Tone. The designated LED indicator on the source will indicate features such as the currently enabled operating mode, any emitted wavelength(s), battery charge status, and the presence of an external power source by lighting up. Output is stabilized to ensure accurate test results per current TIA/EIA requirements.

Designed for the real world: AFL’s light sources were designed to meet the demands of the outside plant environment. They withstand the one-meter drop and have splash resistant controls that are easy to use, even with gloves on.

Flexible and efficient: A range of field-swappable output adapters enables access for cleaning optical ports and supports multiple connector styles. The efficient design provides long test time from globally available AA batteries. External power adapter available for extended testing or lab situations.

Reduce test time and errors: Wave ID (Triple, Dual, or Single) decreases test time while reducing technician errors and CW mode provides continuous output (no encoding).

Supported output modes: Test Tone (2000, 1000, 330, 270 Hz) for use in fiber identification with AFL brand power meters, OTDRs (with fiber end access) or Optical Fiber Identifier (OFI) products for non-intrusive, mid-span testing.

Highlights:

• Rugged, dependable
• Generates up to three Wave ID wavelengths simultaneously - slashing test time
• Field-swappable connector adapters for maximum flexibility
• Long battery life from globally available AA batteries

Applications

• Certify multimode and single-mode links per TIA/EIA standards
• Link loss measurements
• Pair with power meters, OTDRs or OFIs for testing
• Fiber identification for splicing and continuity checking

Specifications

MODEL

OLS1-DUAL

(Single Port b)

OLS2-DUAL

(Single Port)

OLS4

OLS4

Wavelength

850 ±30 nm

1300 +30/-20 nm

1310 ±20 nm

1550 ±20 nm

1310 ±20 nm

1550 ±20 nm

850 ±30 nm

1300 +30/-20 nm

Spectral Width

45 nm (typ)

120 nm (typ)

5 nm (max)

5 nm (max)

5 nm (max)

45 nm (typ)

120 nm (typ)

Emitter Type

LED

Laser

Laser

LED

Safety Class

Class I FDA 21 CFR 1040.10 class="TableParagraph" style="box-sizing: border-box; margin-top: 0px; margin-bottom: 1rem;">Output Power

0 dBm, 9 μm single-mode d

0 dBm, 9 μm single-mode

Output Stability

±0.1 dB over 8 class="TableParagraph" style="box-sizing: border-box; margin-top: 0px; margin-bottom: 1rem; margin-left: 42.4pt; line-height: class="TableParagraph" style="box-sizing: border-box; margin: 0.85pt 0in 0.0001pt class="TableParagraph" style="box-sizing: border-box; margin: 0.25pt 0.2in 0.0001pt 0.3in; text-indent: 7pt; line-height: 10pt;">±0.1 dB over 8 class="TableParagraph" style="box-sizing: border-box; margin-top: 0px; margin-bottom: 1rem;">Tone Output

N/A

270 Hz, 330 Hz, 1 kHz, 2 kHz

2 kHz

N/A

Available Adapters

SC FC, ST, LC

Power

Battery Life

Operating Temperature

-10 °C to 50 °C, 95 % RH (non-condensing)

Storage Temperature

-30 °C to 60 °C, 95 % RH (non-condensing)

Size (H x W x D)

Weight

0.29 kg (0.65 lb)

Notes:

1. Alll specifications valid at 25°C unless otherwise specified.
2. May be used to test 50 or 62.5 μm fiber with supplied mandrels.
3. Output power will be approximately 3 dB less if a 50 µm mandrel-wrapped jumper is used instead of a 62.5 µm mandrel-wrapped jumper.
4. Adjustable 2 dB.
5. All OLS products come with the UPC optical port.

AFL OLS2-DUAL LS2D UCI Optical Laser Source Protective Rubber Boot Soft Case
