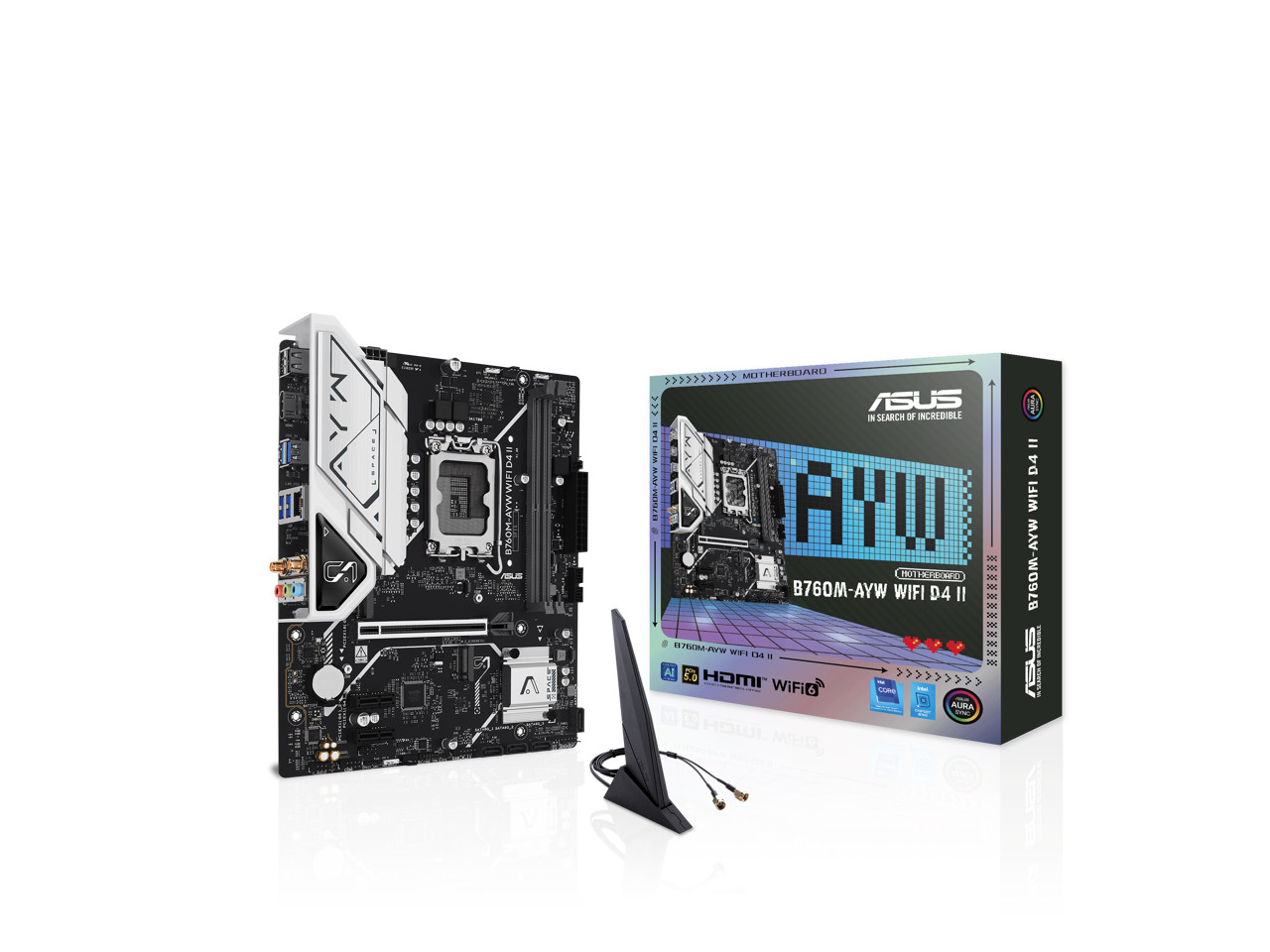

ASUS B760M-AYW WIFI D4 II LGA 1700 Intel B760 Micro ATX Motherboard For Sale

Learn more about ASUS B760M-AYW WIFI D4 IIModelBrandASUSModelB760M-AYW WIFI D4 IISupported CPUCPU Socket TypeLGA 1700CPU TypeCeleron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium GoldChipsetsChipsetIntel B760MemoryNumber of Memory Slots2x288pin (DDR4)Memory StandardDDR4 2133 / DDR4 2400 / DDR4 2666 / DDR4 2667 / DDR4 2933 / DDR4 3200 / DDR4 3333 / DDR4 3400 / DDR4 3466 / DDR4 3600 / DDR4 3733 / DDR4 4000 / DDR4 4266 / DDR4 4400 / DDR4 4600 / DDR4 4800 / DDR4 5000 / DDR4 5066 / DDR4 5333Maximum Memory Supported64GBChannel SupportedDual ChannelExpansion SlotsPCI Express 5.0 x161 x PCI Express 5.0 x16PCI Express x12 x PCIe 4.0 x1 slotsStorage DevicesSerial ATA (SATA)4 x SATA 6Gb/sM.2Intel Core Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)SATA RAID0/1/5/10Onboard AudioAudio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Rear Panel PortsBack I/O Ports4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMITM port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacksInternal I/O ConnectorsOnboard USB1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 portsOther ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headersMiscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x COM port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front Panel System header
Software FeatureBIOS Feature128 Mb Flash ROM, UEFI AMI BIOSSoftwareASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 2+
- Two-Way AI Noise Cancellation
ASUS DriverHub
-ASUS CPU-Z
AI Suite 3
- DIGI+ VRM
- PC Cleaner
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ ModeWindows 11SupportedPhysical SpecForm FactorMicro ATXDimensions (W x L)9.6\" x 8.3\"Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connectorFeaturesFeaturesASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS EZ DIY
- ProCool
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
Aura Sync
- Addressable RGB Gen 2 headersPackagingPackage ContentsCables
2 x SATA 6Gb/s cables Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x I/O Shield
1 x M.2 Rubber Package
1 x Screw package for M.2 SSDDocumentation
