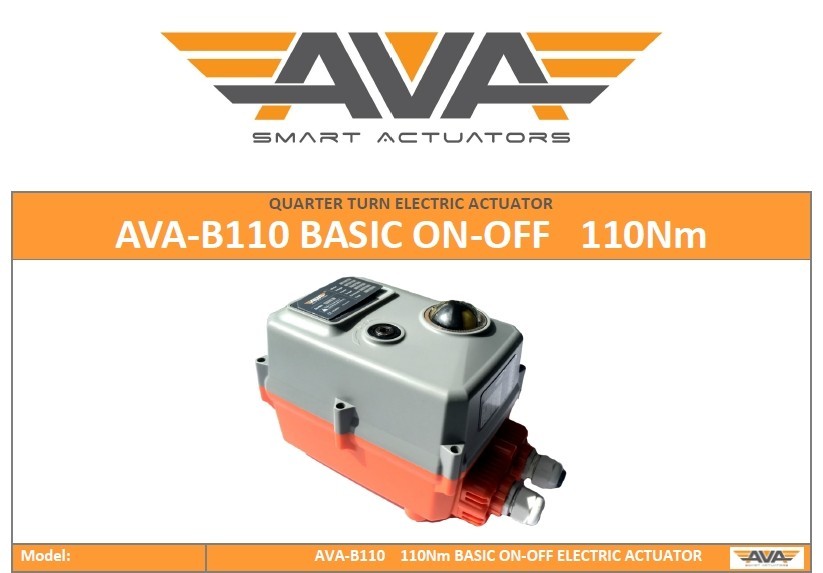

The AVA-B114-6PHB-17 is a heavy-duty basic mechanical fail-safe electric valve actuator from the AVA Basic Series 110. It is the low-voltage version, combining a traditional cam/micro-switch setup with internal super-capacitors for emergency backup power.
Key Specifications• Series: B110 Basic Series (specifically the B114 Failsafe configuration).• Operation Type: Failsafe Open or Closed (On/Off). Under normal conditions, it acts as a standard Open/Close actuator. If the main power fails, its internal super-capacitors automatically drive the valve to your pre-set safe position.• Torque Output: 110 Nm (Newton-meters) maximum breaking torque (approx. 974 in-lbs), commonly used to automate larger 4-inch to 6-inch quarter-turn ball or butterfly valves.• Voltage: 24V AC/DC low-voltage multi-voltage power supply (represented by the \"6\" code).• Control Input/Output: Standard On/Off command loop via a 3-wire system (represented by the \"B\" code).• Drive Size: 17mm female double square/star output drive with an ISO 5211 direct mounting pad.
Core Features
- Mechanical Cam Control: Uses physical limit micro-switches triggered by adjustable internal cams to set the open and closed end-of-travel limits.
- Position response: Equipped with volt-free auxiliary switches to send open/closed status signals back to your PLC or control room.
- Weatherproof Enclosure: Features a durable, IP67-rated plastic (PC+PET) casing (\"P\") built for indoor or outdoor installations.
- Environmental Protection: Includes an integrated internal anti-condensation heater (\"H\") to prevent moisture buildup in humid or cold environments.
- Manual Override: Standard emergency mechanical operation via an included hex wrench key (power must be isolated before manual use).
B110 Basic Series, Failsafe Open or Closed (On/Off), 110 Nm maximum breaking torque (approx. 974 in-lbs), 24V AC/DC low-voltage multi-voltage power supply, Standard On/Off command loop via a 3-wire system with 17mm female double square/star output drive with an ISO 5211 direct mounting pad.
Important Note: Actuator only; does not include valve or mounting hardware. Photos are representative -- appearance may vary.
The AVA range of rugged industrial weatherproof reversible electric actuators offer surprisingly high torque capability from a very compact housing, making them ideal in most applications, but particularly where space is limited.
Valvebroker overstock from Basiks Valves subsidiary of Plast-O-Matic
