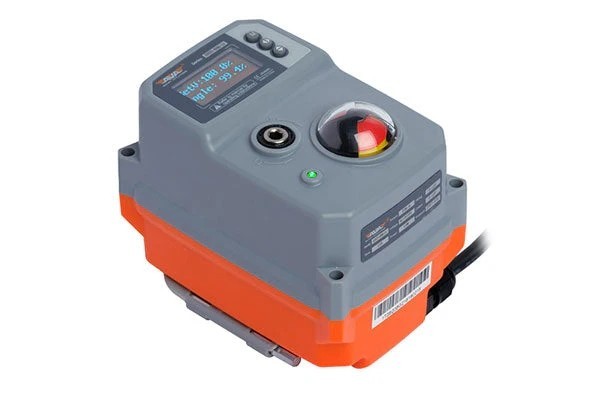

- ACTUATOR, ELECTRIC, 95-265V AC/DC, TORQUE RATING: 20 NM, WITH 14MM SQUARE DRIVE, SMART MODULATING FAILSAFE (0-10V DC), FOR VALVE SIZE: 3/8 IN.-2 IN., FOR BASIKS EBT/EAV/TEAV/EBU SERIES AND OTHER ISO MOUNT VALVES ASAHI
The AVA-S20.26-5PHU-14 is a 95-265V AC/DC Smart Modulating & Failsafe electric valve actuator from the AVA Smart Series 20 line. It is an advanced, ultra-compact quarter-turn actuator commonly used to automate small-bore valves (typically 3/8\" to 2\" ball valves or small butterfly valves).
IP67 compact electric actuator
• Smart Modulating & Fail-Safe
• Multi-voltage capable 95-265V AC/DC
• All external electrical connection via supplied pre-installed cable.
• A bright external OLED screen
• External push buttons for local control and setting adjustments
• Emergency mechanical manual override
• Local visual and remote electrical position confirmation
• F03, F04 and F05 ISO5211 mounting, 14mm square drive
• Manufactured to ISO9001 standards
The direct Asahi/America equivalent to the AVA-S20.26-6PHP-14 electric actuator is the Asahi Series 19 Smart SAV Modulating with Internal Failsafe Battery/Capacitor - S20 Size electric actuator.Asahi/America co-brands and integrates this exact smart compact platform directly into their \"Series 19\" product line. The .26 suffix indicates a highly specific combo unit that features both modulating control (positioning) and failsafe backup in the same housing.
Part Number Breakdown & Specifications
AVA – Manufacturer Series: Belongs to the standard AVA industrial electric actuator family.S – Actuator Class (Smart Series): Indicates it is part of the electronic \"Smart\" line. Unlike basic models with physical microswitches, it features a digital encoder, magnetic position sensing, and an external 1.3\" OLED screen with touch-button controls.20 – Torque Output: Delivers a maximum operating torque of 20 Nm (Newton meters / ~177 in-lbs)..26 – Functionality Configuration: Specifies a combined Modulating and Failsafe configuration. It positions the valve dynamically using an input signal and uses an internal capacitor pack to drive the valve to a pre-set safe position (open or closed) if external electrical power is entirely lost.5 – Voltage Code: Indicates the unit runs on 95-265V AC/DC high -voltage power.PHU – Control / Wiring Scheme: PH denotes a specialized firmware/feature set with an electronic torque limiter and speed controls.U represents the specific modulating input type, indicating 0–10V DC control. (Whereas a \"P\" at the end typically indicates a 4–20mA signal).14 – Drive Connection Size: Features a standard 14mm female octagon/star drive output utilizing an ISO 5211 mounting pad (typically F03, F04, or F05) for universal valve coupling
Description
The AVA range of Smart modulating industrial weatherproof reversible electric actuators offer surprisingly high torque capability from a very compact housing, making them ideal in most applications, but particularly where space is limited.
Employing local controls via a bright external OLED screen and push buttons, the AVA modulating, fail safe actuator offers many innovative solutions to create a very user-friendly actuator to mount, commission, connect and operate.
Valvebroker overstock from Basiks Valves subsidiary of Plast-O-Matic
