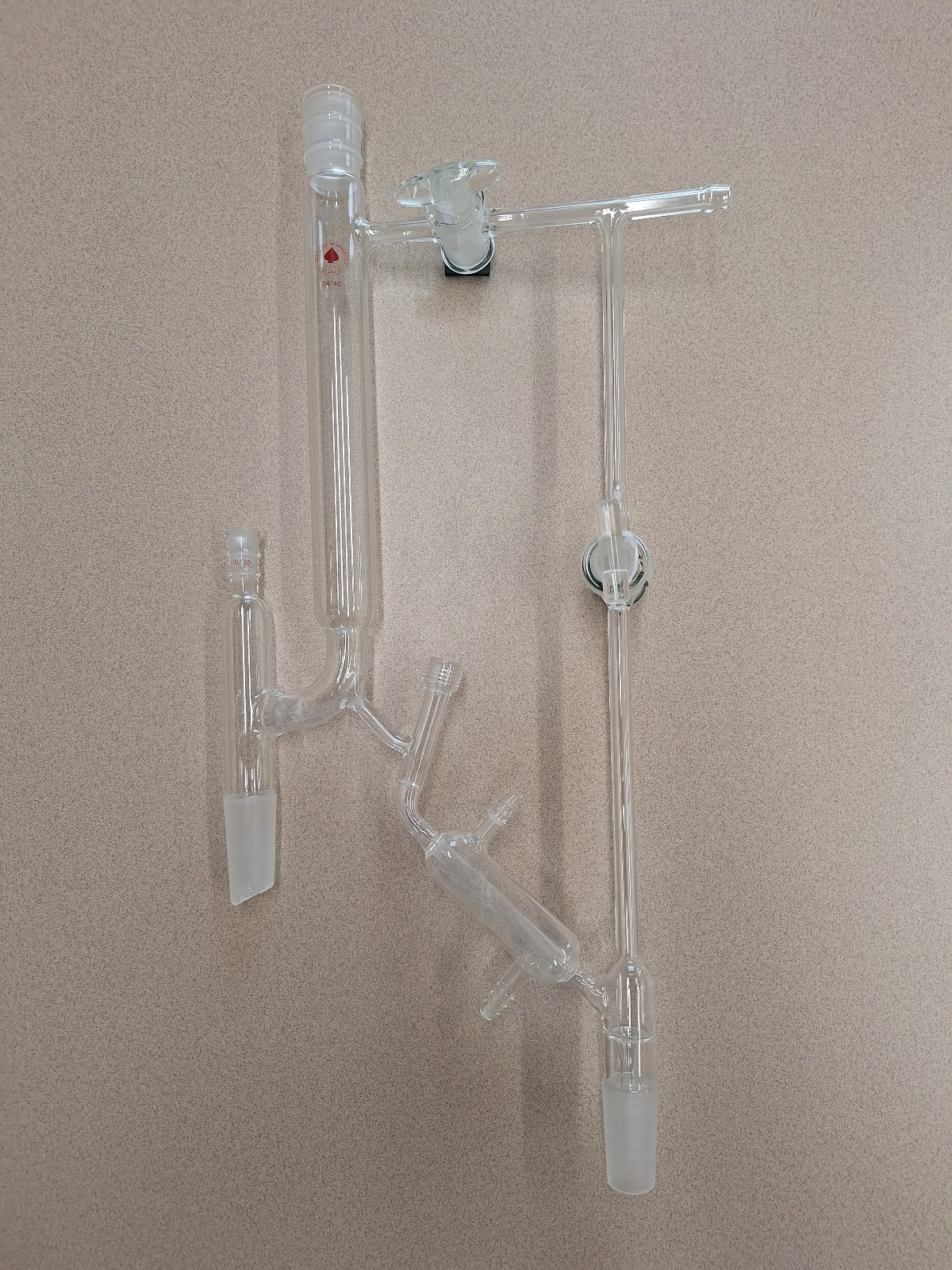

6613 DISTILLING HEAD, Vacuum TypeAce Vacuum Distillation/Distilling Head w/ Glass Stopcocks 24/40 and 10/30Cat number #6613As it is on the photo. NO cold finger included, for finger add $50.Small chip that does not affect functionality. See photo.
6613-12 24/40 distilling head
Uses finger type condenser and 0-3mm PTFE stopcock for reflux control. Glass stopcocks on manifold and reflux arms can be used to isolate head from receiver so that receiver contents can be removed without disturbing the vacuum in the system. With condenser on takeoff arm and 10/30 thermometer joint for 76mm immersion thermometer. Both column joint and receiver joint are 24/40. Finger condenser is approx. 20.3cm long with a 24/40 joint.Hose connections are size C & D.
For cold finger only, see 5960.
Compare to model #7792, but has an extra Liebig condenser build in.
