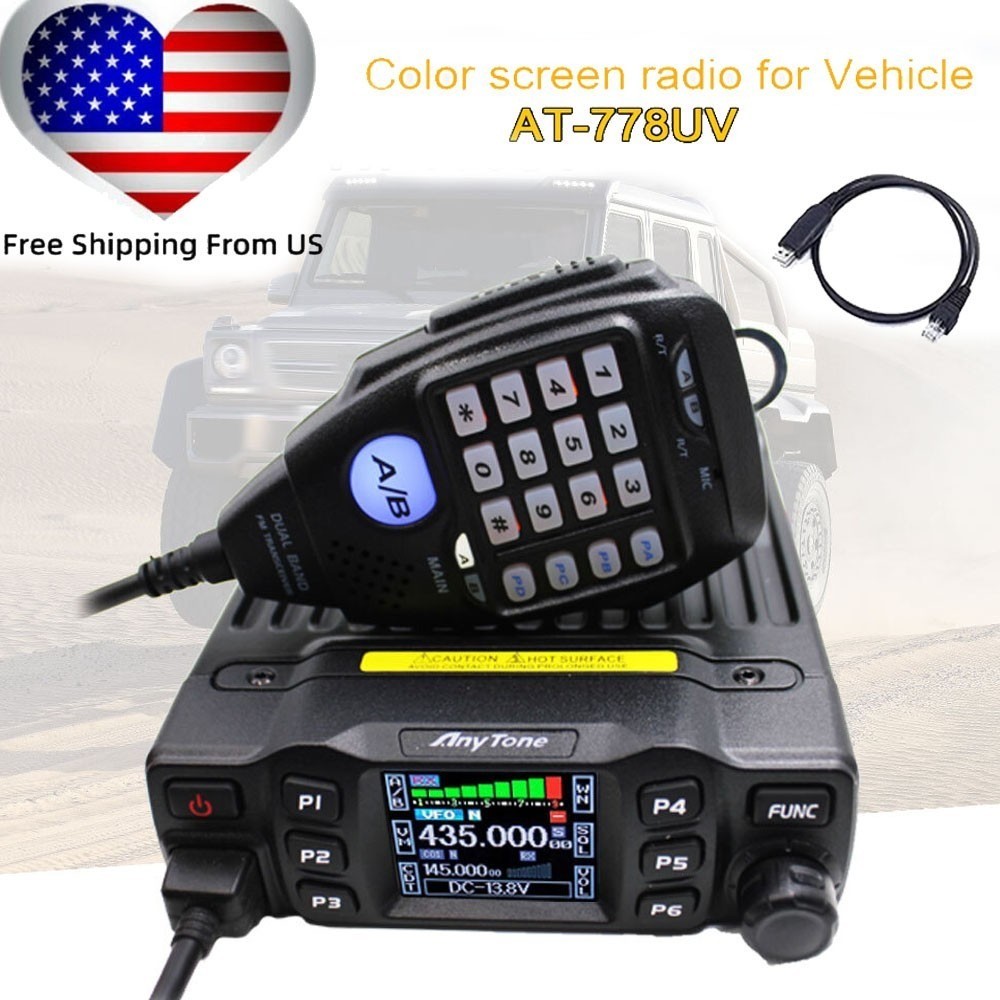

Anytone AT-778UV II VOX Second Generation Dual Band 25W Ham Car Radio + USB Programming Cable
Specifications:
General:
Frequency Range: VHF:136-174MHz UHF:400-480MHz
Number of Channels:200 channels
Channel Spacing:25K(Wide Band) 20K(Middle Band) 12.5K(Narrow Band)
Phase-locked Step:2.5KHz, 25KHz,30KHz,50KHz
Operating Voltage:13.8V DC ± 15%
Frequency Stability:±5ppm
Operating Temperature:-20℃~+60℃
Weight:About 0.51Kg
Receiver(ETSI EN 300086 standard testing)
Sensitivity(12dB Sinad): Wide band: ≤ 0.25μV Narrow band:≤ 0.35μV
Adjacent Channel Selectivity: Wide band: ≥60dB Narrow band:≥60dB
Audio Response Wide band: +1～-3dB(0.3～3KHz) Narrow band:+1～-3dB(0.3～2.55KHz)
Hum&Noise :Wide band:≥45dB Narrow band:≥40dB
Audio distortion:≤5%
Audio power output:>2W@8Ω
Transmitter(ETSI EN 300 086 standard testing)
Power Output: Wide band:25W/15W/5W Narrow band:25W/15W/5W
Modulation:Wide band:16KΦF3E Narrow band:11KΦF3E
Adjacent Channel Power:Wide band:≥70dB Narrow band:≥60dB
Hum&Noise:Wide band:≥40dB Narrow band:≥36dB
Spurious Emission:Wide band:≥60dB Narrow band: ≥60dB
Audio Response:+1～-3dB(0.3～3KHz) Narrow band:+1～-3dB(0.3～2.55KHz)
Audio Distortion:≤5%
