Ashland 4991632 Active Concealed Multipoint Lock Gearbox 60/92 2-3/8 Backset For Sale

Active multipoint lock gearbox with concealed shootbolt rods at the top and bottom of the door panel. Used by several door manufacturers including Caradco, Jeld-Wen, and others. This is the gearbox only; rods and faceplate are not included.

Specifications:

• Type: Active Concealed Multipoint Lock (Gearbox only)
• Configuration: 60/92
• Backset: 2-3/8 inch (60mm)
• Standoff: Short, 3/8 thick plastic

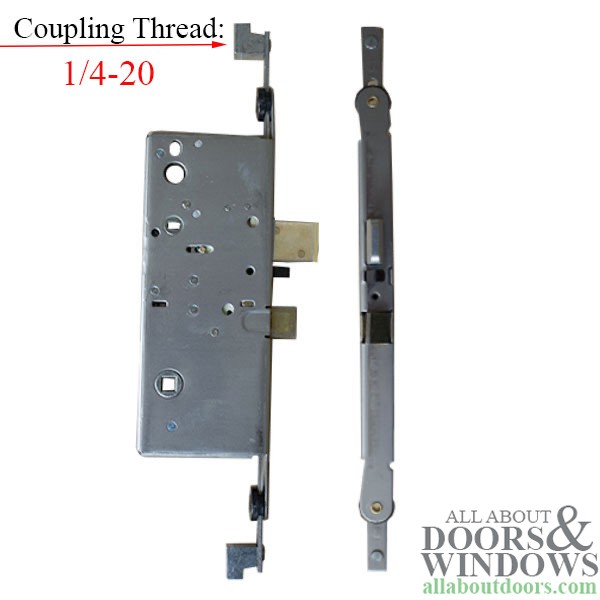

• Coupling Thread: 1/4-20
• Faceplate Attached: No
• Faceplate Corners: Radius
• Markings: Patent No. 6,209,931

Compatibility:

• Used by Caradco, Jeld-Wen, and other door manufacturers
• Compatible with Ashland Faceplate 40162
• Does NOT fit Marvin doors
• 70mm backset version available as part #4991635

Package Contents:

• (1) Ashland 4991632 Active Multipoint Lock Gearbox
• Rods NOT included
• Faceplate NOT included

Operation:

• Lift handle to extend rods
• Turn key or thumbturn to extend deadbolt

Change Handing:

• Insert screwdriver into slot behind latch
• Pull down on handing release; latch pops out
• Rotate latch and push back into lock case
• Always check function of lock before closing door

Notes:

• Faceplates are available with either square or radius corners
• Faceplate is riveted to the lock case
• Rod guide brackets at the top and bottom of the door must be removed to remove the rods. Rods have a hex shape that accepts an extended socket
• In some cases the lock body can be removed with the bottom rod still attached, and reinstalled the same way
