Automatic Dual Door Operator Auto Open Simultaneously by Handicap Push Button For Sale

Olide Automatic Double Door Operator,Auto Open Dual Doors Simultaneously by One Handicap Push Button,Parameters Adjustable via Hand Programmer Automatic Swing Door,Max Loading Door Weight-264lbs

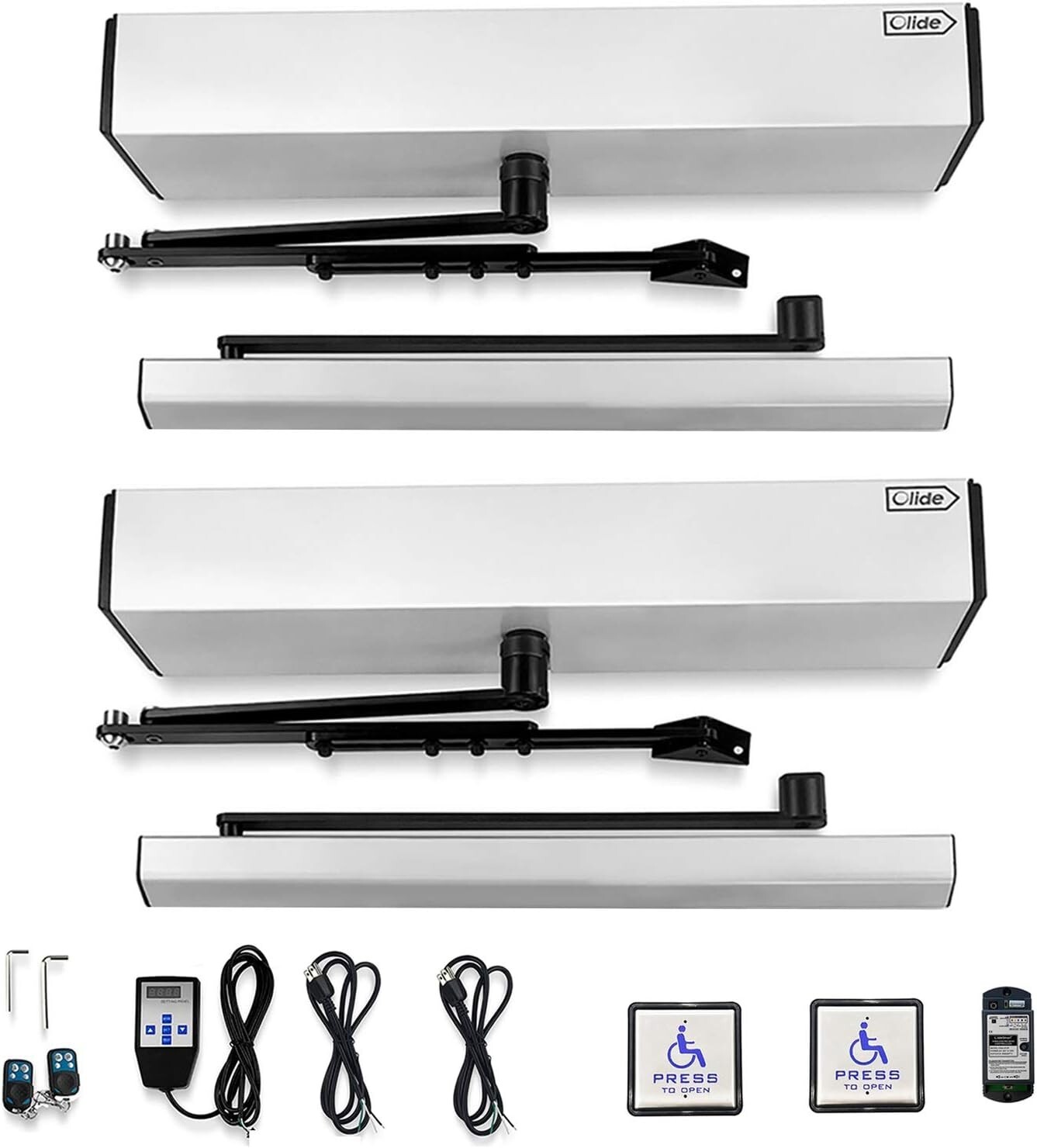

One complete unit automatic double door operator Includes

• 2 pcs Wireless and not hardwired remotes,working frequency is 315MHz
• 2 pcs 304 Stainless steel square 4.5''2.4G wireless&wired handicap push switches and 1pcs high stability receiver Olide-510F
• 2pcs Outswing bracket push arm and 2pcs inswing bracket pull arm
• Parameters adjusting hand programmer
• 4 pcs auto door attention stickers
• Screw and screw anchors
• Black and white manual
• Standard plug and cords

The items automatic double door opener is 2units Olide-120B comes with 2pcs wireless&wired handicap push button and 1pcs receiver,they are used for double swing doors.

2 swing doors can be open at the same time by one pcs push button.

This dual swing door open system operates in both automatic and manual modes,In manual mode, door opens with very little pressure and closes slowly providing easy operation for handicapped or pedestrians.

With advanced wide voltage technique,it makes the double swing door Olide-120B highly adapt to voltage fluctuations between 110-220VAC +/-10%, it can be used in areas almost of the world whether it is a peak in urban power or insufficient power supply in remote areas.More energy saving and durable than ordinary single input voltage.

The Olide-120B is a dual door auto open kit for both inswinging and outswinging doors and one wireless&wired stainless handicap push on each side for automatic doors. This automatic dual door opener is designed to secure your door and have the capabilities of automatically and manually opening and closing it as well. A simple yet secure system for areas such as offices, hospitals, elderly homes, banks, commercial locations, and much more.

• [Wireless&Wireless Handicap Push Buttons for Disabled]One pcs handicap push button open 2 swing doors simultaneously;Comes with stainless steel wireless&hardwired handicap push switch,stable and high sensitivity,wired and wireless can be easily switched
• [Safe]Automatically re-open door if it notices an object in the closing path,safe for people access
• [Easy Program]All of parameters can be easily programmed via handheld programmer of electric double swing door,such as hold open time, closing force,lock mode,two units automatic door opener can be adjusted by one hand programmer one by one
• [Easy Installation and Debug]USA Technical phone support is available,you can call for help when there is any installation problem
• [Double Doors can be Open Simultaneously by One PCS Handicap Push Button]Each side mount one pcs ada push button,one pcs push button can open dual swing doors at the same time

Dual Swing Doors Simultaneously Open by One Pcs Handicap Push Button

Easy Program and Debug Front Door Automatic Door Opener Closer with 1PCS Wired Surface-Mounted Face Recognition Sensor via Handheld ProgrammerAlways Keeping Door Open Available via adjust parameter"hold-open time"to"--"
Integrated High-Efficiency Working Controller and Wide Voltage, Durable Motor

Know more details about part of wireless handicap door

Wireless Fob Keys

• The remotes that come in this kit are wireless and not hardwire
• The remotes working frequency is 315MHz
• You can add up to 15 wireless devices per automatic door opener

Wireless Handicap Push Button Olide-510

• Wireless and wired mode can be easily switched
• Power Supply:3V(2*1.5V AA battery)
• Emission Current:12.4mA
• Life of Battary: more than 20000times
• Emission distance: more than 30m
• Static current :≤10UA
• Working temperature:-42℃∽45℃

Receiver of Handicap Push Button Olide-510F

• Power Supply:AC/DC 12-30V
• Wireless Receiver:3A 30VDC
• CE Certification,FCC approved
• Static current:30mA
• Buzzing open or close can be adjusted there

Technical Parameter

• Swing application: one-way inswing or outswing open, single leaf and double leaf standard doors
• Voltage: 110-220 VAC +/-10%
• Motor: DC 24V brushless motor
• Power Consumption: 50W
• Opening Time: 3-7 sec. @ 90 degrees
• Hold Open Time: 1-30 sec. Adjustable
• Max. Door Frame Depth:200mm / 7.87"(the data is only applicable to work with push arm)
• Door Width: Max. 1200mm / 47.2" Min. 660mm / 26"
• Max. Opening Angle:120 degrees
• Environment Temperature: -20C to 50C -4F to 122F
• Operation noise: Less than 55db
• Opener size: 21.45''(L)*3.35''(W)*3.74''(H)
• Opener weight:9.5kg/ 20.9 LBS

Trouble Shooting

• Symptoms 1Motor always spin slowly and not stop
• Remedies 1Please install the whole item on the door to test,the door opener need to find a closing position firstly, if not installed, the motor just keep spin very very slowly in one direction and not stop. The system will go to a properly operation after find a closing position. If want to test on your workbench, you can install a arm, and manually stop in a position. (As closing position), And then give system a open signal.
• Symptoms 2The door opens in wrong direction and machine does not work
• Remedies 2Power off, manually open the door in half open,then power on, the door goes to closing direction, if not, change the open direction
• Symptoms 3Rebound when closing the door,repeat open and close actions
• Remedies 3Clear the obstacle away or increasing the closing force by hand programmer
• Symptoms 4Electric Lock not work
• Remedies 4Please press the lock button on the remote for first close
