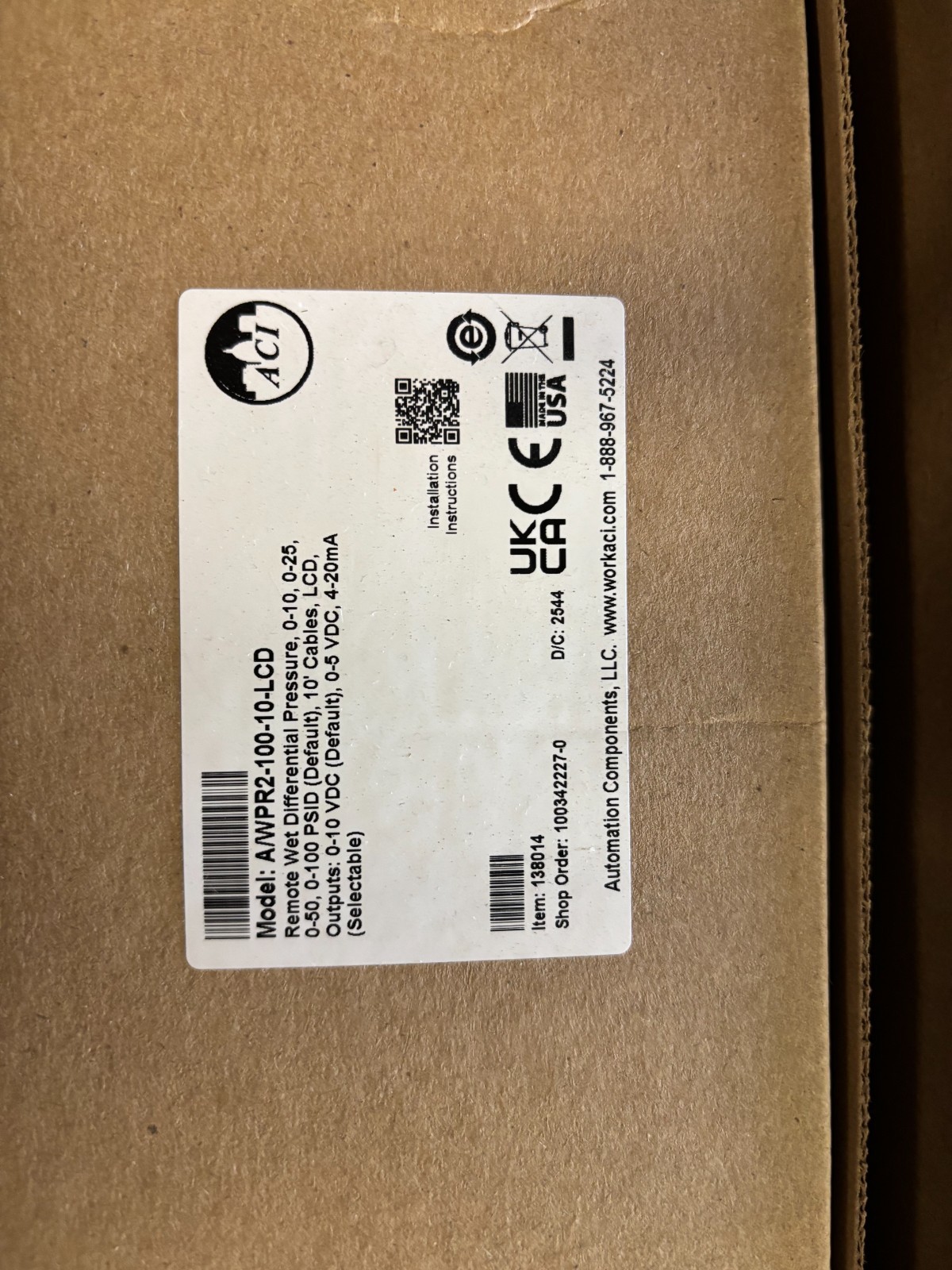

Automation Components Inc (ACI) A/WPR2-100-10-LCD Remote Wet Differential Pressure, 0-10,25,50, 100 PSID
Supply Voltage: 4-20 mA Output: 18-36 VDC (250 Ohm Load max.) 20-36 VDC (500 Ohm Load max.) 24 VAC (+/-10%) 50/60 Hz
0-5 VDC; 0-10 VDC Output: 16-36 VDC ; 24 VAC (+/- 10%) 50/60 Hz
Supply Current: 4-20 mA Output: 24 mA minimum; 0-5 VDC; 0-10 VDC Outputs: 6 mA minimum
Output Signals: 2-wire: Linear 4-20 mA DC Current (Field Selectable) 3-wire:0-5 VDC; 0-10 VDC (Default) & 4-20mA (Field Selectable)
Accuracy (Three Highest Ranges): ±1.0% FSO
Accuracy (Lowest Range2): ±1.5% FSO
Thermal Effects:±2.0% FSO from 32-140°F (0-60°C)
Operating Temperature:
Transducer: -40 to 257°F (-40 to 125°C)
Electronics/Housing/Cables: 32 to 167°F (0 to 75°C)
Compensated Temperature Range: 32 to 140°F (0 to 60°C)
Storage Temperature: -13 to 176°F (-25 to 80°C)
Operating Humidity: 10 to 90% RH, non-condensing
Recommend Torque Specification: 150 lbs-in (16.95 Nm)
- Designed to reduce installation time and provide mounting flexibility, often eliminating the need for additional plumbing and manifolds.
- WPR2’s enclosure opens conveniently to allow it to be reconfigured between three additional ranges and outputs of 4 to 20 mA, 0 to 5 VDC, or 0 to 10 VDC (default).
- The different configurations in this series can measure both uni or bi-directional pressure ranges as low as 3 psi and as high as 300 psi, depending on the unit.
- Push button auto zero function for remote calibration.
- The LCD option will display pressure values for both the High and Low side pressures, a differential pressure value, “OVR” for values over the specified range, “ERROR” for differential pressures out of range, and “ZERO” when the auto-zero is in process.
