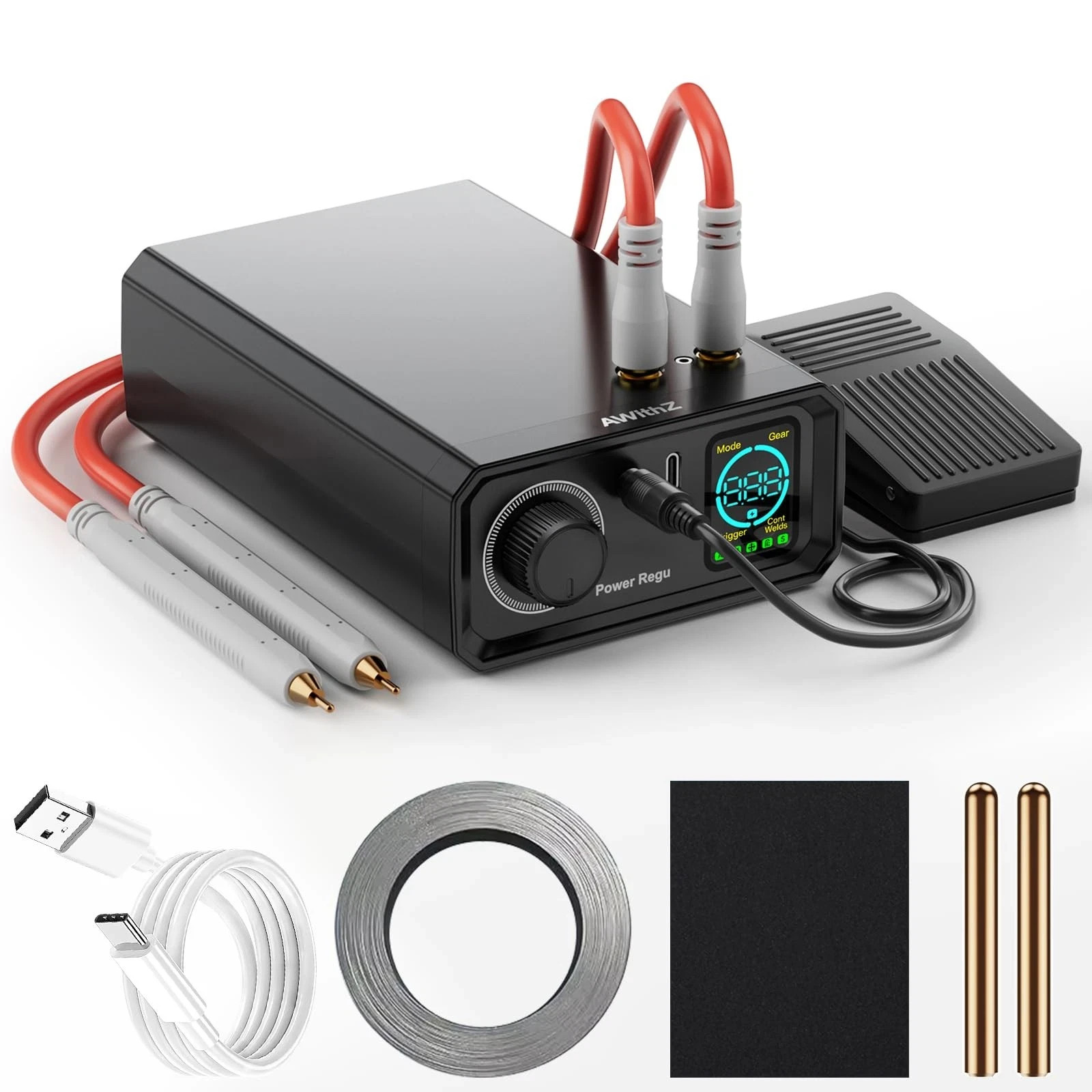

AWithZ UK1 9000W Battery Spot Welder – Rotary Knob Control, 100 Gears, Foot Pedal OperationProduct Overview
The AWithZ UK1 is a powerful 9000W portable spot welder designed for DIY battery pack building and repair. With 100 adjustable power levels, a large rotary knob for easy control, and dual trigger modes (hand trigger + foot pedal), this welder offers precision and flexibility for a wide range of applications.
Key Features
- 9000W Peak Power- Powerful enough for 0.1-0.3mm nickel plated sheets
- 100 Adjustable Power Levels- Fine-tune output with the large rotary knob
- Dual Trigger Modes- Hand trigger + foot pedal for hands-free operation
- Intelligent Thermal Protection- Auto shut-off when overheating is detected
- Dual Pulse Output- Stronger, more consistent welds
Parameters:
Product Name: AWithZ Spot Welding Machine
Model: UK1
Input voltage: 5V/2A
Output voltage: 8.4V (MAX)
Output current: 1380A (MAX)
Output power: 9000W (MAX)
Battery capacity: 5000mAh
Spot welding mode: automatic/manual (pedal triggered)
Spot welding thickness: copper 0.1mm, pure nickel 0.15mm, nickel plating 0.3mm, steel sheet 0.25mm, iron sheet 0.25mm
Gear adjustment: 001-100 gear adjustment
Product size: 100.5 * 158 * 48mmPackage Includes
- 1 × AWithZ UK1 Spot Welder
- 1 × Pair of Spot Welding Pens
- 1 × Foot Pedal Switch
- 1 × Roll of Nickel Plated Sheet
- 1 × Type-C Charging Cable
Important Usage Tips
- Practice on scrap material before welding your final project
- Ensure both welding tips contact the material simultaneously
- Start with lower gears and gradually increase
