B2 Audio 6.5\" Component Speaker Set RAGE 100W RMS 4 Ohm w/Tweeters For Sale

B2 Audio 6.5\" Component Speaker Set RAGE 100W RMS 4 Ohm w/Tweeters

B2 Audio RAGE Series 6.5\" 2-way 4 Ohm 100W Component Set w/Crossovers RAGE61-V2

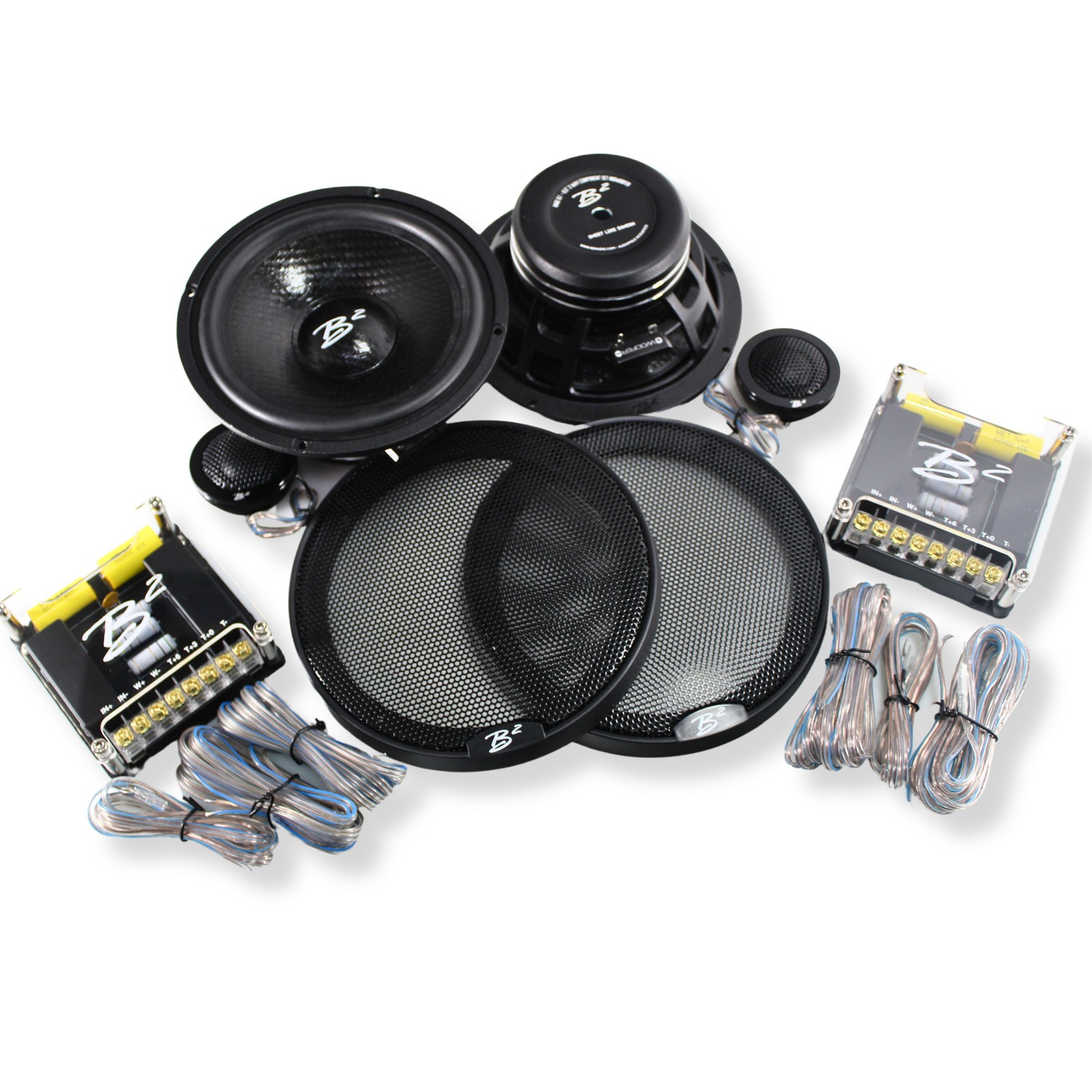

This listing includes:

• (2) 6.5\" Mid-woofers
• (2) 1.6\" Tweeters
• (2) Crossovers
• (1) Spec Sheet for Rage 6.1
• Mounting Hardware

The B2 Audio RAGE61-V2 takes everything you loved about the original RAGE61 and refines it with precision and style. Engineered for those who demand more from their sound, this upgraded 6.5\" 2-way component set introduces enhanced tweeter aesthetics and refined detailing — a visual and acoustic upgrade that elevates your entire soundstage.

Delivering 100W RMS of pure, controlled power, the RAGE61-V2 produces bold, dynamic mids and soaring highs with clarity that cuts through even the most demanding mixes. Its high-definition silk-dome tweeters and advanced crossovers ensure seamless frequency blending and tonal accuracy, while the redesigned tweeter housings add a touch of sophistication to your install.

Whether you’re chasing competition-level precision or daily-driving perfection, the RAGE61-V2 turns every note into an experience.

Features:

• Upgraded V2 Tweeters: Refined design with premium cosmetic enhancements
• Dynamic 2-Way System: Balanced sound reproduction from deep mids to sparkling highs
• Advanced Crossovers: Ensures smooth, accurate frequency transitions
• 100W RMS / 4-Ohm Performance: Power and efficiency for serious listeners
• Competition-Grade Construction: Built to handle high-performance systems with
• RMS Power Handling: 100 Watts
• Nominal Impedance: 3.9-Ohm
• Voice Coil Diameter: 1.2\"
• Magnet: Ferrite Motor Structure
• Frequency Response: 60 Hz - 25 KHz

Tweeter

• RMS Power Handling: 30 Watts
• Nominal Impedance: 4-Ohm
• Voice Coil Diameter: 1\"
• Magnet: Neodymium Motor Structure
• Frequency Response: 60 Hz - 25 KHz

Thiele and Small Parameters:

Midrange:

• Free Air Resonance (Fs): 60 Hz
• Resistance (Re): 3.6-Ohm
• Mechanical Factor (Qms): 7.21
• Electrical Factor (Qes): 0.9
• Total Factor (Qts): 0.8
• Equivalent Volume (Vas): 7.78
• Compliance (Cms): 305 um/N
• BL Factor (BL): 5.44 TM
• Moving Mass (Mms): 15.85 g
• Sound Pressure Level (SPL): 88 +/-1 dB

Tweeter:

• Free Air Resonance (Fs): 1250 Hz
• Resistance (Re): 3.9-Ohm
• Mechanical Factor (Qms): 0.76
• Electrical Factor (Qes): 2.43
• Total Factor (Qts): 0.58
• Equivalent Volume (Vas): 0.001 L
• Compliance (Cms): 5.7 um/N
• BL Factor (BL): 6 TM
• Moving Mass (Mms): 2.8 g
• Sound Pressure Level (SPL):
• Overall Diameter: 6.5\" / 165 mm
• Mounting Diameter: 5.55\" / 141 mm
• Overall Depth: 3.19\" / 81 mm
• Mounting Depth: 2.83\" / 72 mm

Tweeter

• Overall Diameter: 2.21\" / 56 mm
• Mounting Diameter: 1.87\" / 47.4 mm
• Overall Depth: 1.02\" / 25.8 mm
• Mounting Depth: 0.398\" / 10.1 mm

Product Details BrandB2 AudioColorBlackSize6.5Style2-Way Component Set with Enhanced Tweeters and Passive CrossoversManufacturerB2 AudioProduct Type2-Way Component SetMpnB2-RAGE61-V2

• Enhanced V2 Design: Updated with upgraded tweeter aesthetics and refined visual details, the RAGE61-V2 delivers a premium look that matches its elite sound quality.
• Precision 2-Way Audio: 6.5\" mid-woofers and 1.6\" tweeters create a balanced, dynamic soundstage with smooth midrange and crisp highs.
• 100W RMS / 4-Ohm Power Handling: Engineered for both clarity and control, this set thrives in high-performance car audio systems.
• Advanced Crossovers Included: Optimized crossovers ensure seamless frequency blending and distortion-free audio at any volume.
• Competition-Grade Construction: Built for durability and precision, perfect for daily driving or competition-level sound setups.
