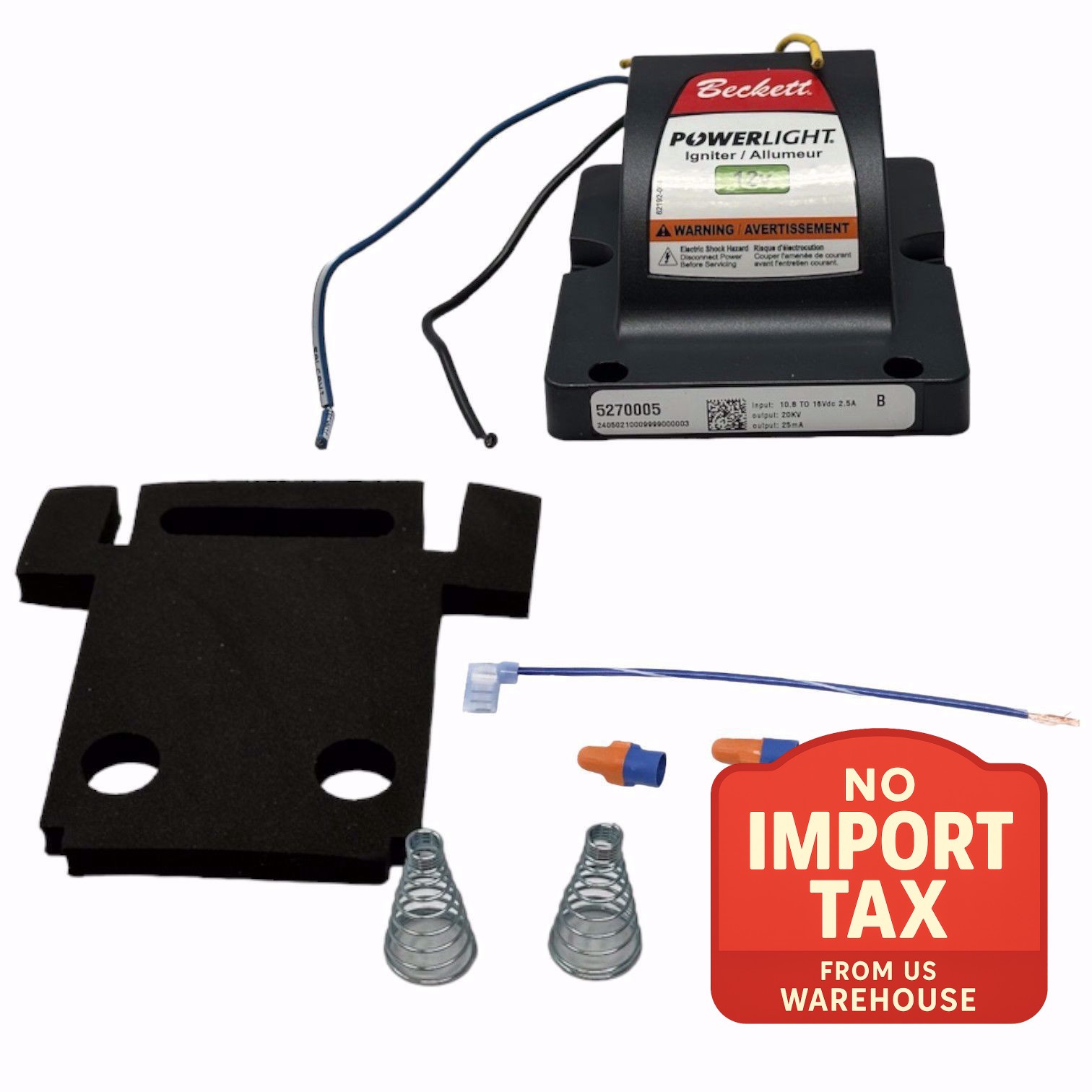

BECKETT 5270005U
IGNITER ADC/SDC IGNITER UNTPCK (REPLACES 5218309U, 7435U)
SPECIFICATIONS:
Input Voltage: 10.8 - 16 Vdc
Output Voltage: 20 kV peak
Output Current: 25 mA RMS
Input Current: 1.8A
Ambient Operating Temperature: -40 to +150° F
Storage Temperature: -40 to +150° F
Moisture: 5 to 95% Relative Humidity, CondensingAPPLICATION INFORMATION:
This igniter is designed for use with 12 VDC.
It is rated for continuous duty and can be used with intermittent, or interrupted ignition primary controls.
The Beckett oil igniter is designed to mount in the same manner as standard ignition transformers and igniters.
This igniter can be adapted to multiple base plates to accommodate Beckett ADC & SDC burners. It will also fit on many other vendors’ transformer base plates.**CAUTION!** Do not use this igniter beyond its design specifi cations. Improper operation and igniter failure may result.
