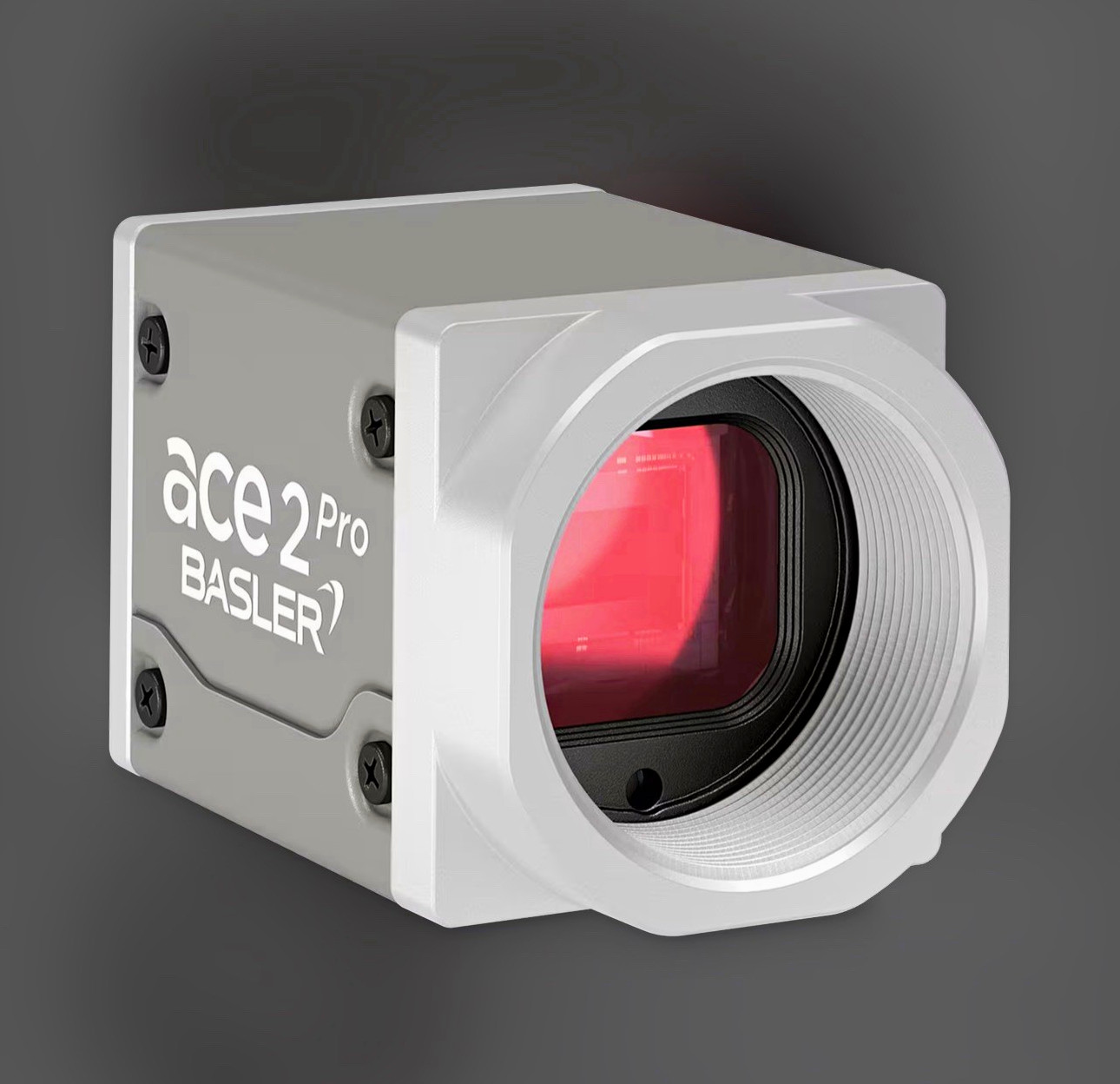

Basler ace 2 R
a2A1920-160ucPROGeneral Number
107962
Product Family
ace 2 R
Product Line
ace 2 R Pro
Camera Series
Basler ace 2
Camera Category
Area Scan Camera
Warranty
36 Months
SensorSensor Shutter
Sensor Format
1/2.3\"
Sensor Diagonal
7.81 mm
Sensor Type
CMOS
Sensor Size
6.6 mm × 4.1 mm
Resolution (H x V)
1920 px × 1200 px
Resolution
2.3 MP
Pixel Size (H x V)
3.45 μm × 3.45 μm
Frame rate
160 fpsCalculate Framerate
Frame Rate Compression Beyond
up to 168 DataQuantum Efficiency - blue (typical/minimal)
45.9 % (typical)
Quantum Efficiency - green (typical/minimal)
55.7 % (typical)
Quantum Efficiency - red (typical/minimal)
42.2 % (typical)
Dark Noise (typical/maximal)
2 e¯ (typical)
Saturation Capacity (typical/minimal)
10.5 ke¯ (typical)
Dynamic Range (typical/minimal)
71.6 dB (typical)
Signal-to-Noise Ratio (typical/minimal)
40.2 dB (typical)
Camera DataInterface
USB 3.0
Camera Data Connector
USB 3.0 Type Micro B receptacle
Image Data Interface
USB 3.0, nominal max. 5 Gbit/s (SuperSpeed)
Pixel Bit Depth
8 bits
10 bits
12 bits
Exposure Control
hardware trigger
programmable via the camera API
Camera I/O Connector
M8 6-Pin receptacle
Digital Input
1
General Purpose I/O
2
Power Supply
Via USB 3.0 interface or 12-24 VDC
Power Requirements (typical)
3.4 W
HousingHousing Type
Box
Protection Class
IP30
Housing Size (L x W x H)
42.8 mm x 29 mm x 29 mm
Weight
90 g
Lens Mount
C-mount
Operating Temperature
-10 °C - 50 °C
