Belimo B211B+LRB24-3 CCV 1/2" Characterized Control Valve 2-Way 1.9 CVBelimo part#: B211B+LRB24-3 Valve Size 0.5 in / 15 mm Product Type CCV Valve Part Number B211B Actuator Part Number LRB24-3 Application Water Media Temp Range (Water) 0 to 250 ºF-18 to 120 ºC Flow Characteristic equal percentage ID B211B+LRB24-3 Object name B211B+LRB24-3 Title B211B+LRB24-3 TYPECODE B211B1+LRB24-3, B211B2+LRB24-3 Application Type Water Product Type Characterized Control Valve Fail-Safe Non-Spring Return Control Type On/Off/Floating Point Control Input On/Off/Floating Point Input Impedance 600 Ω Position response 0 Running Time (Motor) 95 seconds Auxiliary Switch 0 Power Supply 24 VAC ± 20%, 50/60 Hz, 24 VDC ± 10% Power Consumption 0.2 W1.5 W Transformer Sizing 2 VA (class 2 power source) Electrical Connection 3 ft, 18 GA, plenum cable, 1/2" conduit connector Overload Protection Electronic throughout 0º to 90º rotation Angle of Rotation 90º, adjustable with mechanical stop Direction of Rotation (Motor) reversible with built-in switch Position Indication Integrated into handle Manual Override External push button Humidity 5 to 95% RH non condensing (EN 60730-1) Ambient Temperature -22 to +122 ºF-30 to +50 ºC Storage Temperature -40 to +176 ºF-40 to +80 ºC Noise Level max. 35 dB (A) Agency Listing cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2004/108/EC and 2006/95/EC Servicing Maintenance Free Quality Standards ISO 9001 Weight 2.2 lb1.00 kg Cv Rating 1.90 Flow Pattern 2-way Service Chilled or hot water, 60% glycol Action 75 º End Fitting NPT female ends Leakage 0% for A to AB Top Biz Buy's

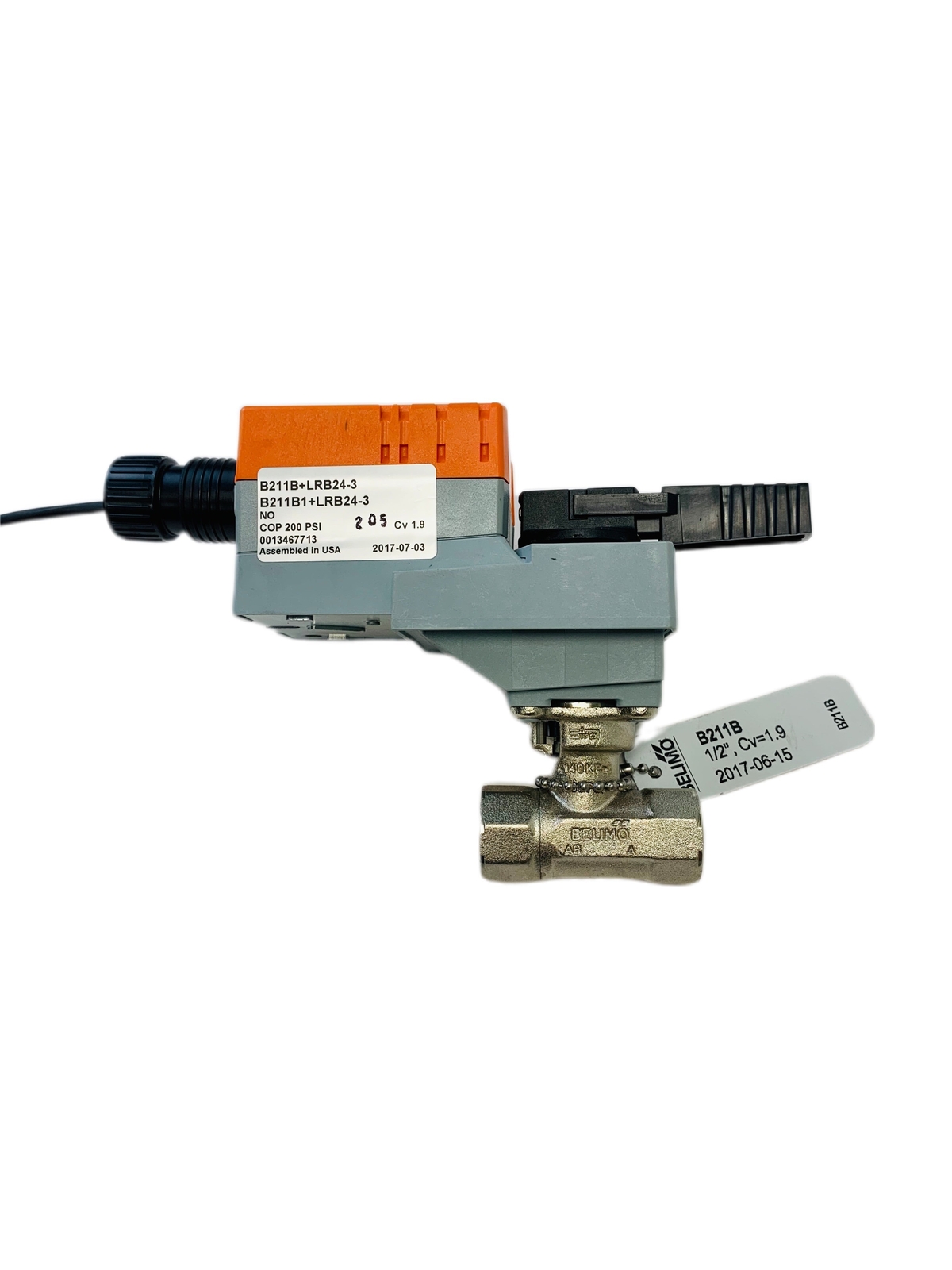

Belimo B211B+LRB24-3 CCV 1/2" Characterized Control Valve 2-Way 1.9 CV
Belimo part#: B211B+LRB24-3
Valve Size0.5 in / 15 mmProduct Type CCVValve Part NumberB211BActuator Part NumberLRB24-3ApplicationWaterMedia Temp Range (Water)0 to 250 ºF-18 to 120 ºCFlow Characteristicequal percentageIDB211B+LRB24-3Object B211B2+LRB24-3Application TypeWaterProduct TypeCharacterized Control ValveFail-SafeNon-Spring ReturnControl TypeOn/Off/Floating PointControl InputOn/Off/Floating PointInput Impedance600 ΩPosition response0Running Time (Motor)95 secondsAuxiliary Switch0Power Supply24 VAC ± 20%, 50/60 Hz, 24 VDC ± 10%Power Consumption0.2 W1.5 WTransformer Sizing2 VA (class 2 power source)Electrical Connection3 ft, 18 GA, plenum cable, 1/2" conduit connectorOverload ProtectionElectronic throughout 0º to 90º rotationAngle of Rotation90º, adjustable with mechanical stopDirection of Rotation (Motor)reversible with built-in switchPosition IndicationIntegrated into handleManual OverrideExternal push buttonHumidity5 to 95% RH non condensing (EN 60730-1)Ambient Temperature-22 to +122 ºF-30 to +50 ºCStorage Temperature-40 to +176 ºF-40 to +80 ºCNoise Levelmax. 35 dB (A)Agency ListingcULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2004/108/EC and 2006/95/ECServicingMaintenance FreeQuality StandardsISO 9001Weight2.2 lb1.00 kgCv Rating1.90Flow Pattern2-wayServiceChilled or hot water, 60% glycolAction75 ºEnd FittingNPT female endsLeakage0% for A to AB × × × ×
We are not an Authorized Dealer, Authorized Distributor, nor Authorized Representative for any manufacturer and therefore TopBizBuys, LLC offers no warranties, expressed or implied for any of the products that we sell.
By purchasing this item, buyer agrees that TopBizBuys, LLC is not responsible for any damages or injuries caused by the misuse, improper installation, or failure of the product.
