Beric 2\" Class 300 Globe Valve RF Flanged A216 WCB Trim 8 NOS 203-02-RF-EA08-H For Sale

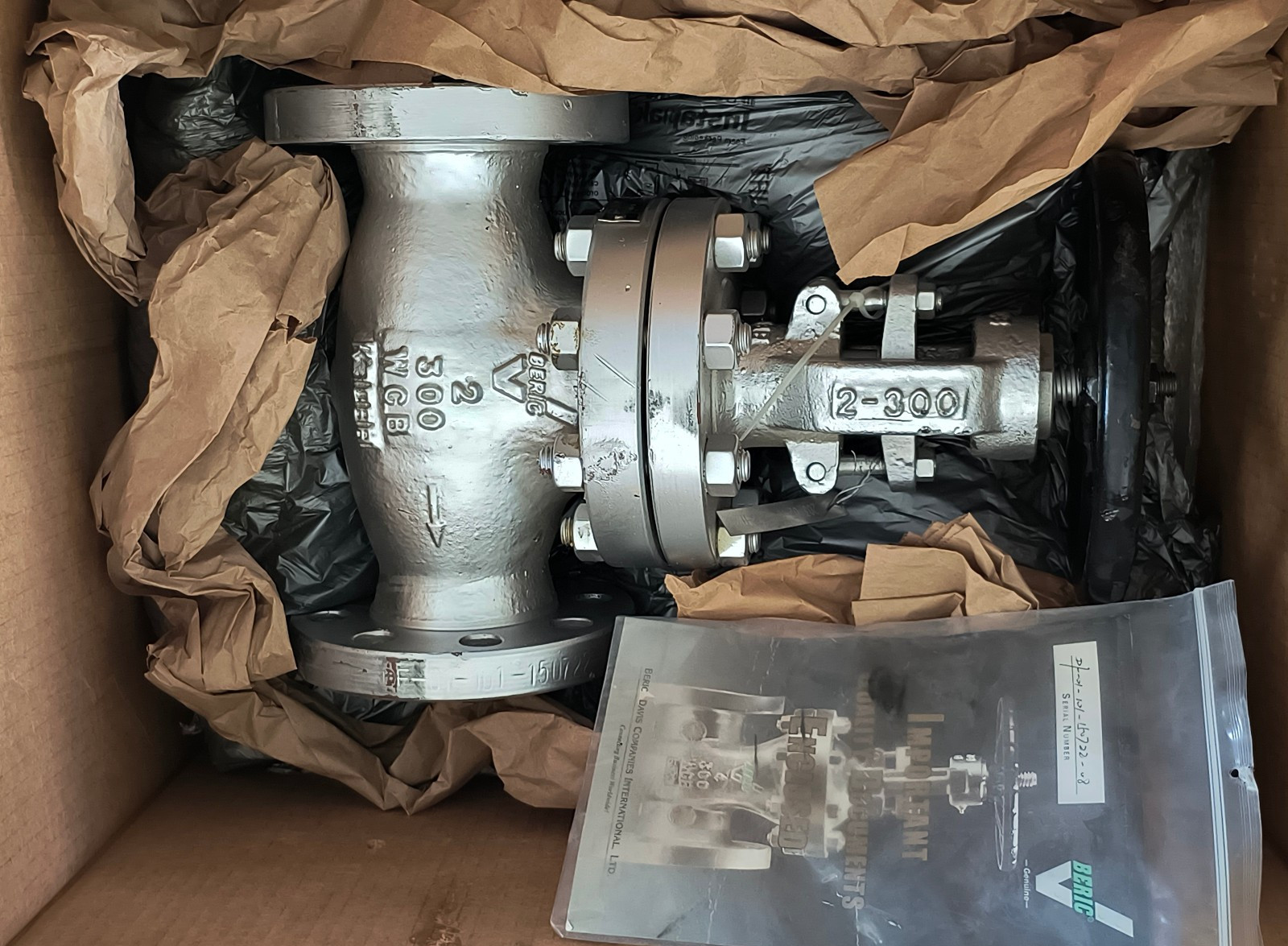

This genuine Beric 2 inch Class 300 globe valve (part number 203-02-RF-EA08-H) is manufactured by Beric-Davis Companies International, Ltd., a trusted provider since 2000 known for API-accredited, high-quality industrial valves produced via partnerships with Asian factories. It\'s New Old Stock (NOS) from 2015—never installed, used, or exposed to any service conditions. Stored in a controlled environment, this 2 inch globe valve is in pristine condition with no wear, corrosion, or defects. It arrives in the original factory packaging, complete with the Material Test Report (MTR) and a quality documents envelope outlining fugitive emissions testing for superior low-leakage performance.

Perfect for demanding applications in oil & gas, petrochemical, or general piping systems, this Class 300 globe valve offers reliable flow control and durability. Beric valves emphasize quality, with an original 18-month warranty on materials and workmanship (though expired due to age).

Key Features of This Beric Globe Valve:

• Bolted bonnet design with outside screw and yoke (OS&Y) for straightforward maintenance.
• Raised Face (RF) flanged ends for secure, leak-proof connections.
• Hard-faced seat and durable 13% chromium trim (Trim 8) for enhanced corrosion resistance and longevity.
• Low fugitive emissions certified, ideal for environmentally regulated settings.
• Fully compliant with ASME B16.34 for pressure-temperature ratings and API 598 for rigorous testing.

Condition Details:Unused and ready for installation, this Beric Class 300 globe valve includes all original documentation for authenticity. No current manufacturer warranty, but the included MTR verifies it passed all chemical, physical, and hydrostatic tests.

• Manufacturer: Beric
• Model / P/N: 203-02-RF-EA08-H
• Valve Type: Globe Valve (Straight Pattern)
• Size: NPS 2 (2 inches)
• Pressure Class: ANSI 300 (class 300)
• End Connections: Raised Face (RF) Flanged
• Body & Bonnet Material: ASTM A216 WCB (Carbon Steel)
• Wedge/Disc Material: ASTM A105 + 13CR (13% Chromium Overlay)
• Body Seat Ring: ASTM A105 + HF (Hard Faced)
• Stem Material: 13CR (13% Chromium Stainless Steel)
• Trim Number: 8
• Design Standard: ASME B16.34
• Testing Standards: API 598 (Hydrostatic), MSS-SP-55 (Visual)
• Pressure Test Results:
  • Shell: 1125 PSIG (Good)
  • Seat (Hydro): 825 PSIG (Good)
  • Back Seat: 825 PSIG (Good)
• Cold Working Pressure (CWP): 740 PSIG at 100°F
• Maximum Temperature: 800°F
• Dimensions (mm):
  • Face to Face: 267 (10 1/2\")
  • Flange Diameter: 165 (6 1/2\")
  • Bolt Circle: 127 (5\")
  • Raised Face Diameter: 92 (3 5/8\")
  • Flange Thickness: 23 (9/10\")
  • Number of Bolt Holes: 8
  • Bolt Hole Diameter: 19 (3/4\")
• Chemical Composition (Body/Bonnet, %):
  • C: 0.196, Si: 0.470, Mn: 0.827, P: 0.025, S: 0.013, Ni: 0.049, Cr: 0.075, Mo: 0.050, Cu: 0.043, V: 0.010
• Tensile Properties (Body/Bonnet):
  • Tensile Strength: 510 MPa
  • Yield Strength: 282 MPa
  • Elongation: 28.0%
  • Reduction of Area: 36.0%
  • Hardness: 155 HB
• Heat Treatment: Normalized at 920°C for 3 hours (Air Cooled)
• Serial Number: DF-01-101-150722-08
• Manufacture Date: July 22, 2015 (per Material Test Report) August 2015 (per nameplate)
• Additional Testing: Fugitive emissions certified with low leakage rates, per included documentation (e.g., packing adjustments, torque requirements, and cycle testing protocols).
