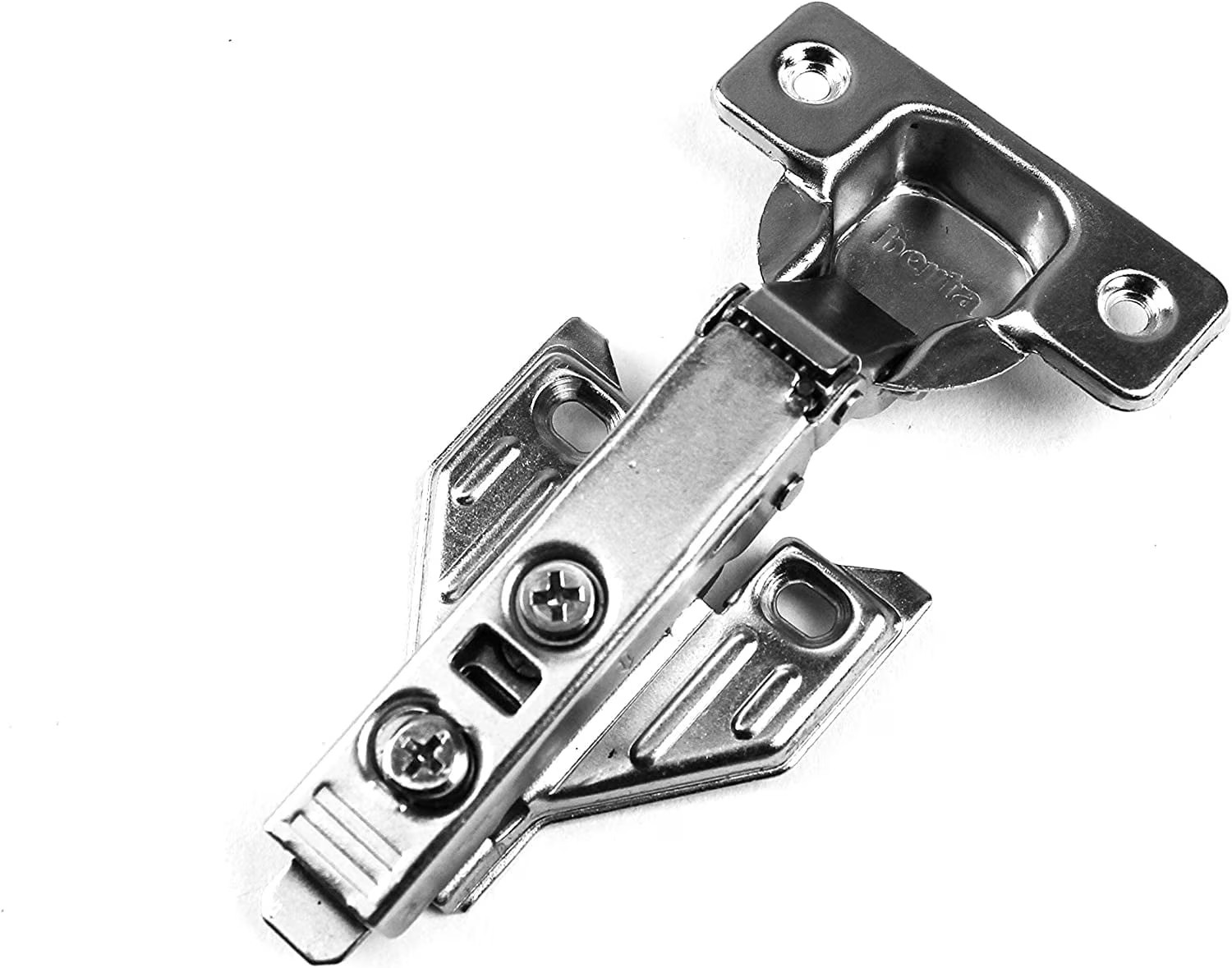

Berta 110 Degree Full Overlay Soft Close Concealed Face Frame Cabinet Hinges (50 For Sale

Designed for face frame cabinet doors, these small hinges help save space in tight cabinets to improve kitchen convenience. All our face frame cabinet hinges comes with the installation screws, to make your project smooth and hassle-free. Our high-quality hinges have built-in dampers that act as soft-close (slow-close) buffers to help reduce the noise of slamming doors. Easy to install, and easy to adjust cabinet hinge for your kitchen, bathroom, or anywhere else you are installing cabinet doors. 2 dimensional adjustments - horizontal and depth.OPENING ANGLE: 110 Degree. OVERLAY: Full Overlay. CUP DIAMETER: 1-2/5” (35 mm). CUP DEPTH: 1/2\" (12 mm). SUITABLE DOOR THICKNESS: 3/5\"-22/25\" (16 – 22 mm). SCREW HOLE CENTER TO CENTER: 1-4/5\" (45 mm). MATERIAL: Cold Rolled-Steel. FINISH: Nickel Plated. CLOSING TYPE: Soft/Self Close. CABINET TYPE: Face Frame. BORE DISTANCE: 1/8\" (3 mm).

• PACKAGE CONTENT: 50 Pieces Face Frame Cabinet Hinges with Installation Screws
• SLOW-CLOSE DAMPER: Each cabinet door hinge features a built-in damper that creates a soft closing motion. The soft closing function is one of the best indicators of the quality of the hinges. The soft closing feature prevents all disturbing noises from the kitchen and extends the lifetime of the doors, cabinets, and hinges.
• ADJUSTMENTS: 4-Way 2-Cam adjustment features help the hinges to be easily installed. After mounting of the hinges, these 2-Cams allow the hinges to be adjusted by 4-Way appropriately to the cabinets. 2-Cam adjustments are Horizontal and Depth. After mounting the hinges to the cabinet, the hinges can be adjusted as third way vertically by the longitudinal holes in the plate.,
