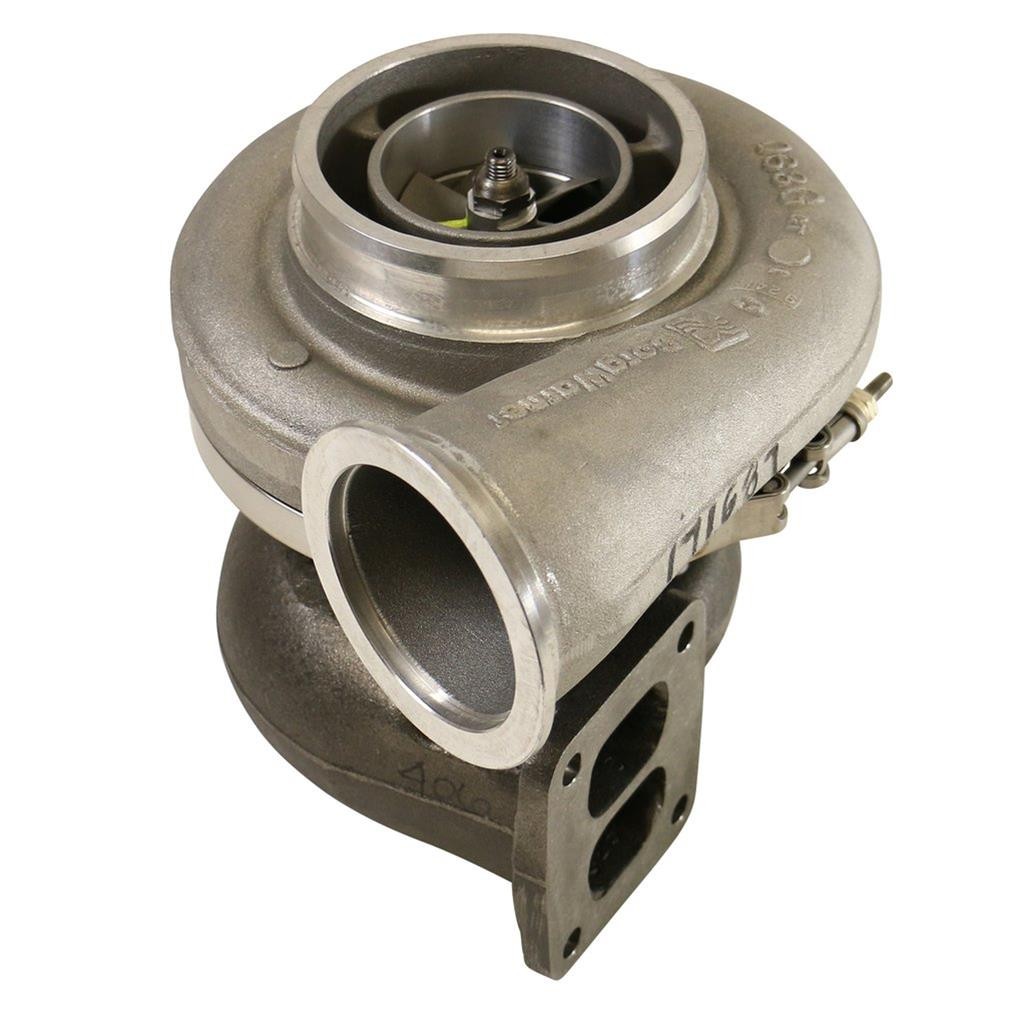

BorgWarner 177283 AirWerks S300SX3 S363 Turbocharger 63mm 0.88 A/R T4 500-750HP For Sale

- AUTHORIZED DEALER
- AUTHENTICPART

Part Brand: BorgWarner

Part Number: 177283

• Universal -- not vehicle specific
• Suitable for diesel and gasoline applications rated 500–750+ HP
• May require custom fabrication, oil/coolant lines, inlet/outlet adapters, and mounting hardware for installation

• T4 inlet flange -- verify compatibility with exhaust manifold before ordering
• Marmon 4.21\" V-band discharge outlet -- HX40-style downpipe required
• Not legal for sale or use in California
• Extensive modifications and fabrication typically required
• Oil feed and drain lines, coolant lines, and mounting hardware sold AirWerks S300SX3 series
• Twin hydrodynamic journal bearings
• Extended Tip Technology compressor wheel
• Compressor cover recirculation grooves -- anti-surge
• Adjustable compressor and turbine housing orientation
• Twin scroll turbine housing options available
• Cast Inconel 713 turbine wheel -- high-temperature rated
• 500–750+ HP capacity
• Compressor flow over 75 Number: 177283
• Series: AirWerks S300SX3 (S363)
• Bearing Type: Twin Hydrodynamic Journal Bearings
• Compressor Wheel OD: 3.44\" (87.4mm)
• Compressor Inducer: 2.48\" (63mm)
• Turbine Wheel OD: 3.00\" (76mm)
• Turbine Wheel Exducer: 2.66\" (68mm)
• Turbine A/R: 0.88
• Turbine Housing Inlet: T4 (undivided/open volute)
• Turbine Housing Outlet: 4.21\" Marmon V-band
• Compressor Inlet: 4.00\" ported anti-surge
• Compressor Outlet: 3.00\" 90-degree
• HP Range: 500–750+
• Fuel Type: Diesel / Gasoline
• Shipping Weight: 38 lbs.

• 1x BorgWarner S300SX3 Complete Turbocharger Assembly

The BorgWarner 177283 is an AirWerks S300SX3 series turbocharger -- commonly referenced as the S363 for its 63mm compressor inducer and 68mm turbine exducer configuration. Rated for 500 to 750+ HP with compressor flow exceeding 75 lbs/min, this is a high-output universal turbocharger designed for diesel and gasoline applications requiring serious boost capacity. The Extended Tip Technology compressor wheel delivers the airflow of a larger wheel while retaining the low inertia and fast spool characteristics of a smaller wheel. Twin hydrodynamic journal bearings provide durable, high-speed rotational support across a wide operating range.

The T4 undivided (open volute) turbine inlet accepts a standard T4 exhaust manifold flange, and the 4.21\" Marmon V-band discharge outlet is compatible with HX40-style downpipes. Compressor and turbine housing orientation is adjustable for installation flexibility. This turbocharger is a universal fit -- it is not designed as a direct bolt-on for any specific vehicle and will require custom oil feed/drain lines, coolant lines, inlet piping, outlet piping, mounting hardware, and potentially an exhaust manifold or adapter plate depending on the application. Not legal for sale or use in California.

*Parts are for USA spec vehicles, please contact us to verify fitment on JDM & international models.
