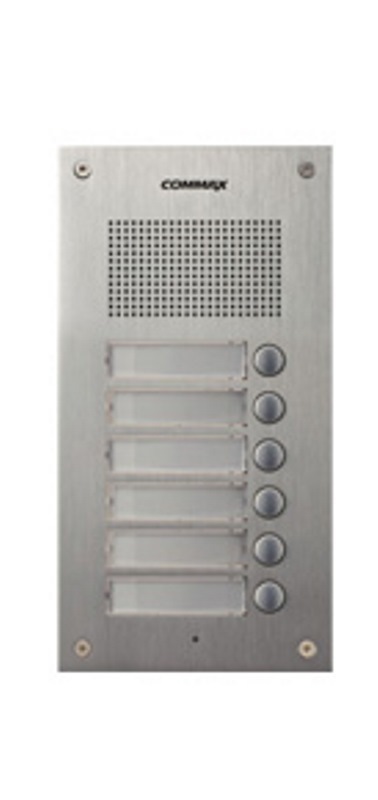

COMMAX APARTMENT DOOR PHONE SYSTEM
6-APARTMENT VOICE INTERCOM LOBBY UNIT
Model: DR-6UM
6 Buttons Audio Intercom Panel. Door Entrance Unit.
**If you have questions regarding the compatibility of products and/or applications please contact us.**
COMMAX Door Station compatible with various systems provides you better efficiency to the system and guarantee more secure an comfortable Call residential station for up to6 residential stations/ name card.
Connectable product: DP-SS, DP-KSS, DP-4KS, DP-MRMaterial: Aluminum panel/ Flush mount typeWiring: Common 3 wires, Individual 1 wire per Unit.Power Source: DC 12V, 500mA***POWER ADAPTER IS NOT INCLUDED***
Model
DR-6UM
Power Source
12V, 500mA
Wiring
Common 3 wires + Individual 1 wire
(3 wires: 1, 2, 3)(Individual 1 wire: L1)
Communication
2-way
Temperature
-10ºC ~ 50ºC
Dimension
142(W) x 250(H) x 50(D)
Communication Distance
Cable Gauge
Ø0.5
AWG24
Ø0.65
AWG22
Ø0.8
AWG20
Ø1
AWG18
Distance
30m/
90 ft
50m/
150ft
70m/
210 ft
100m/
300 ft
***Wire***
- CAT5 UTP cable is not recommended for audiointercom
- The recommended cable is AWG18 (for longdistances up to 100 meters/300 feet), the minimum recommend cable is AWG20 (fordistances less than 70 meters/210 feet).
- According Commax specifications for audio intercom,the wire gauge to be used is as follows:
Transmission Distance
(feet)
Transmission Distance
(meters)
American Wire Gauge
(#AWG)
Diameter
(mm)
90
30
24
0.5
150
50
22
0.65
210
70
20
0.8
300
100
18
1
Connection **All dimensions are approximate**
Compatible devices:
Room station DP-SS
Power adapter AC110V to DC12V RF-1A
