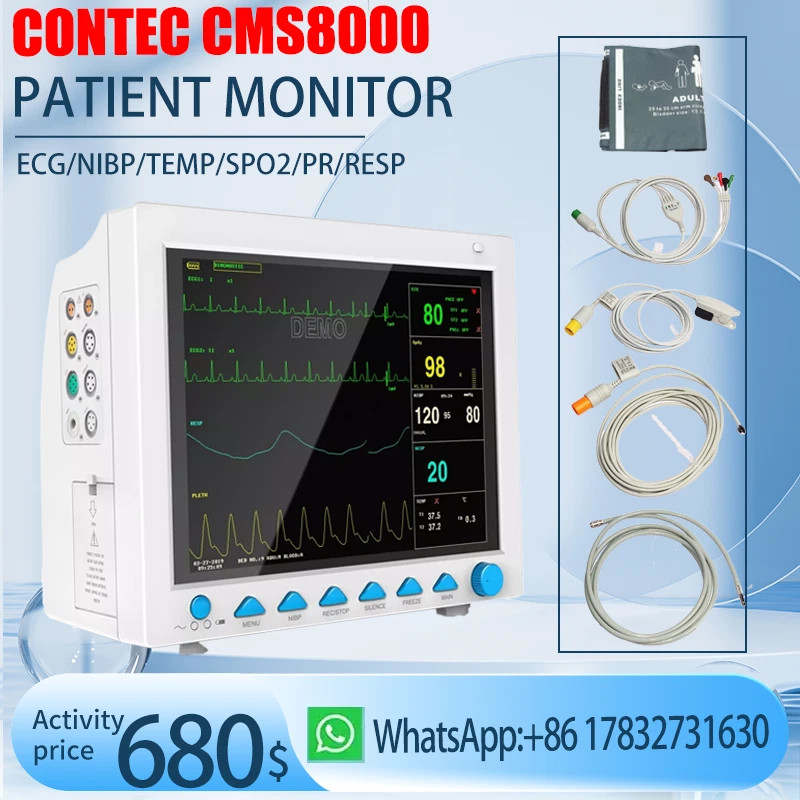

CONTEC CMS8000 Patient Monitor 12.1 inch 6-parameter Vital Sign Patient Monitor For Sale

Introduction

The monitor hasabundant functions that can be used for clinical monitoring with adult,

pediatric and neonate. Users may select different parameter configuration

according to different requirements. The monitor, power supplied by

100-240V～,50/60Hz, adopts 12.1\'\' color TFT LCD displaying real-time date and

waveform. It can synchronously display eight-channel waveform and full

monitoring parameters equipped with an optional 48mm thermal recorder. The

monitor can be connected to the central monitoring system via wire or wireless

network to form a network monitoring system.

This device can monitor such

parameters as ECG, RESP, NIBP, SpO2, and dual-channel TEMP, etc. It integrates

parameter measurement module, display and recorder in one device to form a

compact and portable equipment. Its replaceable internal battery brings lot of

convenient for patient moving.

Functions

Standard parameters: ECG, RESP,

SpO2, PR, NIBP, dual-channel TEMP

1)ECG Heart rate(HR)

ECG

waveform

Arrhythmia and ST-segment analysis

2)RESP Respiration

rate(RR)

Respiration waveform

3)SpO2 Oxygen

saturation(SpO2)

Plethysmogram(PLETH) waveform

Pulse

rate(PR)

Bar graph

4)NIBP Systolic pressure(SYS), Diastolic

pressure(DIA), Mean pressure(MEAN)

5)TEMP T1, T2, TD

6)IBP(optional)

CH1：SYS，DIA，MAP

CH2：SYS，DIA，MAP

IBP waveform

7)CO2(optional)

EtCO2

InsCO2:Inspired Minimum CO2

AwRR:Air Way Respiration

It has

abundant functions, such as audible and visual alarm, trend data storage and

output, NIBP measurement, alarm event marking and drug concentration

calculation, etc.

Features

1)12.1\'\' TFT color LCD,

multi-language

2)Fanless design, quiet,

energy-saving and clean, which reduces the possibility of

cross-infection.

3)All-round monitor for adult, pediatric and

neonate.

4)With standard interface, oxygen graph, trend graph, big character

interface and view bed, convenient to observe.

5)Finish all operations by

keys and knobs.

6)Maximum 8-channel waveform synchronous

display.

7)Display 7-lead ECG waveform on one screen, cascade ECG waveform

display

8)Adopt digital SpO2 technology, anti-motion and anti-ambient light

interference, and measurement can be performed under the circumstance of weak

filling.

9)Heart rate variability (HRV) analysis function

10)NIBP

measurement mode: Manual/AUTO/STAT, storage for 4800-group NIBP

data.

11)Review for 71 alarm events of all parameters and 60 arrhythmia alarm

events.

12)Drug concentration calculation and titration table

functions.

13)One-touch printing of trend graph

14)Connect to Central

Monitoring System by 3G, Wi-Fi or wired mode.

15)AC/DC, built-in rechargeable

lithium battery achieve uninterrupted monitoring.

16)Anti-high frequency

surgical unit, defibrillation-proof (special leads are

necessary).

Performance

▲ECG

Lead mode: 3-lead or

5-lead

Lead selection: I, II, III, aVR, aVL, aVF, V

Waveform: 5-lead,

dual-channel

3-lead, single-channel

Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV,

20mm/mV, 40mm/mV

Scan speed: 12.5mm/s, 25 mm/s, 50 mm/s

HR:

Measurement and alarm range: 15～300 bpm

Accuracy: ±1 % or ±1 bpm,

whichever is greater

Alarm accuracy: ± 2 bpm

Resolution: 1

bpm

ST-segment monitoring:

Measurement and alarm range: -2.0 mV ～ +2.0

mV

Accuracy: -0.8 mV～+0.8 mV ±0.04 mV or ±10%, whichever is greater

Other range: unspecified

Arrhythmia analysis: ASYSTOLE, VFIB/VTAC,

COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2,

PVC, TACHY, BRADY, MISSED

BEATS, PNP, PNC

Pacemaker: yes

▲RESP

Method: R-F(RA-LL) Impedance

Respiration rate:

Measurement and alarm range: 0～150 rpm

Resolution:

1 rpm

Measurement accuracy: ±2 rpm

Alarm accuracy: ±3 rpm

Apnea alarm:

10～40s

Scan speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s

▲NIBP

Method:

Oscillometry

Mode: Manual/AUTO/STAT

Measurement interval in AUTO mode:

Measurement period in STAT

mode: 5 minutes

Measurement and alarm range: 10 ～ 270 mmHg

Resolution: 1

mmHg

Cuff pressure accuracy: ±3 mmHg

Measurement accuracy:

Maximal mean

deviation: ±5 mmHg

Maximal standard deviation: 8 mmHg

Over-pressure

protection:

Adult mode: 297±3 mmHg

Pediatric mode: 240±3

mmHg

Neonatal mode: 147±3 mmHg

▲SpO2

Measurement and alarm range: 0 ～

100%

Resolution: 1%

Measurement accuracy: 70%～100%: ±2%;

0%～69%:

unspecified

▲PR

Measurement and alarm range: 25 ～ 250 bpm

Measurement

accuracy: ±2 bpm or ±2%, whichever is greater

▲TEMP

Channel:

dual-channel

Measurement and alarm range: 0 ～ 50℃

Resolution: 0.1

℃

Accuracy: ±0.1 ℃

▲EtCO2

Method: Sidestream or Mainstream

Measuring Range: 0～150mmHg

Resolution:

0～69 mmHg, 0.1 mmHg

70～150

mmHg, 0.25 mmHg

Accuracy:

0～40 mm Hg ±2 mm Hg

41～70 mm Hg ±5%

71～100

mm Hg ±8%

101～150 mm Hg ±10%

AwRR Range: 2～150 rpm

AwRR Accuracy:

±1BPM

Apnea Alarm: Yes

▲IBP

Channel: dual-channel

Label: ART, PA,

CVP, RAP, LAP, ICP, P1, P2

Measuring and Alarm Range: -10～300

mmHg

Resolution 1 mmHg

Accuracy: ±2% or 1mmHg, whichever is

greater

▲Power supply: 100-240V～, 50/60Hz

▲Safety classification: Class I,

type CF defibrillation-proof applied part

Accessories

1)Adult fingertip SpO2 probe

(5-pin)

2)Adult NIBP cuff

3)NIBP extension tube

4)ECG lead

cable

5)ECG electrode

6)Temperature probe

7)Power cord

8)User

Manual
