Product Description

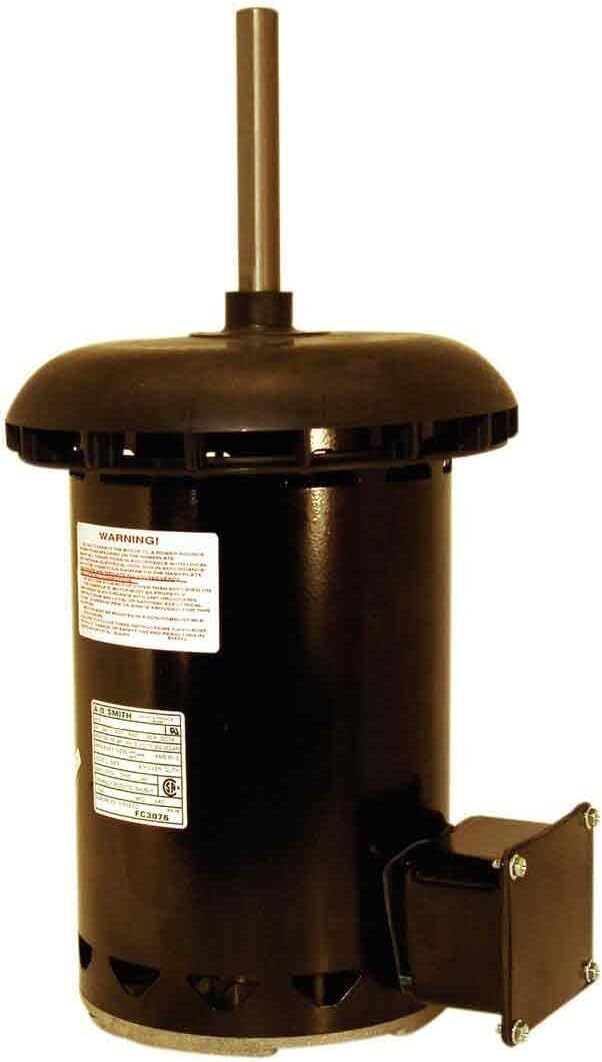

The Century FC3156F is a three-phase fan canopy motor designed for commercial applications. With a diameter of five and five-eighth inches, this motor operates at a speed of 1120 RPM and is rated for one and a half horsepower. It runs on a voltage of 200-230/460 volts and has an amp draw of 5.8. This motor features a ball-bearing design, which provides smooth operation and reduces maintenance needs.
- Speed: 1120 RPM
- Voltage: 200-230/460
- Power: 1.5 HP
Product Highlights
This motor is suitable for various industrial applications, including HVAC systems and condenser fans, ensuring reliable performance over time.
Product InformationStandard Information
- Brand: Century
- MPN: FC3156F
Technical Specifications
- Frame Size: 48
- Phase: Three
- Insulation Class: F
- Bearings: Double Sealed Ball
- Ambient Temperature: Up to 70°C
- Weight: 30.8 lbs
- Diameter: 5.625 inches
- Rotation: Reversible
