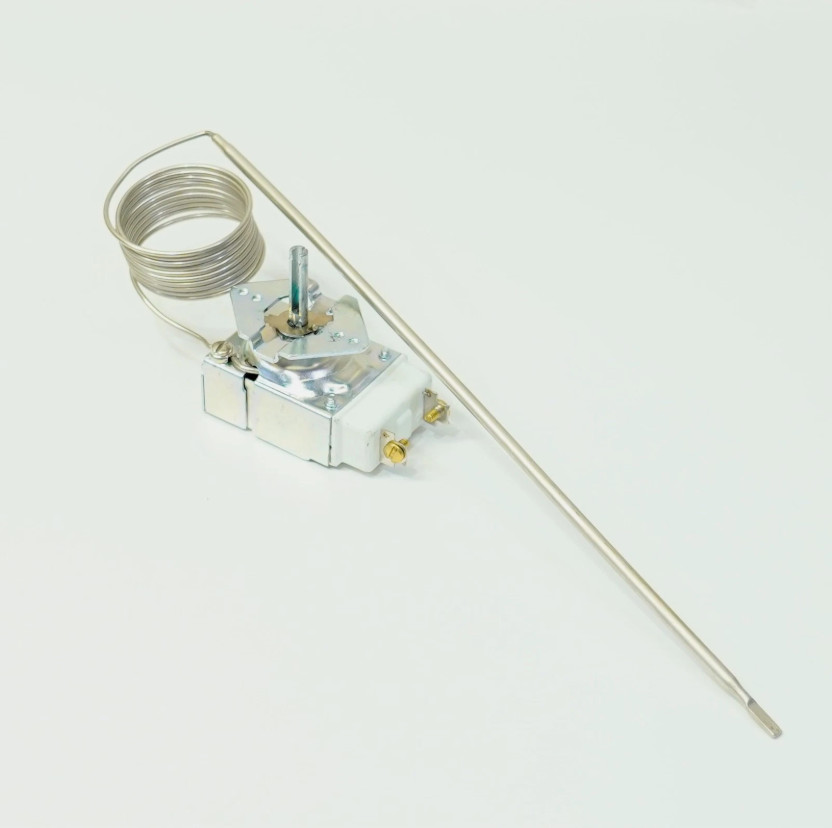

Commercial Electric Thermostat RX-34-60 Fits Southbend 1191727 Robertshaw For Sale

The Robertshaw 5300 Series Electric Thermostat is a snap-acting, single pole single throw (SPST) type thermostat. Most thermostats use silver contacts and have heavy-duty terminals for durability and sustained accuracy. The snap-action mechanism is precise and reliable. This direct acting series of thermostats is suitable for the commercial cooking industry.

• Rugged and compact design for versatility and long life
• Bulb and capillary available in copper, nickel plated copper and stainless steel (most models)
• Plastic coating available for protection against moisture, dust, etc. (most models)
• Dials of heat resistant plastic available
• RX millivolt models with hermetically sealed reed switch
• Stem flat in down position
• Ambient temperature 200 degrees F (93 degrees C)

• Series Application: Electric Cooking Control
• Temperature Range: 175 to 550 degrees F (79 to 302 degrees C)
• Capillary Length: 60"
• Bulb Size: 3/16" x 11.250"
• Stem Length: 1"
• Mounting Type: (2) #6-32 @ 1.750" (2) #6-32 @ 1.312"
• Dial Type: "D" shape .250 x .186 fl t
• Mechanical Differential: 12 degrees F
• Stuffing Box: NA
• Electrical Rating: .67 Amp @ 5V DC
