Package Contents:1 * Drain Valve With Power CableSpecification:Easy to install, fully automatic operationPower Cable With 3 pin US Plug.Equipped with a ball valve filter, split with drain valve, an L-shaped structureVoltage: AC110V 50HzVoltage range: 10%Time interval ( OFF ): 0.5--45 minutes (adjustable)Discharge time ( ON ): 0.5--10 seconds (adjustable)Manual test button: Yes( micro switch )The current consumption: Max 4mAProtection grade: IP65Shell material: Flame retardant ABS plasticIndicator lamp: LED indicating power on / offType: two-way direct-acting valveFlow aperture: 5 mmIn / out port size: 1/2\"Maximum working pressure: 1.6MpaMaximum temperature: 90 °CValve material: Forging brass

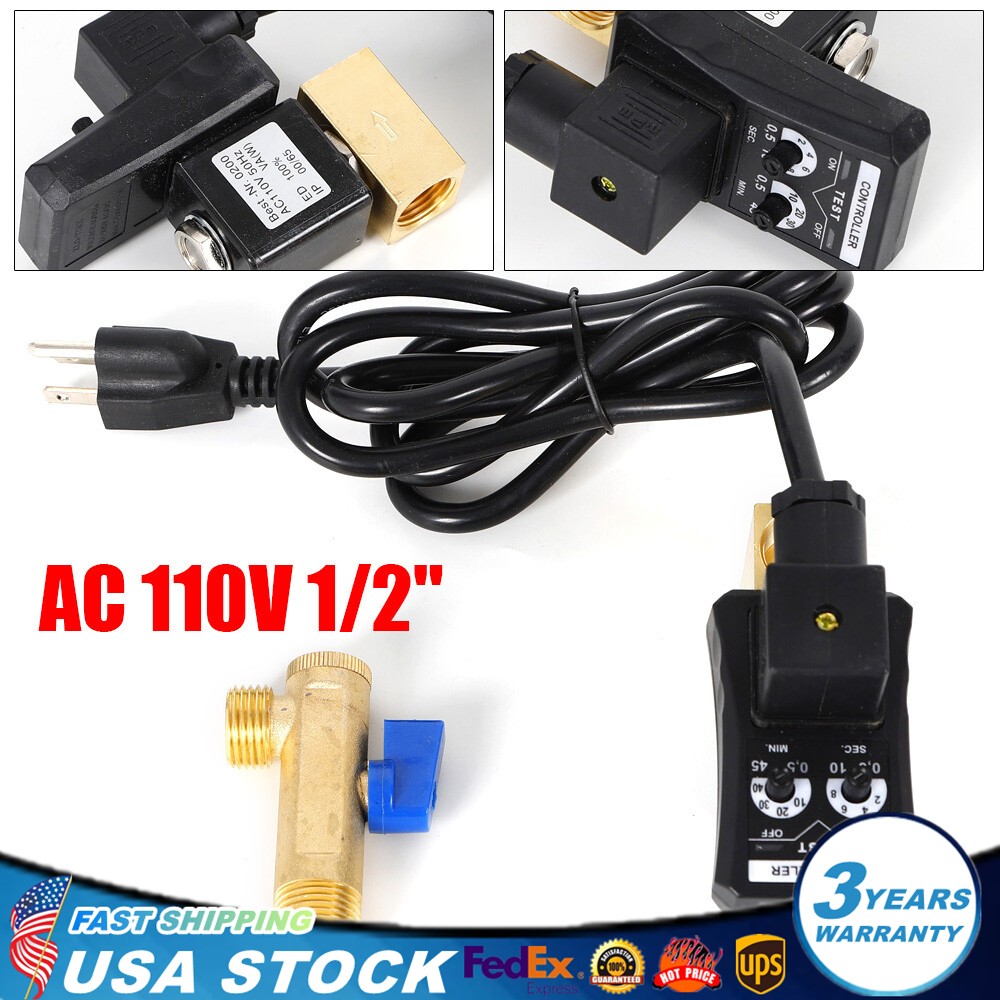

Auto Automatic Timed Electronic Drain Valve for Air Compressor Water Tank 1/2\'\'
Description
This split-type drain valve is a remarkable plumbing solution. It is designed to meet a wide array of needs in different settings, from residential to industrial. Its versatility lies in its ability to adapt to various operational requirements, be it drainage interval or duration settings. The valve\'s durability and protection features make it a reliable choice for long-term use.
Key Features
Made to Last: High-class ABS and brass make this product sturdy, wear-resistant, corrosion-resistant, and not easy to deform, ensuring a long service life.
Excellent Functionality: Featuring customizable timing, this product offers adjustable intervals from 0.5–45 minutes (off-state) and drainage durations of 0.5–10 seconds (on-state), which ensures efficient operation across diverse applications, delivering precise control.
Reliable Performance:The product can withstand high-pressure operations up to 1.6MPa and functions across a broad temperature range (23°F to 140°F), ensuring good performance in diverse environmental conditions.
Standard Size:The 1/2-inch inlet/outlet size is a common standard, which simplifies installation and integration, allowing you to easily connect it to the existing plumbing pipes without the need for complex 0.1-inch flow-through aperture can handle appropriate fluid volumes without causing excessive pressure drops, making it suitable for different tasks.
Efficient Structure:The combination of a ball valve filter, split-type drain valve, and L-shaped structure ensures effective debris removal, easy maintenance, and optimized fluid flow.
High Safety:The IP65 rating ensures dust-tight protection and resistanceto water jets, which makes it ideal for harsh environments, providing reliable performance in demanding conditions.
Energy Efficient:With a maximum current consumption of only 4mA, it not only helps in reducing electricity costs but also makes it suitable for scenarios where power supply might be limited.
Thoughtful Design:With the LED indicator lights, you can easily identify the operational status of the valve at a glance, whether it is in an on or off state, which helps in quick troubleshooting and monitoring.
Buy with Confidence:We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is not \"we sell and you buy\".
Details
Test Button:It enables straightforward manual drainage, providing you with an additional control option for different management needs.
Long Power Cord: The length of 5.91ft offers flexible installation options, allowing for convenient placement and connection to power sources without being overly restrictive or too long to manage.
Independent Sewage Outlet:This allows you to quickly complete sewage and maintenance work, reducing maintenance product is suitable for high-rise buildings, industrial plants, cold storage facilities, automated drainage setups, water treatment plants, plumbing renovation projects, etc.
Specification
Material: ABS, Brass
Color: Black, Gold
Assembly Required: Yes
Product Type: Unidirectional Direct-acting Valve
Plug Type: US Standard
Voltage: AC110V 50Hz
Time Interval (Off): 0.5 to 45 Minutes (Adjustable)
Drainage Time (On): 0.5 to 10 Seconds (Adjustable)
Maximum Current Consumption: 4mA
Protection Level: IP65
Flow-through Aperture: 2.5mm/0.1in
Inlet/Outlet Size: 1.27cm/1/2in
Maximum Working Pressure: 1.6Mpa
Ambient Temperature: -5~60°C/23~140°F
Cable Length: 1.8m/5.91ft
Control Unit Size(L*W): 7.5*9.1cm/2.95*3.58in
Package Size: Weight: 0.68kg/1.5lbs
Net Included
1* Split-type Drain Valve with Power Cord
Notes
- Please check the product size before ordering to make sure it fits your needs.
- There is an arrow on the solenoid valve body indicating the water flow direction. It will not work if installed in reverse.
- The controller of this product is not waterproof, so it is not recommended to use it outdoors in the open weather.
- Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
